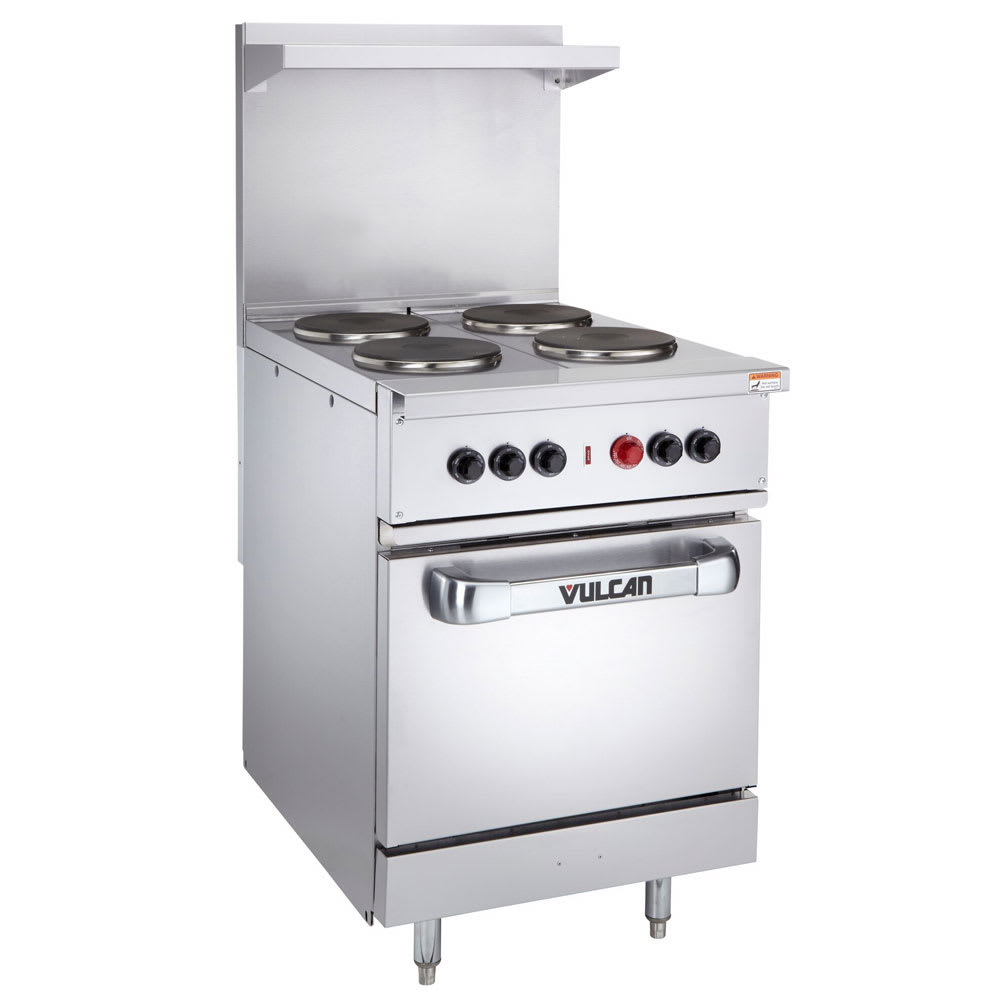

Vulcan EV24-S-4FP-480 24" 4 Sealed Element Electric Range, 480v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 207-EV24S4FP4803 • MPN: EV24-S-4FP-480 3
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $6,110.00

Selected Voltage: 480V, 3 Phase

Image may not depict product color, inclusions or accessories.

Vulcan EV24-S-4FP-480 Description


The Vulcan EV24-S-4FP-480 electric range is perfect for preparing delicate products since the four 912-inch French plates provide improved heat control. The heat can be adjusted to four positions with infinite heat control switches. To reduce the risk of burns and maintain operator safety, the control knobs will not heat up with the range top. A pull-out, stainless steel crumb tray easily holds most food particles since it covers the full width of the unit.

Operating at temperatures between 200 and 500 degrees Fahrenheit, the standard oven provides quality browning of product with the heat control. Full-size sheet pans fit front to back on the rack. Since there are three rack positions, there are versatile cooking options. The 6-inch, stainless steel legs on the Vulcan EV24-S-4FP-480 electric range adjust for stability on most floors. Durability is added with the fully welded construction of the aluminized steel frame.

Product Details

  • Ideal for simmering and cooking delicate products with (4) 912-in. dia. French plates
  • Infinite heat control switches adjust to 4 positions for flexible cooking
  • Control knobs do not heat up with the range
  • Pull-out stainless steel crumb tray collects food particles and makes it easy to throw away
  • 6-in. stainless steel legs adjust for stability on most floors
  • Stainless steel construction of the shelf, backriser, front, and sides resists corrosion and minor damage
  • Aluminized steel frame is fully welded to provide durability
  • 480 V/60 Hz/3 ph, 13 kW, 47 A
  • Overall Dimensions: 24 in. W x 34 in. D x 58 in. H
  • cULus listed; NSF certified

Standard Oven

  • Operates at temperatures from 200-500 degrees F
  • Heat control provides quality browning of product
  • 1 rack can be placed in 3 positions
  • 18-in. x 26-in. full-size sheet pans fit front to back
  • Door has a heavy-duty construction for commercial establishments
  • Door hinge and spring is integrated to make it easy to open and close
  • Interior Dimensions: 20 in. W x 2612 in. D x 14 in. H

Restaurant Range, electric, 24", (4) 2.0 kW French hot plates, 9-1/2" solid cast iron, infinite controls, standard oven, (1) rack, stainless steel front, sides, single deck high shelf & 6" legs, 13.0 kW, 480v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan EV24-S-4FP-480 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Base Space Saver Oven
Heat Electric
Range Configuration Elements
Width (in) 24"
Warranty Limited 1-year
Hertz 60
Voltage 480
Phase 3
Product Electric Range
Product Type Cooking Equipment
Weight 325.00
Vulcan EV24-S-4FP-480 Certifications
  • UL
  • NSF
