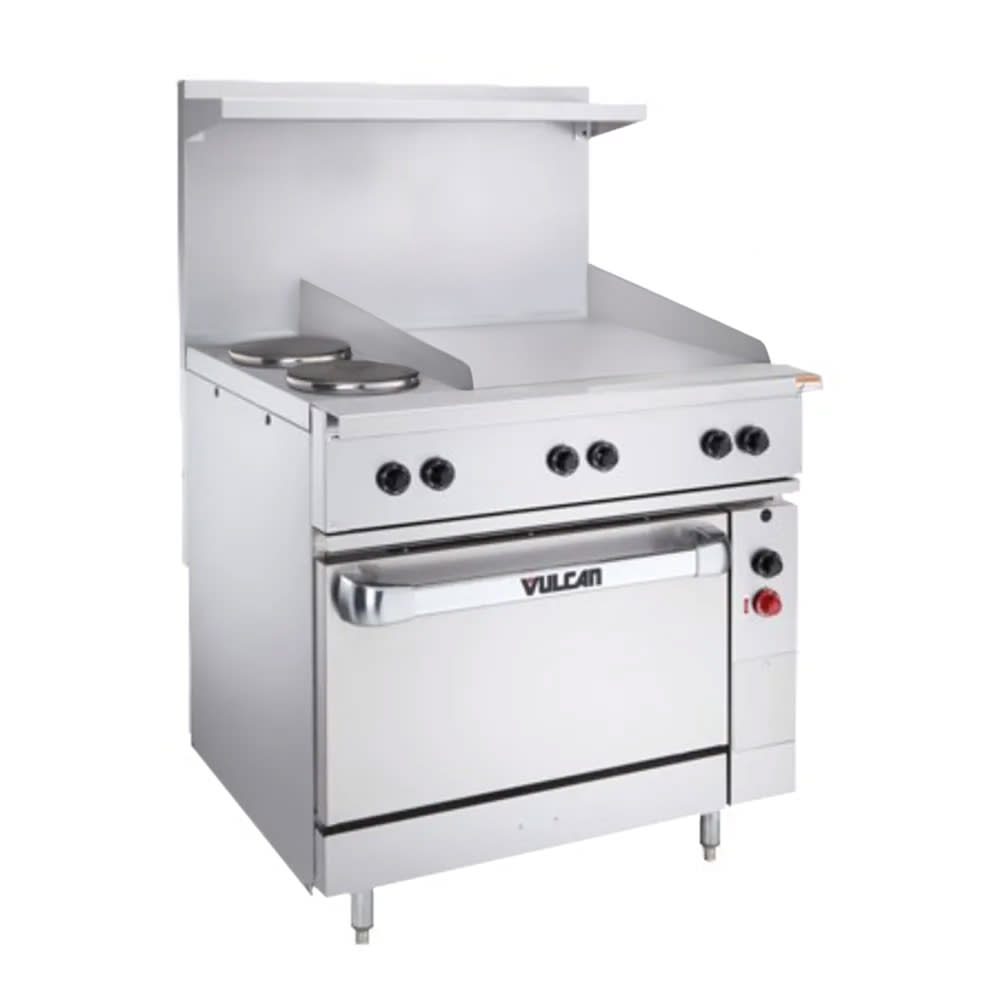

Vulcan EV36S-2FP24G480 36" EV Series Electric Range w/ (2) French Hot Plates & (1) Griddle, 480v/1ph/3ph

Ideal for high-volume cooking tasks, the Vulcan EV36S-2FP24G480 electric range features a standard oven with a top browning control and a range with hot plates and a griddle. The oven's interior accommodates 18-inch by 26-inch pans loaded in either direction, and the adjustable thermostat ranges from 200 to 500 degrees Fahrenheit. This unit measures 36 inches wide by 34 inches deep by 58 inches high and are mounted on 6-inch legs for floor clearance.

The Vulcan EV36S-2FP24G480 electric range is built on a fully MIG welded aluminized steel frame for long-term durability. The two solid cast iron plates offer responsive heat, while the 24-inch polished steel griddle features thermostatic controls for accurate zone cooking. A full-width pull-out crumb tray simplifies maintenance between shifts.

Product Details

• From the EV series
• Stainless steel front, sides, back riser, shelf, and legs
• Fully MIG welded aluminized steel frame
• (2) 9¹⁄₂-in. round hot plates
• 24-in. wide polished steel griddle
• Infinite control knobs for hot plates
• Cool-to-the-touch control knobs
• Thermostatic controls for each 12-in. section of the griddle
• Full-width stainless steel crumb tray
• Mounted on 6-in. legs
• Thermostat range: 200–500 degrees F

Standard Oven

• Top browning control
• 1 oven rack with 3 rack positions
• Holds 18-in. x 26-in. sheet pans

Dimensions & Utilities

• Overall: 36 in. W x 34 in. D x 58 in. H
• Interior: 26¹⁄₂ in. W x 26³⁄₈ in. D x 14 in. H
• 480 V/60 Hz/1-3 ph

Product Features

*Free shipping on Vulcan EV36S-2FP24G480 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 36", (2) 2.0 kW French hotplates, infinite controls, (1) 24" griddle, polished steel plate, thermostatic controls, standard oversized oven, includes (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 480v, cCSAus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV36S-2FP24G480 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
