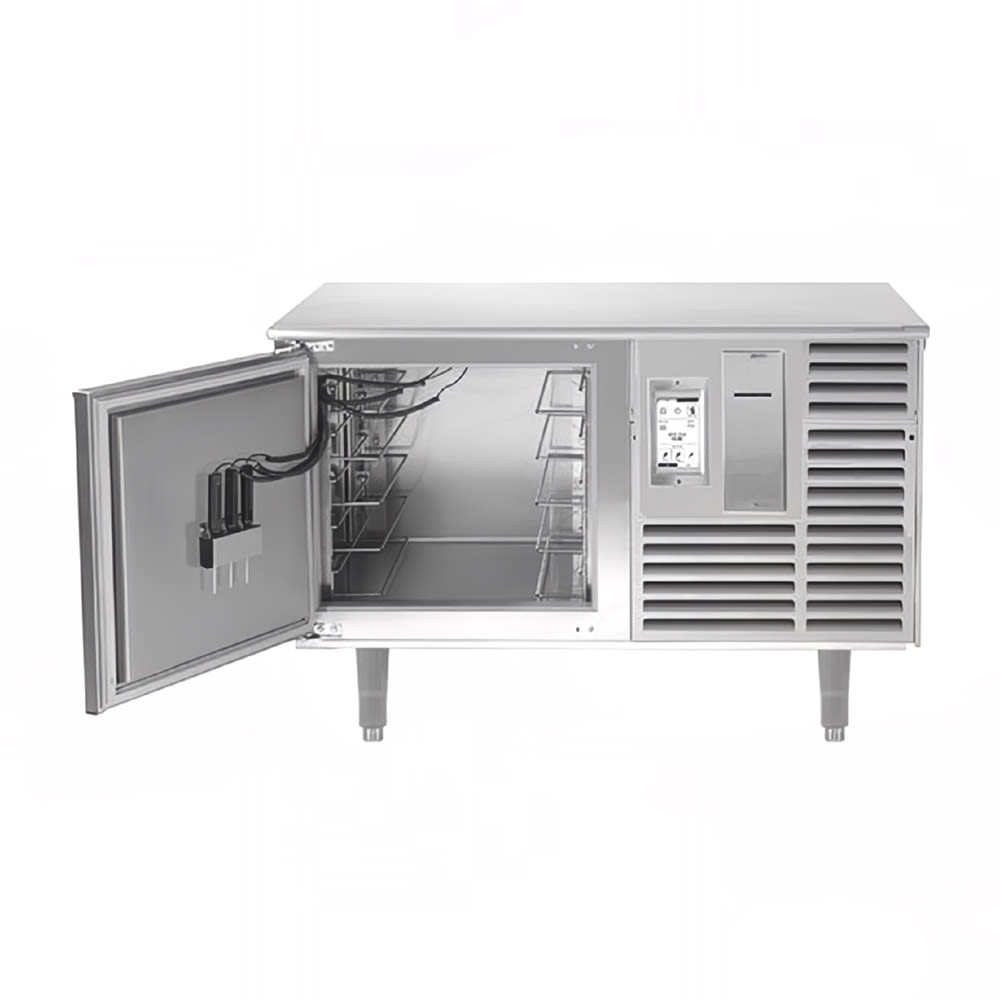

Traulsen TBC5-51 54" Undercounter Blast Chiller - (10) Pan Capacity, 115v/1ph

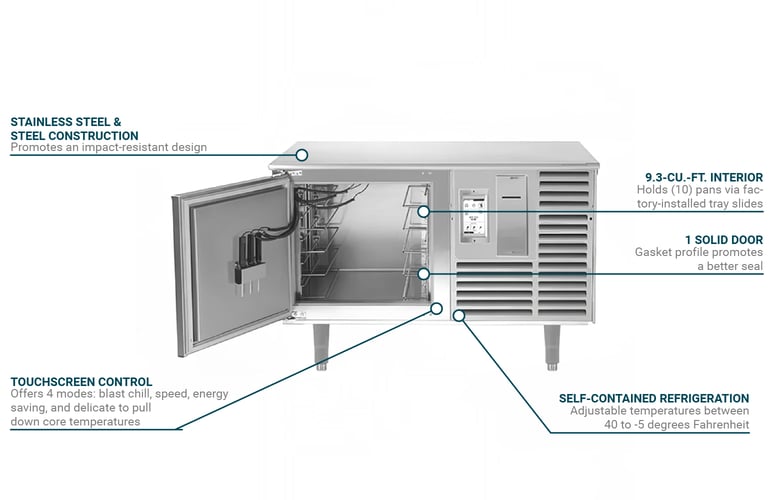

The Traulsen TBC5-51 blast chiller is compact to fit under counters in close-quarters operations. This unit, featuring a size of 54 inches wide by 34⁷/₈ inches deep by 33³/₄ inches high, has five factory-installed tray slides in the interior. This allows the modest cabinet size to hold ten 12-inch by 20-inch by 2¹/₂-inch pans. The interior is accessed using the left-hinged door, which has a holder for three temperature probes and will stay open past 120 degrees. The interior, exterior, and bullnose worktop are constructed of stainless steel, while this heavy-duty unit is supported by 6-inch legs.

This Traulsen TBC5-51 blast chiller is convenient to operate through the front-placed touchscreen. Users can select one of four cycles: blast chill, speed, energy saving, and delicate. These cycles run in automatic or manual mode; with the top-mounted refrigeration system, this unit pulls products down between 40 to -5 degrees Fahrenheit. An audible alarm alerts users at the end of the cycle’s timespan. It records HACCP data through an on-board printer or via a 90-day storage system.

Product Details

• 9.2-cu.-ft. interior space
• 5 adjustable universal tray slides (factory installed)
• Supports (10) 12-in. x 20-in. x 2¹/₂-in. pans
• 100-lb. maximum capacity
• Fitted with 1 left-hinged door (features cylinder lock)
• Long-life EZ-clean gaskets
• Door stays open past 120 degrees
• Anti-condensate heaters featured behind doors
• Stainless steel interior and stainless steel exterior
• Stainless steel bullnose worktop
• Mounted on 6-in. legs
• 2-in.-thick high-density foamed-in-place polyurethane insulation

Refrigeration System

• High-capacity, self-contained refrigeration system is top mounted
• Non-flammable R-448A refrigerant
• Efficient and advanced forced-air system
• Refrigeration system includes thermostatic expansion valve, high-humidity evaporator coil, high-speed evaporator fan, air-cooled compressor, and a hot-gas defrost
• Simple-to-clean front-facing condenser
• Condensate evaporator is nonelectric

Touchscreen Controls

• 4 modes: blast chill, speed, energy saving, and delicate modes
• Water resistant and protected with a heavy-gauge stainless steel bezel
• Records HACCP data using 3 temperature probes
• On-board printer
• 90-day memory storage
• Customizable settings
• Audible alarm after cycle completion

Dimensions & Utilities

• 54 in. W x 34⁷/₈ in. D x 33³/₄ in. H
• 16 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Traulsen TBC5-51 within the 48 contiguous states.

From The Manufacturer

Spec-Line Undercounter Blast Chiller with EPICON Control, 9.2 cu. ft., self-contained refrigeration, (1) left hinged door, chills (100 lbs) 160°F to 40°F /180 minutes, (4) chill settings, (5) 18" x 26" pans or (10) 12" x 20" x 2-1/2" pans, touch screen control, USB port, auto defrost, (3) removable food probes, stainless steel interior, stainless steel exterior (sides, front & bullnose top), 6" legs, non-flammable R-448A refrigerant, 3/4 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
