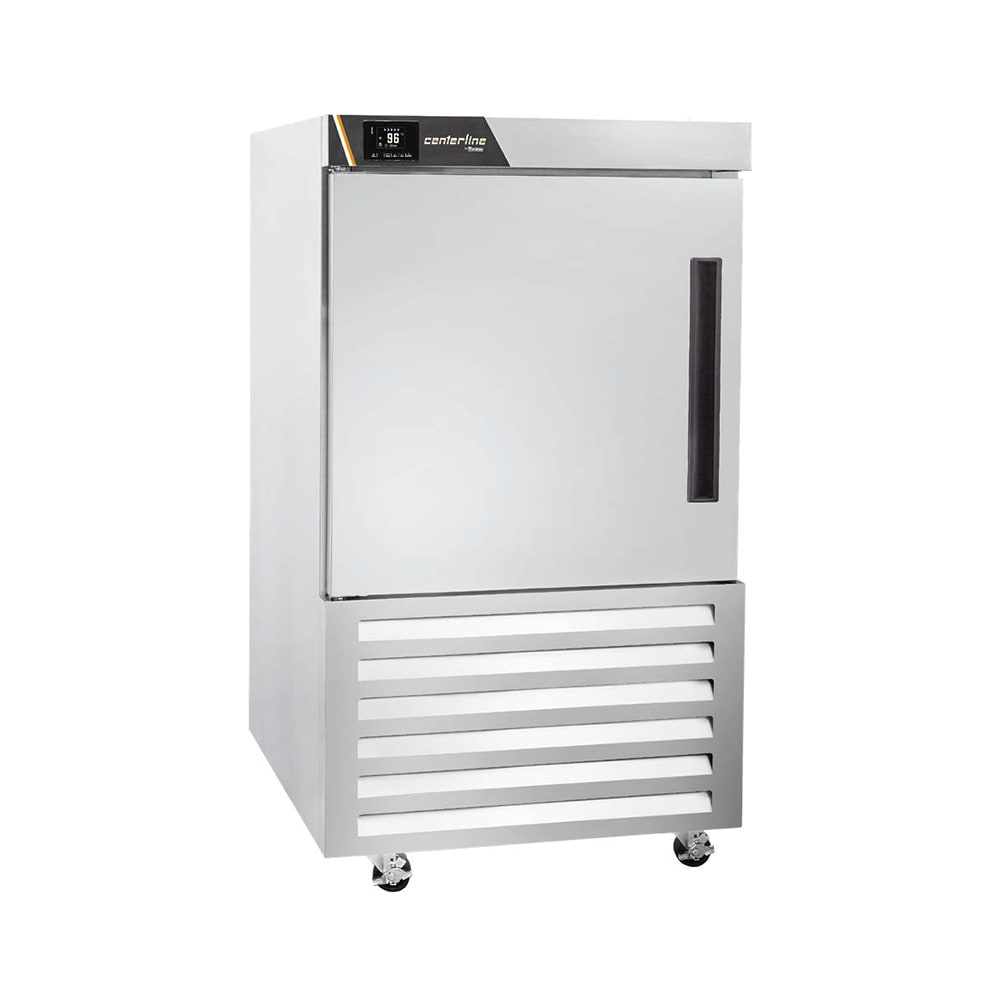

Centerline by Traulsen CLBC7-R 34 3/4" Floor Model Blast Chiller - (7) Pan Capacity, 208-230v/1ph

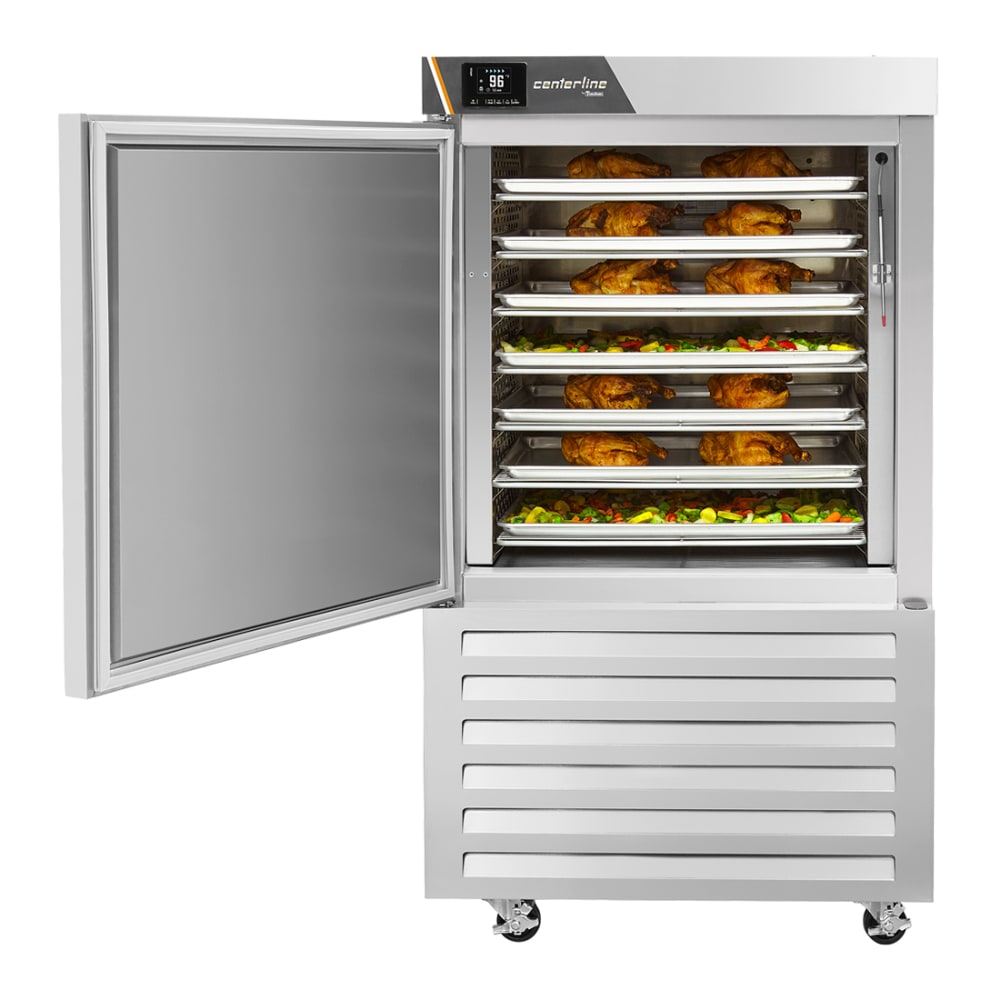

The Centerline by Traulsen CLBC7-R reach-in blast chiller is a 34³⁄₄-inch-wide by 38¹³⁄₁₀₀-inch-deep by 61¹⁴⁄₂₅-inch-high floor model positioned on 4-inch casters. For lasting resiliency and rust and corrosion resistance, its front, sides, door, and interior are heavy-gauge stainless steel, while its exterior cabinet top, back, and bottom are heavy-gauge galvanized steel. Inside the unit, the seven epoxy-coated shelves accommodate seven 18-inch by 26-inch pans or (14) 12-inch by 20-inch pans. To ease pan insertion and removal, its solid door remains open past 120 degrees, and though it comes right hinged, this can be reversed in the field if desired. Anti-condensate heaters positioned behind the door opening reduce the moisture that accumulates when hot foods are stored in a cool environment.

The Centerline by Traulsen CLBC7-R reach-in blast chiller's high-capacity, self-contained refrigeration system uses a non-flammable, environmentally friendly R-448A refrigerant and an advanced air circulation system for rapid chilling of hot food. In 120 minutes, this unit can chill 84 pounds of 160-degree-Fahrenheit to 40 degrees Fahrenheit, quickly moving precooked product through the danger zone. As menus change, operators can use the 2⁴⁄₅-inch digital control to choose between hard- or soft-chill modes, adjust cycle time, and monitor temperature using the food probe. This high-capacity refrigeration system maintains set temperatures between 32 and 40 degrees Fahrenheit, and 2-inch-thick polyurethane insulation is foamed in place in the cabinet and door. For simplified maintenance, this unit features an accessible condenser coil and automatic defrost system.

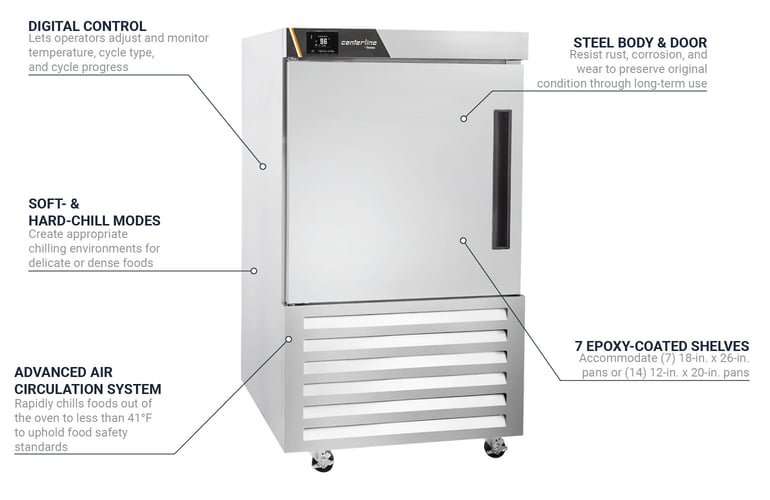

Product Details

• Pan capacity: (7) 18-in. x 26-in. pans or (14) 12-in. x 20-in. pans
• Net capacity: 11.39 cu. ft.
• Reach-in floor unit
• Heavy-gauge stainless steel front, sides, interior, and door
• Heavy-gauge galvanized steel exterior cabinet top, back, and bottom
• 2-in.-thick high-density, non-CFC-polyurethane insulation is foamed in place
• Field-reversible, right-hinged door with stay-open design
• Anti-condensate heaters behind door opening
• 7 epoxy-coated shelves positioned on pilasters and clips
• (4) 4-in. casters
• Water-resistant 2⁴⁄₅-in. digital display with 5 capacitive keys
• Food probe
• Target temperatures can be set between 32 and 40 degrees F
• Hard- or soft-chill mode options
• Can chill 56 lbs. of 160-degree-F food to 40 degrees F in 90 minutes
• Can chill 84 lbs. of 160-degree-F food to 40 degrees F in 120 minutes

Refrigeration System

• High-capacity, self-contained design
• Non-flammable R-448 refrigerant is environmentally friendly
• 30-oz. refrigerant charge
• Advanced air circulation system rapidly chills hot food
• Front-facing condenser coil is accessible
• Automatic defrost mechanism
• 6,020 BTU

Dimensions & Utilities

• 34³⁄₄ in. W x 38¹³⁄₁₀₀ in. D x 61¹⁴⁄₂₅ in. H
• 11 A, 1¹⁄₂ HP
• 208-230 V/60 Hz/1 ph, includes 3 feed wires with ground and NEMA 6-20P plug

Product Features

*Free shipping on Centerline by Traulsen CLBC7-R within the 48 contiguous states.

From The Manufacturer

Centerline by Traulsen Blast Chiller, reach-in, self-contained refrigeration, (7) 18" x 26" or (14) 12" x 20" pan capacity, chill capacity yield of 56 lbs. from 165° to 40°F in approximately 90 minutes, standard food probe, stay-open door, stainless steel front, sides, door & interior, (4) 4" casters, right hinged solid door (field reversible), R448A refrigerant, 1-1/2 HP, 208-230v/60/1-ph, 11 amps, NEMA 6-20P Plug, cETLus, ETL-Sanitation, designed & assembled in the US

*Image may not depict product color, inclusions or accessories.

Centerline by Traulsen CLBC7-R Specifications

Spec Attribute	Spec Value
Manufacturer	Centerline by Traulsen
Compressor Location	Bottom
Depth (in)	38.13
Height (in)	61.56
Hertz	60
NEMA	6-20P
Pan Capacity	7
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Refrigerant	R448A
Special Features	Casters Included - Uninstalled
Type	Floor Model
Voltage	208/230
Warranty	6-year Parts & Labor; 7-year Compressor
Width (in)	34.75
Weight	524.00
