Centerline by Traulsen CLBC4-R 54 1/8" Undercounter Blast Chiller - (4) Pan Capacity, 115v

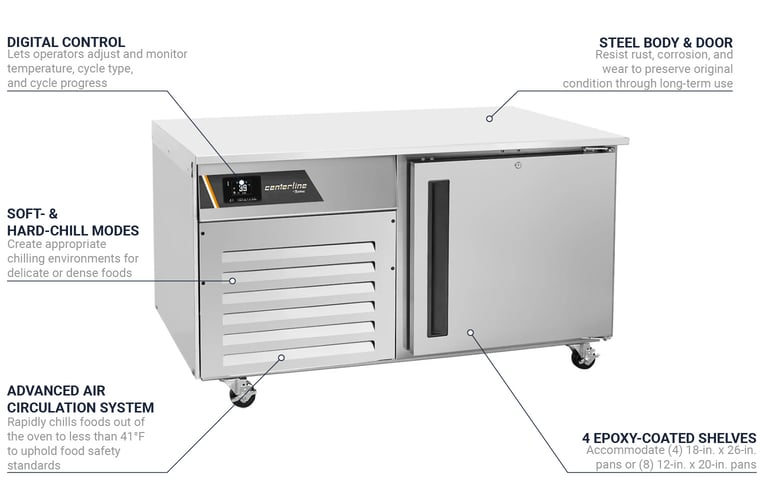

To fit beneath a counter, the Centerline by Traulsen CLBC4-R self-contained blast chiller measures 54¹³⁄₁₀₀ inches wide by 35⁴⁷⁄₅₀ inches deep by 32 inches high and is positioned on 4-inch casters to ease mobility for maintenance and cleaning. While its top, front, interior, and door are made of heavy-gauge stainless steel, its exterior cabinet back and bottom are heavy-gauge galvanized steel; both of these resilient, rust- and corrosion-resistant metals are simple to wipe clean. The cabinet and door are insulated with 2-inch-thick, high-density, non-CFC, foamed-in-place polyurethane insulation to reduce energy loss and preserve cool temperatures. This undercounter unit's right-hinged solid door stays open past 120 degrees so employees can load pans with two hands, and to minimize moisture buildup, anti-condensate heaters are situated behind the door opening. Four epoxy-coated wire shelves mounted on clips and pilasters can support four 18-inch by 26-inch pans or eight 12-inch by 20-inch pans.

The Centerline by Traulsen CLBC4-R undercounter blast chiller rapidly and properly cools food through the danger zone, preventing long exposure to temperatures from 41 to 140 degrees Fahrenheit that can initiate bacterial growth. Its self-contained refrigeration system uses non-flammable, environmentally friendly R-448A refrigerant and an advanced air circulation system to chill 48 pounds of food from 160 degrees Fahrenheit to 40 degrees Fahrenheit in 120 minutes. As different products require chilling, staff can use the digital control to choose from a soft- or hard-chill cycle, set cycle temperature to a level between 32 and 40 degrees Fahrenheit, and modify cycle times. A corresponding food probe relays accurate information to the digital display so users can monitor cycle progress. To simplify maintenance, this unit is built with an automatic defrost system and an accessible, front-facing condenser coil.

Product Details

• Pan capacity: (4) 18-in. x 26-in. pans or (8) 12-in. x 20-in. pans
• Net capacity: 9.26 cu. ft.
• Undercounter configuration
• Heavy-gauge stainless steel front, top, interior and door
• Heavy-gauge galvanized steel exterior cabinet back and bottom
• 2-in.-thick, high-density, non-CFC polyurethane insulation is foamed in place
• Right-hinged door stays open past 120 degrees
• Anti-condensate heaters behind door opening
• 4 epoxy-coated shelves positioned on pilasters and clips
• (4) 4-in.-tall casters
• Water-resistant 2⁴⁄₅-in. digital display with 5 capacitive keys
• Food probe monitors cycle progress
• Target temperatures can be adjusted from 32 to 40 degrees F
• Hard- and soft-chill modes
• Can chill 32 lbs. of 160-degree-F food to 40 degrees F in 90 minutes
• Can chill 48 lbs. of 160-degree-F food to 40 degrees F in 120 minutes

Refrigeration System

• High-capacity, self-contained design
• Environmentally friendly, non-flammable R-448 refrigerant
• 24-oz. refrigerant charge
• Advanced air circulation system for rapidly chilling hot food
• Front-facing condenser coil
• Automatic defrost
• 4,445 BTU

Dimensions & Utilities

• 54¹³⁄₁₀₀ in. W x 35⁴⁷⁄₅₀ in. D x 32 in. H
• 16 A, 1 HP
• 115 V/60 Hz/1 ph, includes 3 feed wires with ground and NEMA 5-20P plug

Product Features

*Free shipping on Centerline by Traulsen CLBC4-R within the 48 contiguous states.

From The Manufacturer

Centerline by Traulsen Blast Chiller, Undercounter, self-contained refrigeration, (4) 18" x 26" or (8) 12" x 20" pan capacity, chill capacity yield of 32 lbs. from 165° to 40°F in approximately 90 minutes, standard food probe, stay-open door, stainless steel front, sides, door & interior, (4) 4" casters, right hinged solid door, R448A refrigerant, 1 HP, 115v/60/1-ph, 16 amps, NEMA 5-20P Plug, cETLus, ETL-Sanitation, Designed & Assembled in the US

*Image may not depict product color, inclusions or accessories.

Centerline by Traulsen CLBC4-R Specifications

Spec Attribute	Spec Value
Manufacturer	Centerline by Traulsen
Compressor Location	Left
Depth (in)	35.94
Height (in)	32
Hertz	60
NEMA	5-20P
Pan Capacity	4
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Refrigerant	R448A
Special Features	Casters Included - Uninstalled
Type	Undercounter
Voltage	115
Warranty	6-year Parts & Labor; 7-year Compressor
Width (in)	54.13
Weight	492.00
