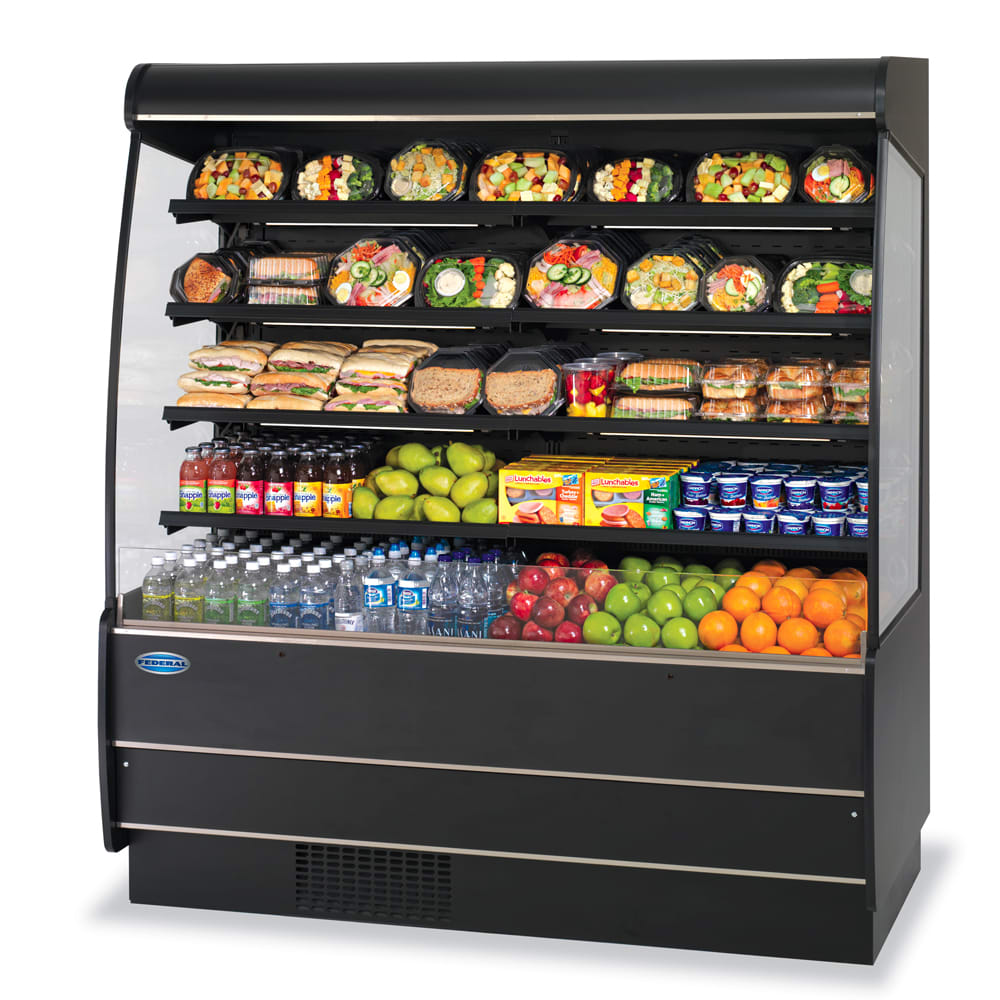

Federal RSSM-578SC 59" Vertical Open Air Cooler w/ (5) Levels, 120/208 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 204-RSSM578SC • MPN: RSSM-578SC
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $9,512.36
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

Federal RSSM-578SC Description


The Federal RSSM-578SC self-serve refrigerated merchandiser has a wide, 59-inch design with four-tiered shelves that give you ample room to display food or drinks, increasing impulse sales. The black shelves are adjustable and have price tag molding to make it easy for you to place your price tags quickly. Shielded lights provide more visibility and improve the presentation of products. The stainless steel display deck is corrosion resistant, and the glass interior end panels provide visibility.

A condensate evaporator creates a completely self-contained system and is insulated with high density urethane foam to retain cold air. The solid state timer provides automatic defrost to ensure the Federal RSSM-578SC self-serve refrigerated merchandiser runs properly, and there is an energy saving night curtain that will allow you to keep products cold over night without having the machine at full strength. The cabinet’s rear must be at least 6 inches away from the walls, and it must be in a room that will not surpass 55 percent relative humidity and 75 degrees F ambient temperature.

Product Details

  • Black, 2 tiered metal shelves are adjustable to be flat or slanted and come with price tag molding
  • Shielded lights protect products and provide visibility
  • Night curtain helps you save energy by keeping the unit from running at full strength
  • Refrigeration system easily pulls out from the rear for easy and quick servicing
  • Condensate evaporator helps create a self-contained refrigeration system
  • 38-40 degrees F temperature range
  • Temperature will vary when the air curtain is disrupted
  • Can line up with multiple units
  • Must be at least 6 in. away from the wall
  • Must be in a room that will not surpass 55 percent relative humidity and 75 degrees F ambient temperature
  • 120, 208-240 V/60 Hz/1 ph, 1 HP, 15 A
  • Overall Dimensions: 5914 in. W x 3214 in. D x 78 in. H
  • UL and UL-EPH listed

Cabinet Construction

  • Black metal front grill and galvanized steel back
  • Corrosion resistant display deck is made from stainless steel
  • Glass and black interior end panels make products easy to see from different angles
  • Black interior back panel makes products stand out
  • Fully insulated with urethane, high-density foam that retains cold air

Specialty Display High Profile Self-Serve Refrigerated Merchandiser (59”L x 35”W x 78”H), self contained refrigeration with condensate evaporator, energy saving night curtain, top light, four tiers of adjustable black metal shelves, stainless steel display deck, black interior, tempered glass ends, choice of laminate, designed for continuous lineups, UL safety and UL sanitation approved, 1 HP. Contact customer service for other available color options.

Condensate Evaporator Assembly – Required if No drain available (field install kit, requires a dedicated 120A/15A circuit required)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Federal RSSM-578SC Specifications

PDF Spec Sheet
Manufacturer Federal
Color Black
Compressor Type Self Contained
Design Vertical
Height (in) 78
Number of Levels 5
Specialty Options Adjustable Shelf Angle
Specialty Options Glass Sides
Specialty Options Night Curtain Included
Width (in) 59
Width (in) Range 41 - 60 in
Hertz 60
Voltage 120/208/240
Phase 1
Product Open Air Cooler
Product Type Commercial Refrigeration
Weight 1160.00
