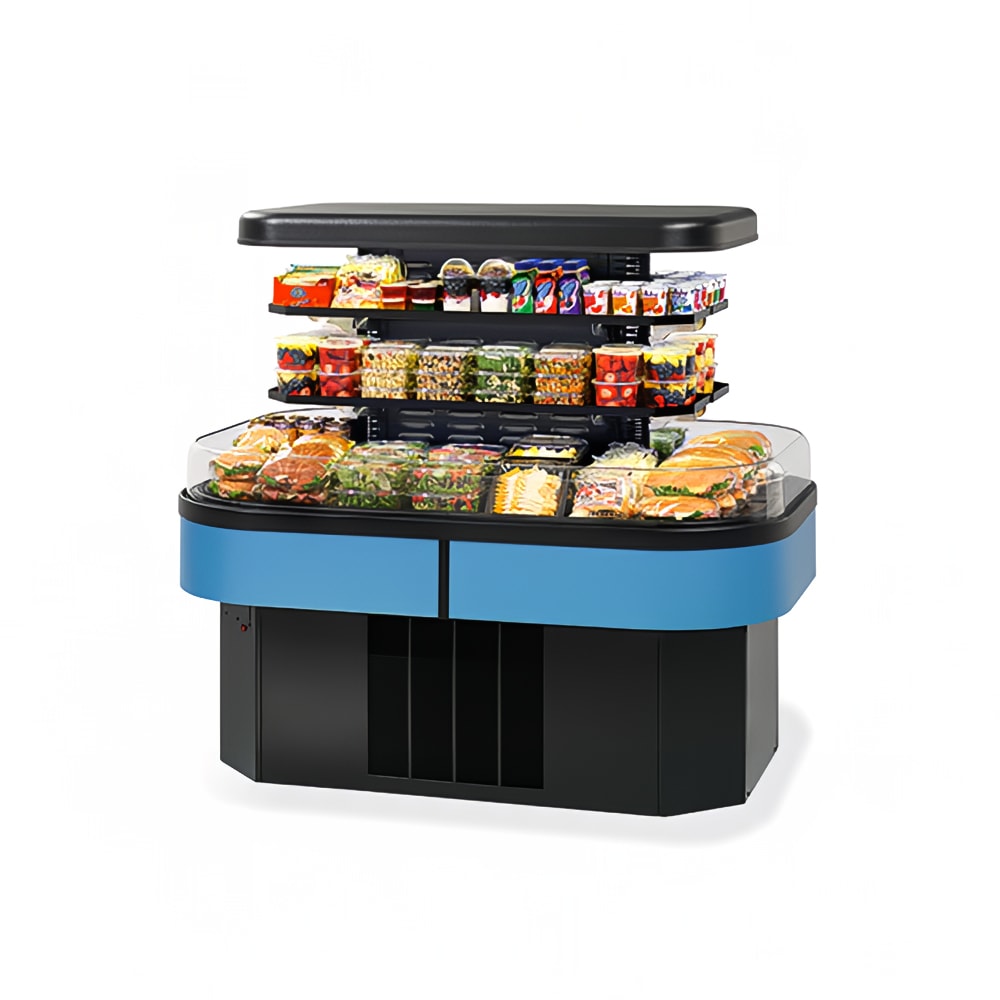

Federal IMSS60SC-3 60" Horizontal Island Open Air Cooler w/ 4 Levels, 208-230v/1ph
Typically ships in 3 - 4 weeks
$20,600.09 /Each
Federal IMSS60SC-3 Description
The Federal IMSS60SC-3 refrigerated island merchandiser is perfect for grocery stores, convenience stores, and more. The island design allows customers to see product from various angles instead of just one. Cold air is retained since the cabinet is insulated with high-density foam. Three-tiered, black, adjustable, metal shelves hold products, and the LED top and undershelf lighting makes them more visible to encourage impulse buying. There is a conveniently located light switch to conserve energy when your business is closed.
A self-contained refrigeration system is achieved with the condensate evaporator. The evaporator coil compartment is insulated and resistant to corrosion. An average temperature of 40 degrees Fahrenheit is maintained with the refrigeration controls and operated with easy to access temperature controls. If the air curtain is interrupted, the temperature will vary. The Federal IMSS60SC-3 refrigerated island merchandiser is designed to operate in an environment that will not exceed 75 degrees Fahrenheit ambient temperature or 55 percent relative humidity.
- 40 degrees F is maintained by the refrigeration controls
- Maintains cold temperatures with R449A refrigerant
- Self-contained system is possible with the provided condensate evaporator
- Evaporator coil compartment is corrosion resistant and insulated
- LED top and undershelf lighting makes products more visible
- Light switch and temperature control are easy to access
- Case temperature varies if the air curtain is interrupted
- Designed to operate in an environment that does not exceed 75 degrees F temperature and 55 percent relative humidity
- 208-230 V/60 Hz/1 ph, 1 1⁄2 HP, 20 A
- Overall Dimensions: 60 in. W x 40 in. D x 60 in. H
- High-density foam insulates the entire cabinet, retaining cold air
- 3 tiered, black, adjustable, metal shelves hold products
- Black metal base, interior, and canopy
- Air deflector is curved
- Feet are adjustable to stabilize on uneven floors
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Federal IMSS60SC-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Federal |
| Air Exhaust | Back |
| Color | Black |
| Compressor Location | Bottom |
| Compressor Type | Self Contained |
| Depth (in) | 40 |
| Design | Horizontal |
| Height (in) | 60 |
| Hertz | 60 |
| Number of Levels | 4 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R449A |
| Series | IMSS Series |
| Service Type | Self Service |
| Special Features | LED Lighting |
| Use | Packaged Goods |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor; 5-year Compressor |
| Width (in) | 60 |
| Weight | 800.00 |
WARNING: Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The ambient room temperature must not exceed 75°F.
Yes, it uses an air curtain to help contain refrigerated air.
Yes, the shelves can be repositioned for different product heights.
It has 4 display levels for merchandising.
It uses an adjustable temperature control.
It has a self-contained refrigeration system.
A condensate evaporator handles condensate water.
The refrigeration system uses R449A.
It exhausts warm air from the back.
