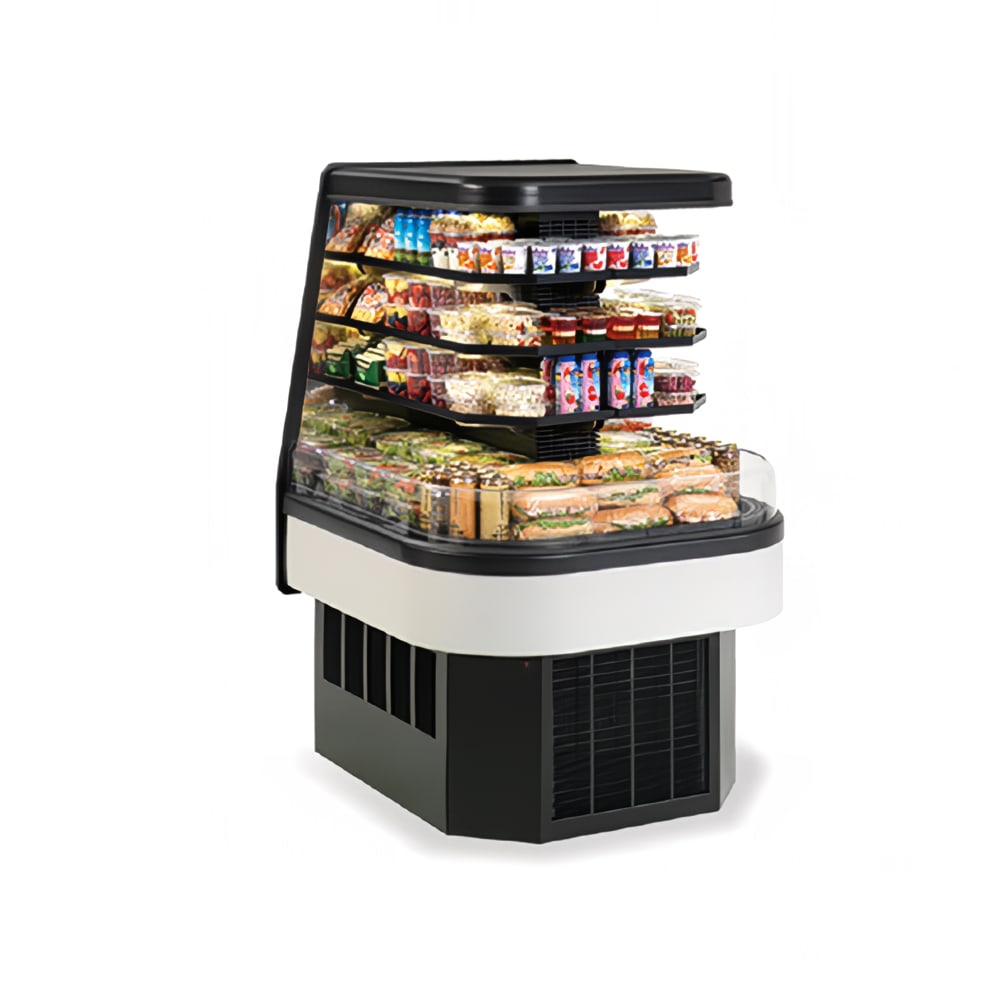

Federal ECSS40SC 40" Vertical End Cap Open Air Cooler w/ (4) Levels, 208-230v/1ph

KaTom #: 204-ECSS40SC • MPN: ECSS40SC
  • 204-ECSS40SC Primary Thumbnail Image

Typically ships in 3 - 4 weeks

$19,000.00 /Each

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Garren Anderson User Image
Ask a Foodservice Equipment Specialist

Federal ECSS40SC Description

For gas stations or grocery stores, the Federal ECSS40SC refrigerated end-cap merchandiser measures 40 inches long by 40 inches deep by 60 inches high and features a self-serve design that takes strain off employees. This four-tiered unit is built with a black metal base, interior, canopy, and shelves for cohesive presentation, and operators can select a laminate color when ordering. Its two metal shelves can be raised or lowered to enhance presentation and accommodate bottled drinks, packaged sandwiches, and other snacks. LED top and under-shelf lighting illuminates displayed contents to grab customer attention and increase impulse buys, and to ensure stability on irregular flooring, operators can modify its adjustable leg levelers.

The Federal ECSS40SC self-service merchandiser is a self-contained refrigeration unit with a condensate pump and a simple-to-clean, rust-resistant evaporator coil compartment that streamlines operation and maintenance. This system uses R449a refrigerant and maintains temperatures between 38 and 40 degrees Fahrenheit. To preserve these temperatures, it's insulated with high-density foam. A curved air deflector on the bottom tier circulates cool air in front of products while helping prevent pests and dirt from entering the unit. Staff can monitor temperatures with the thermometer and modify these temperatures as needed with the accessible temperature control.

  • Part of the Specialty Display series
  • Display area: 17.6 sq. ft.
  • Floor model, end-cap configuration
  • Self-serve design
  • Black metal base, interior, and canopy
  • Laminate color can be selected by operators
  • 3 adjustable black metal shelves
  • Curved air deflector
  • LED top and under-shelf lighting
  • Accessible light switch
  • Adjustable leg levelers
  • Black trim

  • Self-contained
  • Includes condensate pump
  • Rust-resistant insulated evaporator coil compartment
  • Temperature range: 38-40 degrees F
  • Adjustable temperature control
  • Thermometer
  • R449a refrigerant
  • For maximum ambient environments of 75 degrees F and 55 percent relative humidity
  • Average product temperature: 38 degrees F

  • 40 in. W x 40 in. D x 60 in. H
  • 20 A, 1 HP
  • 208-240 V/60 Hz/1 ph

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Additional Product Information

From The Manufacturer

Specialty Display End Cap Refrigerated Self-Serve Merchandiser, 40"W x 40"D x 60”H, self contained refrigeration with condensate pump, adjustable temperature control, 3500K LED top & undershelf lighting, (3) tiers of adjustable black metal shelves, curved air deflector, black metal base, black interior & canopy, choice of laminate, 1 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

Warranty Icon
1-year Parts & Labor; 5-year Compressor
