Dormont 1675KITS36 36" Gas Connector Kit w/ 3/4" Inside Diameter
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Dormont 1675KITS36 Description
The Dormont 1675KITS36 movable gas connector kit has a reinforced hose with three layers that withstands movement and resists kinks, twisting, or crushing during installation. Its fully annealed, 304 stainless steel inner hose tubing is protected by a braided, stainless steel sheath and antimicrobial PVC coating. A coiled restraining cable anchors the appliance and prevents pulling or stretching of the gas hose during movement. The SnapFast® quick-disconnect coupling can be opened or closed with one hand, enabling users to disengage the gas hose safely and quickly for maintenance or repair. The 3⁄4-inch NPT-threaded, stainless steel couplings create an airtight seal and are coated with zinc and yellow chromium for corrosion resistance.
Product Details
- Triple-layer hose construction resists kinking, twisting, or crushing during installation
- Inner 304 stainless steel tubing is wrapped in a braided, stainless steel wire sleeve
- Outer hose surface is coated in fire-resistant PVC that wipes clean and resists bacterial growth
- 3⁄4-in. male NPT-threaded couplings
- SnapFast® quick-disconnect coupling
- Thermoreactive safety insert melts at 350 degrees F to stop the flow of gas
- Wall anchor cable supports appliance mobility without coupling strain
- 203,000-BTU min. flow capacity
- Internal hose dimensions: 3⁄4 in. dia. x 36 in. L
From The Manufacturer

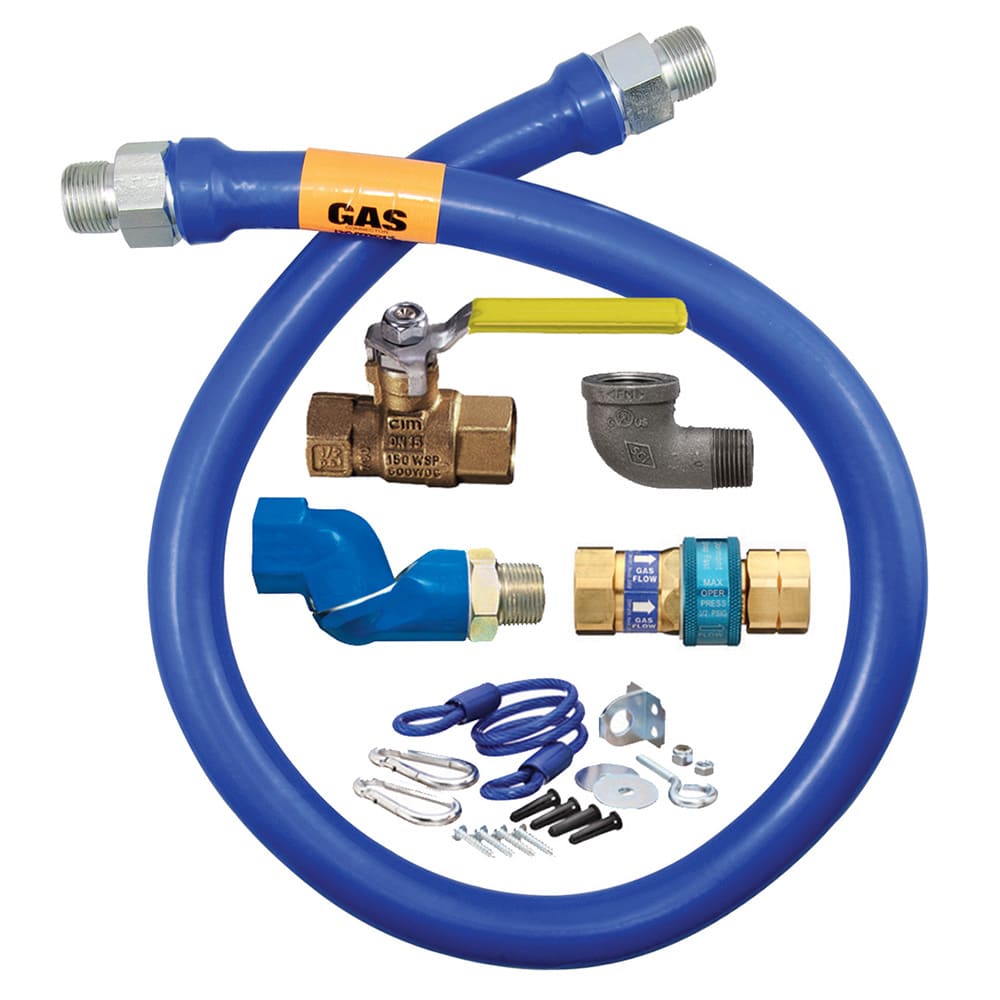

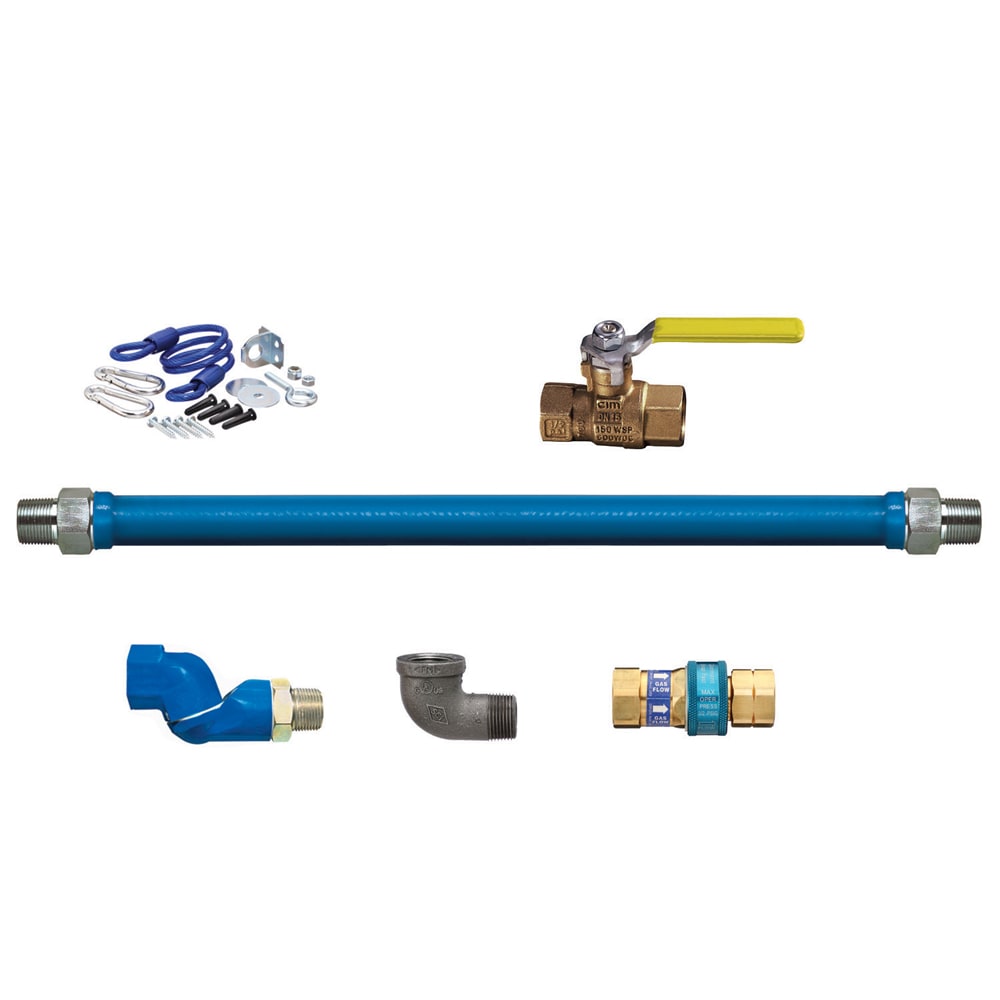

Dormont Blue Hose™ Moveable Gas Connector Kit, 3/4" inside dia., 36" long, covered with stainless steel braid, coated with blue antimicrobial PVC, (1) SnapFast® QD, (1) Swivel MAX®, (1) full port valve, (1) elbow, (1) Snap'N Go, coiled restraining cable with hardware, 203,000 BTU/hr minimum flow capacity, limited lifetime warranty
*Image may not depict product color, inclusions or accessories.
Dormont 1675KITS36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Dormont |
| Length (in) | 36 |
| Part Type | Gas Hose Kit |
| Special Features | Antimicrobial |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship |
| Coupling Size (in) | 3/4" |
| Connection Type | Quick Disconnect |
| Couplings | Male/Male |
| Product | Parts & Accessories |
| Product Type | Cooking Equipment |
| Weight | 5.42 |
WARNING: Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Current Item: Dormont 1675KITS36 36" Gas Connector Kit w/ 3/4" Inside Diameter |
T&S HG-4D-36SK 36" Gas Connector Kit w/ Quick Disconnect, (2) SwiveLink Swivels & (1) 90° Elbow - 3/4" Connection |
|---|---|---|
| Customer Rating |
|
|
| Price | $226.00 | $340.72 |
| Shipping | Ships Free | Ships Free |
| Coupling Size (in) | 3/4" | 3/4" |
| Length (in) | 36 | 36 |
| Connection Type | Quick Disconnect | Quick Disconnect |
| Couplings | Male/Male | |
| Special Features | Antimicrobial | |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship | 5-year Limited Against Defects in Material & Workmanship |
