Dormont 1675KIT2S36 36" Gas Connector Kit w/ 3/4" Inside Diameter

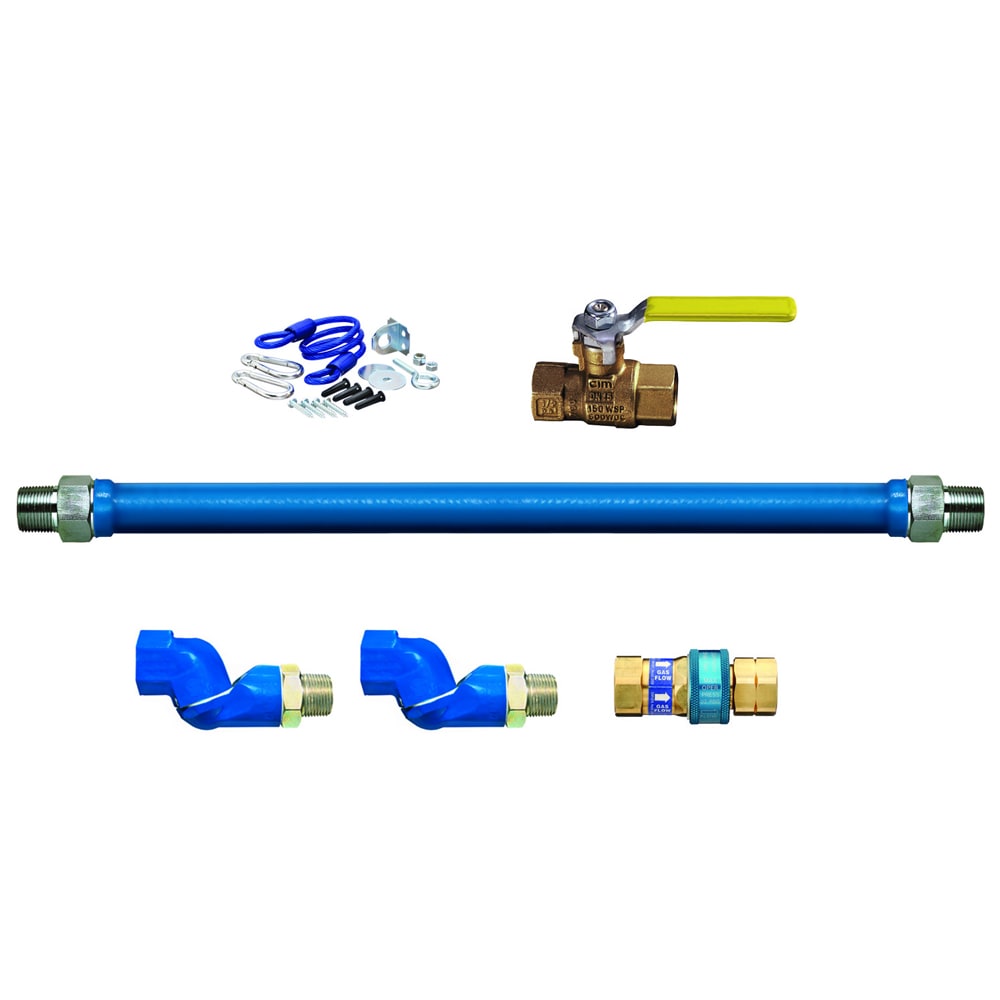

The Dormont 1675KIT2S36 gas connector kit includes a triple-layer connector hose with zinc- and yellow chromium-plated stainless steel fittings, two 90-degree malleable lead elbows, a restraining cable with hardware, and a full port brass ball valve. Its hose's stainless steel inner tubing and braided wire are fully annealed and withstand the demands of mobile, caster-mounted appliances. Flame-retardant, antimicrobial PVC coating protects the connector hose exterior, preventing gas leaks that result from repeated movement over time. The SnapFast® quick-disconnect function can be released swiftly with one hand. A restraining cable prevents connecting hose overextension when installed.

Product Details

• Triple-layer hose accommodates moveable kitchen equipment
• 304 stainless steel tubing and braided, stainless steel wire sleeve resist cracking from movement
• Flame-retardant PVC coating safeguards the hose exterior from environmental stress
• ³⁄₄-in. male-threaded couplings
• SnapFast® quick disconnect feature for emergency use
• Automatic gas shut-off insert activates at 350 degrees F
• Restraining cable prevents strain on the gas hose and couplings when moving appliances
• 193,000-BTU min. flow capacity
• Internal hose dimensions: ³⁄₄ in. dia. x 36 in. L

From The Manufacturer

Dormont Blue Hose™ Moveable Gas Connector Kit, 3/4" inside dia., 36" long, covered with stainless steel braid, coated with blue antimicrobial PVC, (1) SnapFast® QD, (2) Swivel MAX®, (1) full port valve, (1) Snap'N Go, coiled restraining cable with hardware, 193,000 BTU/hr minimum flow capacity, limited lifetime warranty

*Image may not depict product color, inclusions or accessories.

Limited Lifetime Against Defects in Material & Workmanship

Dormont 1675KIT2S36 Specifications

Documents

Spec Sheet

Warranty

Installation Guide
