Dormont 16100KIT48 48" Gas Connector Kit w/ 1" Male/Male Couplings
IN STOCK: Ships in 1 Business Day
20+ in Stock
Retail Price: $635.79
$229.99 /Each
Dormont 16100KIT48 Description
The Dormont 16100KIT48 moveable gas connector kit features a triple-layered design of 304 stainless steel tubing wrapped in a braided, multi-strand, 304 stainless steel wire sleeve and coated on the outside with antimicrobial PVC. To enhance fire safety, the PVC coating is flame retardant and doesn't burn, although it can melt at extreme temperatures. The fittings on both ends of the hose are zinc- and yellow dichromate-coated stainless steel with male threading and measure 1 inch in diameter. For enhanced fire safety, its SnapFast® quick-disconnect design enables the user to shut off gas flow quickly and disconnect the hose in case of emergency, or to perform cleaning and repair. Additionally, the polymer insert in the quick-disconnect area is designed to melt if the hose temperature exceeds 350 degrees Fahrenheit, automatically shutting off gas flow.
Product Details
- Triple-layer design for strength and durability
- Corrugated inner tubing is wrapped in a braided wire sleeve
- Outside is coated in flame-retardant PVC
- Zinc- and dichromate-coated, stainless steel fittings measure 1 in.
- Male-threaded fittings
- SnapFast design enables 1-handed disconnect
- Polymer insert melts at 350 degrees F to shut off gas flow
- Restraining cable secures moveable appliances and protects the gas connection hose
- Full port brass valve is included
- 379,000-BTU min. flow capacity
- Internal hose dimensions: 1 in. dia. x 48 in. L
From The Manufacturer

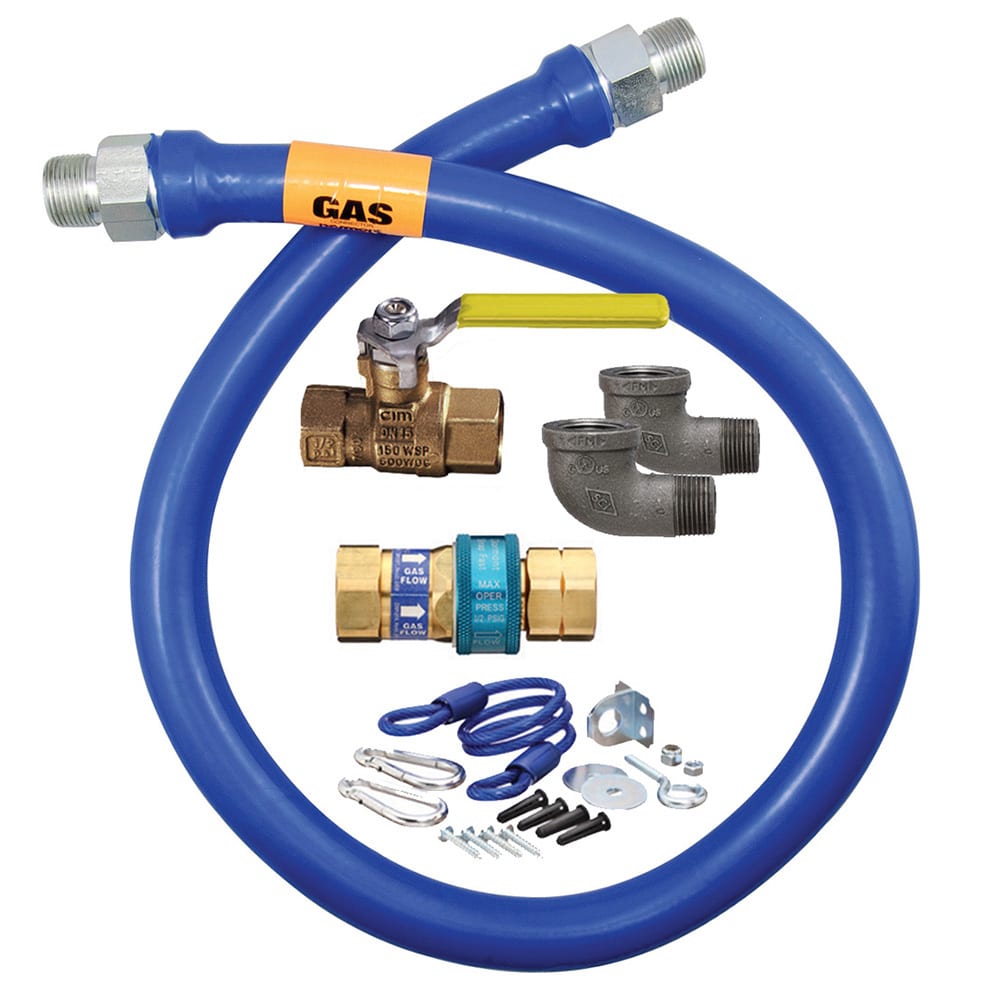

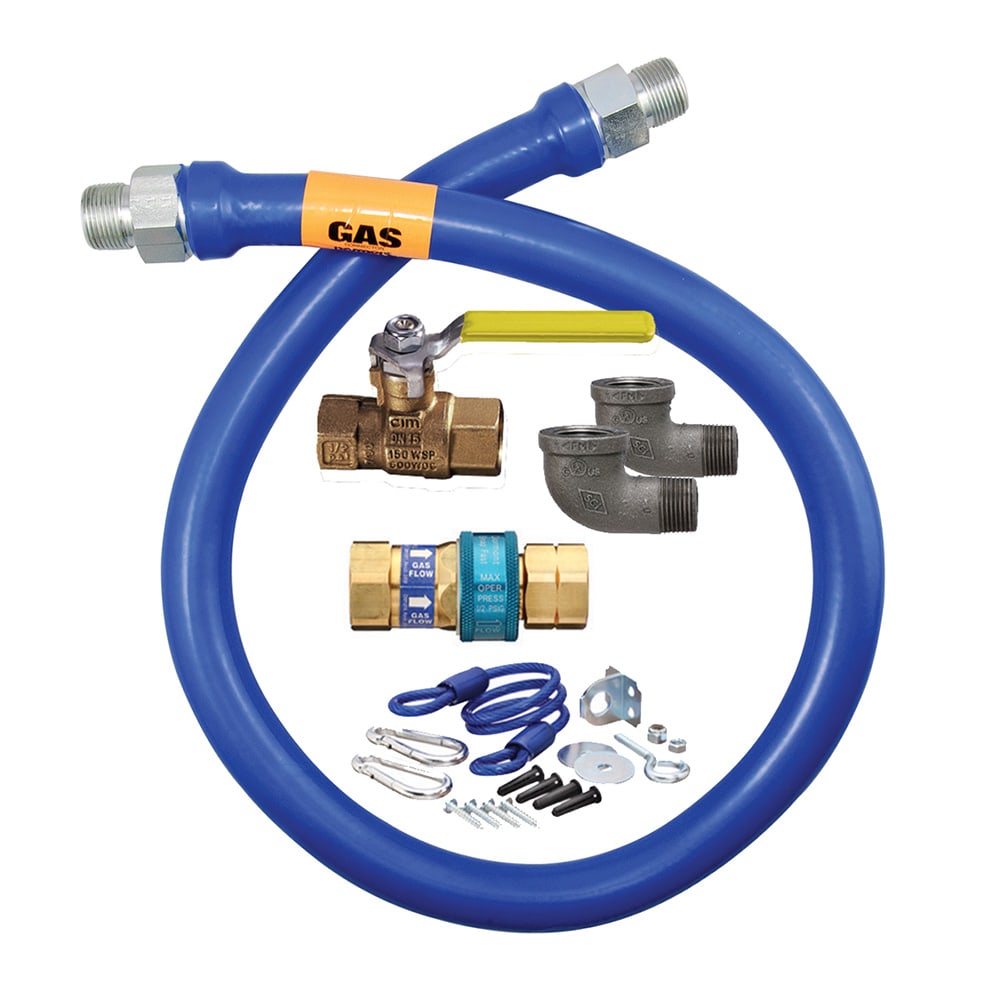

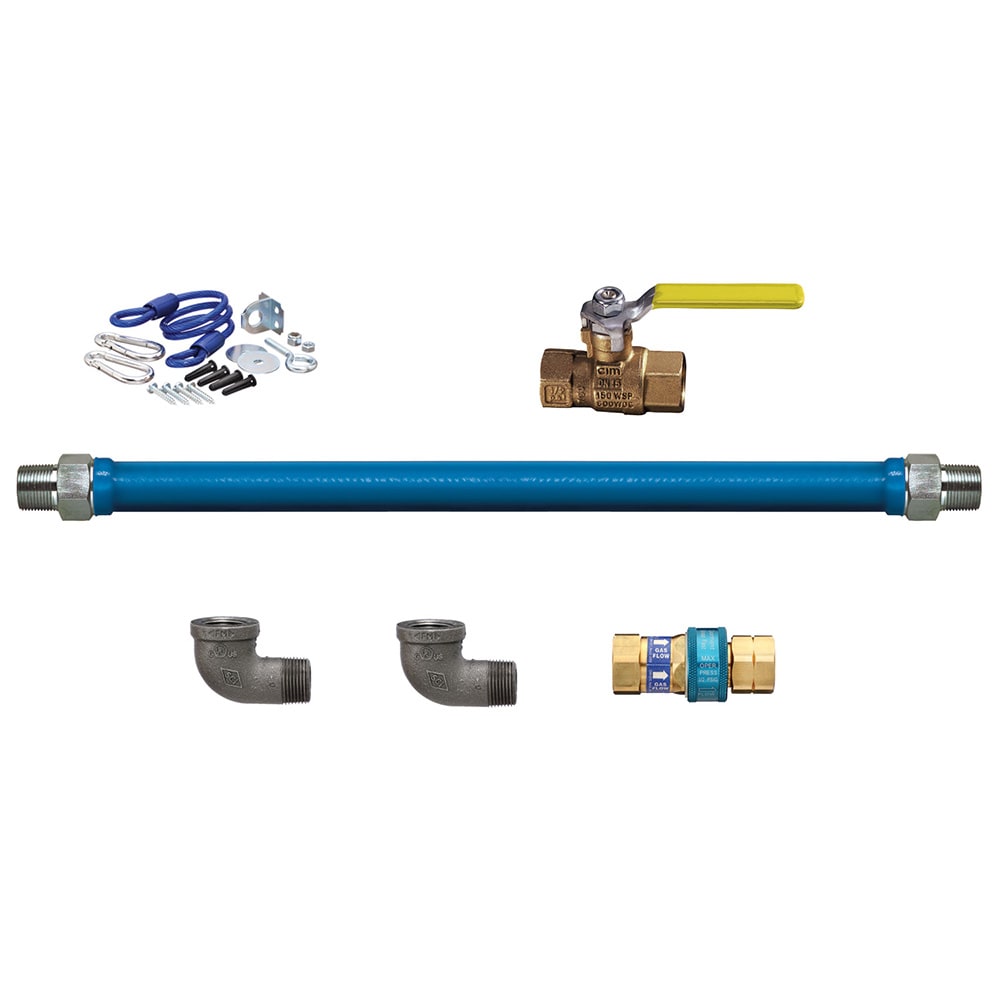

Dormont Blue Hose™ Moveable Gas Connector Kit, 1" inside dia., 48" long, covered with stainless steel braid, coated with blue antimicrobial PVC, (1) SnapFast® QD, (1) full port valve, (2) 90° elbows, coiled restraining cable with hardware, 334,000 BTU/hr minimum flow capacity, limited lifetime warranty
*Image may not depict product color, inclusions or accessories.
Dormont 16100KIT48 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Dormont |
| Length (in) | 48 |
| Part Type | Gas Hose Kit |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship |
| Coupling Size (in) | 1" |
| Connection Type | Quick Disconnect |
| Couplings | Male/Male |
| Product | Parts & Accessories |
| Product Type | Cooking Equipment |
| Weight | 8.38 |
WARNING: Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Current Item: Dormont 16100KIT48 48" Gas Connector Kit w/ 1" Male/Male Couplings |
Krowne M10048K 48" Gas Connector Kit w/ 1" Male/Male Couplings |
|---|---|---|
| Customer Rating |
|
|
| Price | $229.99 | $257.40 |
| Shipping | Shipping Cost Calculated in Cart | Shipping Cost Calculated in Cart |
| Lead Time | IN STOCK: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day |
| Coupling Size (in) | 1" | 1" |
| Length (in) | 48 | 48 |
| Connection Type | Quick Disconnect | Quick Disconnect |
| Couplings | Male/Male | Male/Male |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship | Limited Lifetime |
