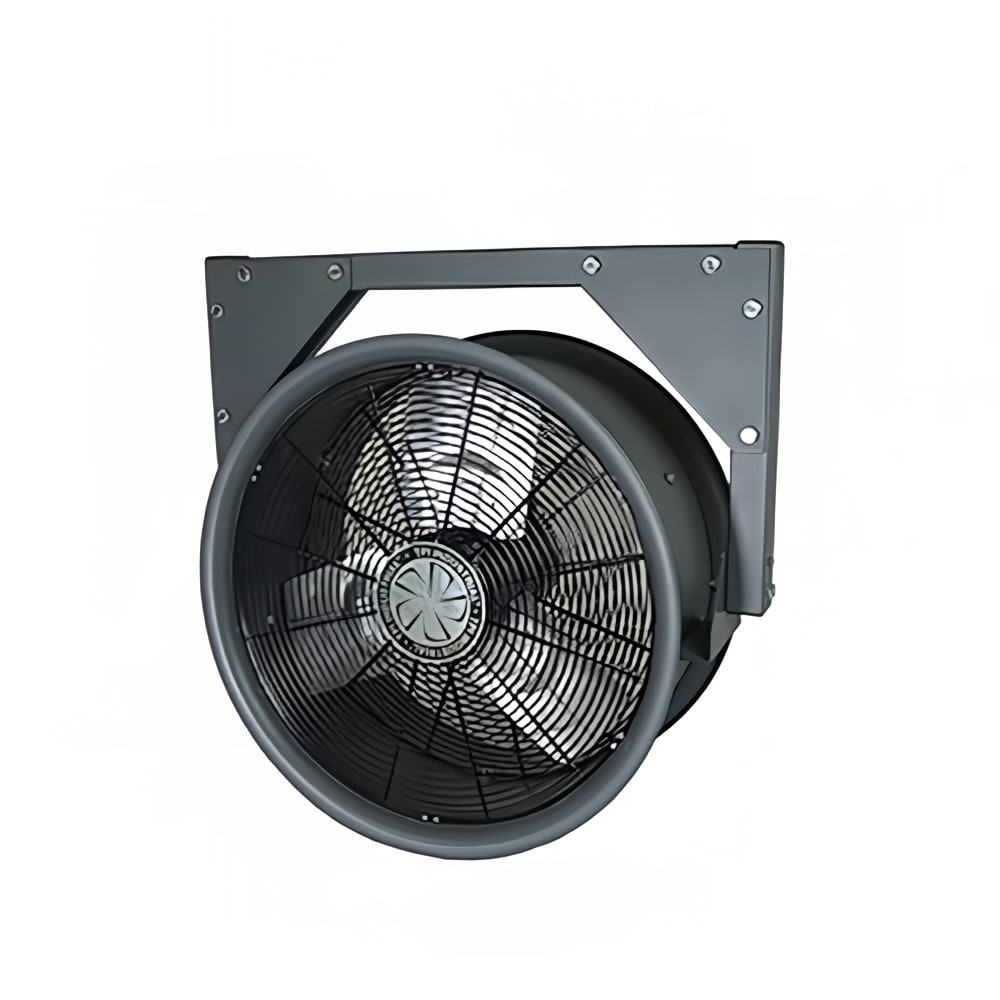

TPI HV-30-120V 30" High Velocity Fan w/ Yoke Mount - Direct Drive, 120v
$1,847.04 /Each
Login or add to cart for the price
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
TPI HV-30-120V Description
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Industrial High Velocity Blower, 30" diameter, 28" blade size, single speed, direct drive, 20-gauge all steel construction, gray epoxy powder coated finish, Front & rear spiral wound grills, Heavy-duty yoke mounting bracket design with 2” square steel tubing frame, Aluminum 3-paddle blade system with steel hub, cast aluminum spider connections, Built-in rotating design, Non-Oscillating, 7.6 amp, 1 HP, 746 watt, 1700 RPM, 9000 CFM, 16"L x 38.9"W x 39"H, 120v/60/1ph
TPI HV-30-120V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | TPI |
| Amps | 7.6 |
| Blade Diameter (in) | 28 |
| Blade Length (in) | 28 |
| CFM | 9000 |
| Color | Gray |
| Construction | Steel |
| Depth (in) | 16 |
| Height (in) | 39 |
| Hertz | 60 |
| HP | 1 |
| Material | Steel |
| Mounting Style | Yoke |
| Product | Fans |
| Product Type | Facility Maintenance |
| RPM | 1700 |
| Series | HV |
| Voltage | 120 |
| Warranty | 1-year |
| Watts | 746 |
| Width (in) | 38.9 |
| Weight | 85.00 |
