Pitco SGM24 Gas Fryer - (1) 150 lb Vat, Floor Model, Liquid Propane
$17,212.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Looking for ENERGY STAR® Commercial Gas Fryers?
See our selection of Pitco ENERGY STAR® Commercial Gas Fryers below

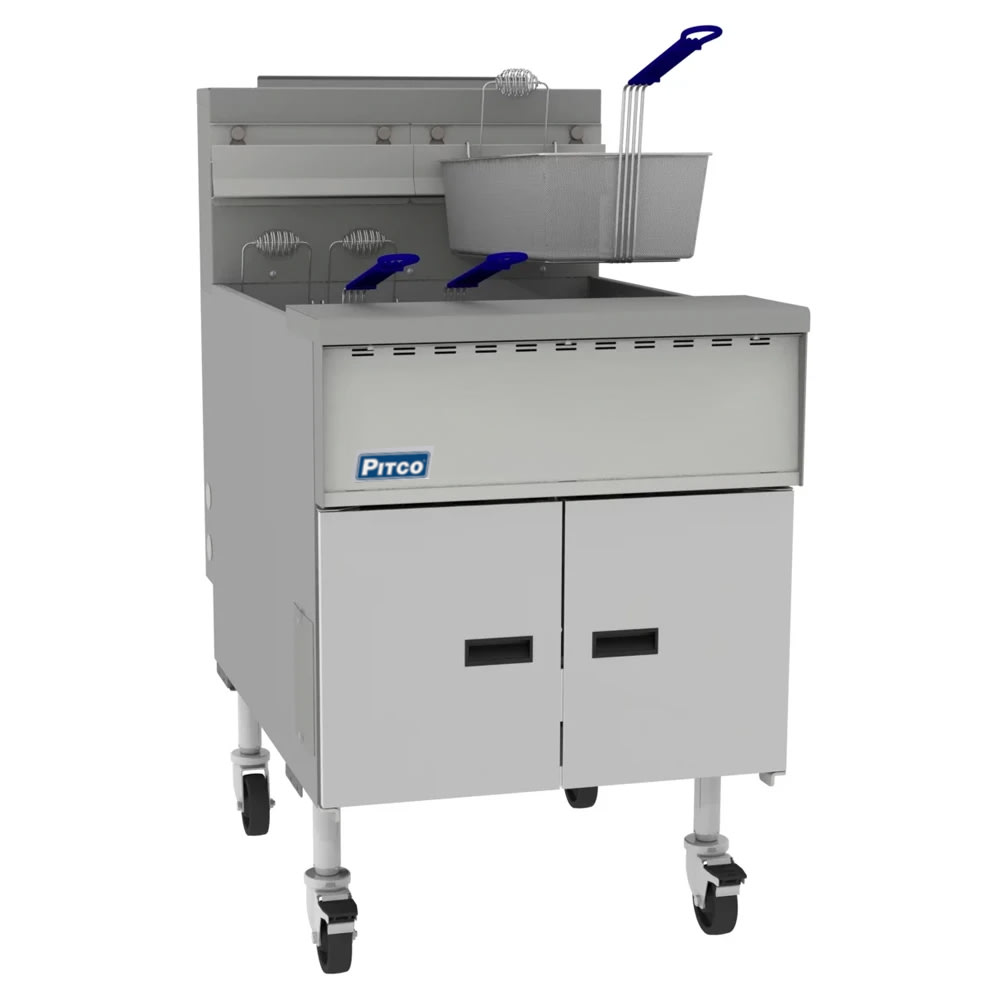

Pitco SGM24 Description
To save floorspace and increase output, the Pitco SGM24 gas fryer measures 255⁄8 inches wide by 38 inches deep by 481⁄4 inches high and has a 150-pound oil capacity. This LP-gas-powered unit features Solstice™ burner technology that provides reliable heat to achieve 62 percent thermal efficiency. Its high-temperature alloy stainless steel heat baffles maximize heating and enhance combustion efficiency for consistent results. To streamline operation, its matchless ignition automatically lights the pilot when the fryer is turned on, and its solid-state thermostat includes a melt cycle and boil-out mode. To prevent waste and enhance user safety, its drain valve interlock safety system turns off the heat to prevent oil from burning, while its temperature limit safety switch shuts off gas flow if temperatures exceed the set limit.
This Pitco SGM24 commercial fryer's stainless steel tank, front, door, sides, and splash back provide long-lasting durability while resisting rust, corrosion, and wear through frequent use. To ease cleaning beneath the unit and ensure it's stable on irregular surfaces, it 11-inch legs are adjustable. Separately sold fry baskets can be secured on the removable basket hangers so operators can perform other tasks. To ease cleaning, this unit features a 11⁄4-inch full-port drain valve for quick oil removal.
Product Details
- Formerly SGM24-C
- Part of the MEGAFRY series
- Oil capacity: 140-150 lbs.
- Solstice burner technology for 62 percent thermal efficiency
- High-temperature alloy stainless steel heat baffles
- Solid-state controls with melt cycle and boil-out mode
- Matchless ignition
- Manual gas shutoffs and rear gas manifold connection
- Integrated flue deflector
- Temperature limit switch
- Drain valve interlock safety system
- Integrated gas control valve
- Stainless steel tank with extra-smooth peened finish
- Stainless steel front, door, sides, and splash back
- Basket hanger
- 11-in. adjustable legs
- 11⁄4-in. full-port drain valve
- Tube screen
- Drain line clean-out rod
- Drain extension
- Fryer cleaner sample packet
- 30-in. clearance required at front
- 6-in. clearance required for sides, rear, and bottom
- 165,000 BTU
Dimensions & Utilities
- Frying area: 24 in. W x 24 in. D x 4 in. H
- Overall: 255⁄8 in. W x 38 in. D x 481⁄4 in. H
- 1.7 A
- 115 V/60 Hz/1 ph
- Powered by LP gas
- 3⁄4-in. gas connection
*Free shipping on Pitco SGM24 within the 48 contiguous states.
From The Manufacturer
MEGAFRY Fryer, gas, high efficiency, 24"x24" frying area, 140-150 lb. oil capacity, solid state controls, auto melt cycle, boil out mode, matchless ignition, marine front edge, 9" legs, stainless steel tank, front, sides & splash-back, 165,000 BTU, NSF, CE, CSA Flame, CSA Star (available mix/match and with FD-M filter drawer filtration system)
*Image may not depict product color, inclusions or accessories.
Pitco SGM24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Pitco |
| BTU per Fryer | 165000 |
| Capacity (lbs) | 150 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 150 |
| Oil Capacity/Fryer (lb) | 150 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | MEGAFRY |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 25.62 |
| Weight | 375.00 |
