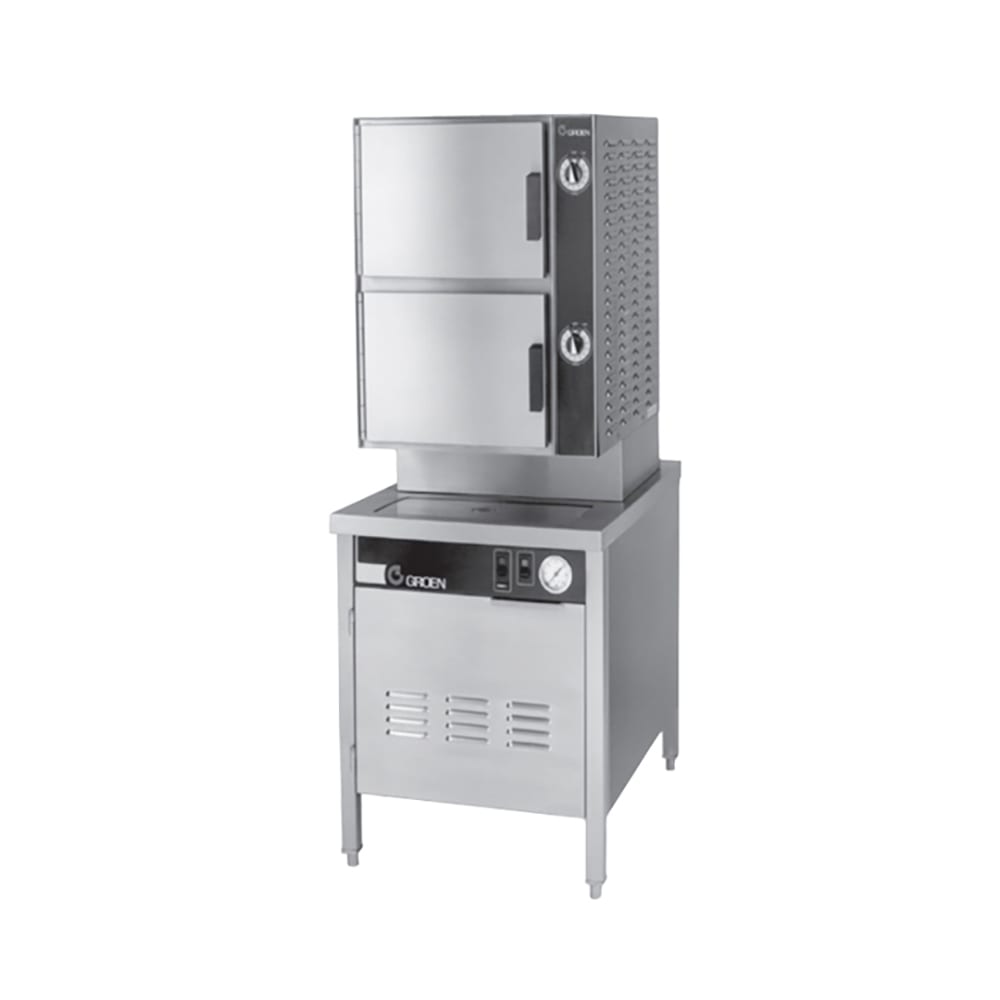

Groen HY-6SE-24 (6) Pan Convection Steamer - Cabinet, 208v/3ph

To maintain the color and retain moisture and nutrients in food, the Groen HY-6SE-24 HyPlus™ floor model steamer has two steaming compartments. It generates steam with a built-in pressure boiler in the 24-inch cabinet base. Side-mounted blowers move steam around the compartments and between the pans, improving steam velocity. This unit has stainless steel pan supports and holds six full-size, 2¹⁄₂-inch-deep steam pans, and because the interiors are made of stainless steel, they are heavy duty and simplify cleaning. For servicing and maintenance, operators can remove the panel on the right side for component access.

In the Groen HY-6SE-24 electric steamer are control systems for the steam flow and pressure boiler, both of which operate with a power-on switch. Steam can be monitored by a 60-minute timer or set to continuously steam, and if water is low or pressure is high, the boiler automatically shuts off. When the power is switched off and the water is cooled to 170 degrees Fahrenheit, the boiler automatically drains to reduce sediment buildup.

Product Details

• Cabinet base has a pressure boiler that provides atmospheric steam
• Steam temperature: 212 degrees F
• Powerful, side-mounted blowers improve steam velocity to ensure it is evenly distributed between pans
• Holds (6) 12-in. x 20-in. x 2¹⁄₂-in. pans
• Removable pan support racks are made of durable, rust-resistant stainless steel
• Stainless steel chambers withstand heavy use and simplify cleaning
• Panel on the right side is removable to provide access to components
• Stainless steel doors are insulated with replaceable, 1-piece seals
• Field-reversible doors have easy-open handles
• Door latches lock and seal to contain steam
• Magnetic switch cuts off steam flow and blower power when a door is opened
• Automatic shut-off feature activates if water is too low or pressure is too high
• Boiler automatically drains when the power is switched off after water is cooled to 170 degrees F, reducing sediment buildup
• Front and rear legs have adjustable bullet feet

Steam and Boiler Control Systems

• On/off steam power switch
• 60-min. electromechanical steam timers
• Continuous steam setting for each cavity
• Power-on boiler switch
• Boiler reset light
• Boiler water level sight glass
• Low-water sensor for boiler

Dimensions & Utilities

• 24¹⁄₈ in. W x 34³⁄₁₆ in. D x 57³⁄₁₆ in. H
• 67 A, 24 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

HyPlus™ Pressureless Steamer, electric, 2 compartments, 24" cabinet base, (3) 12" x 20" x 2-1/2" deep pans/compartment, stainless steel construction, dual water connection, UL, NSF, Made in USA (CSD-1 compliant)

*Not as Shown

Limited 1-year Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School
