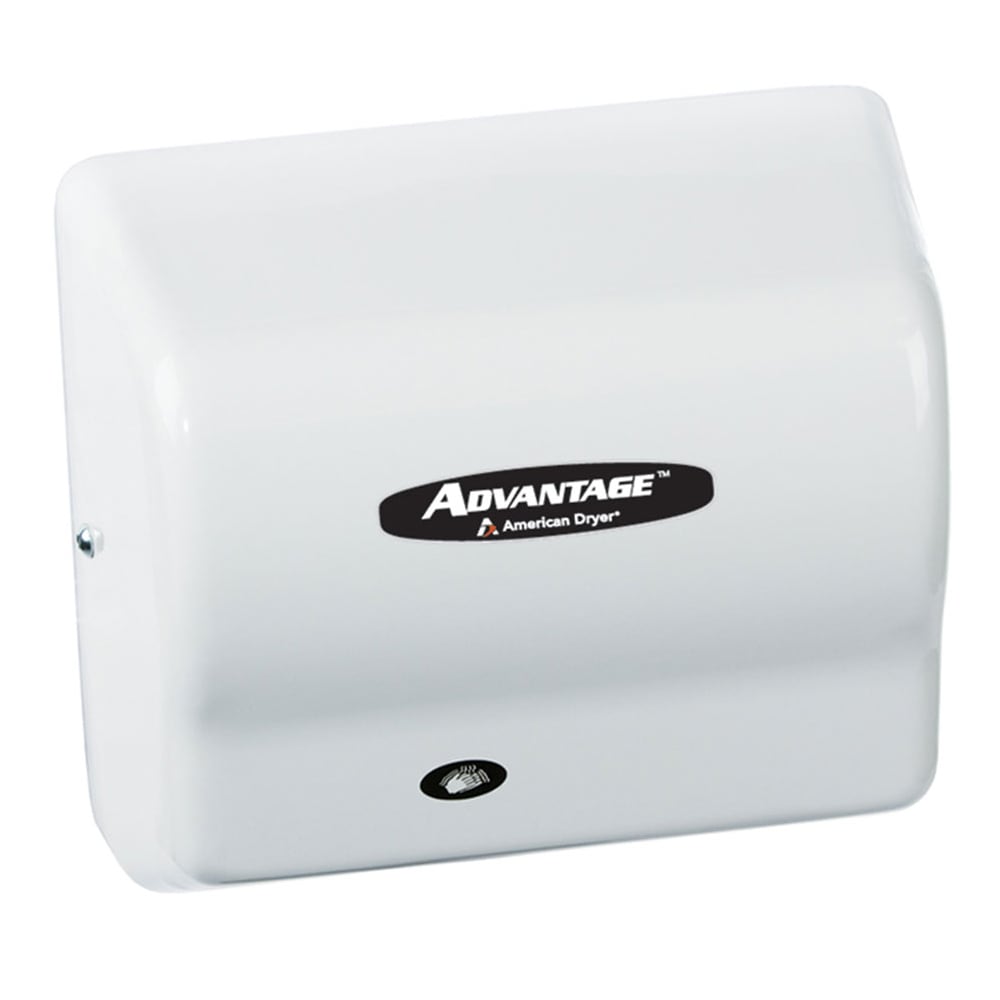

American Dryer AD90 Automatic Hand Dryer w/ 25 Second Dry Time - White ABS, 100 240v/1ph

The American Dryer AD90 hand dryer has an automatic sensor that blows out warm air for as long as 35 seconds for optimal results, although it typically dries hands in as little as 25 seconds. When the room temperature is at 72 degrees Fahrenheit, the hand dryer operates at 120 degrees Fahrenheit. To prevent overheating, the motor has an automatic thermal protector, and so it will not sustain damage from warm air, the unit is made of flame-retardant ABS plastic.

Preventing vandalism, the American Dryer AD90 hand dryer is installed with tamper-resistant screws. To ensure a long life span, the heating element has a NiChrome resistance wire, and this energy-efficient unit operates using only one watt when in standby mode.

Product Details

• Part of the Advantage™ series
• Made of flame-retardant ABS
• 25-sec. dry time
• 180 cu.-ft. per min. airflow
• Tamper-resistant screws prevent vandalism
• Motor has an automatic thermal protector
• Smart sensor turns on air for as long as 35 sec.
• Durable NiChrome resistance wire in heating element
• Operates at 120 degrees F at 72-degree F room temperature
• Uses a single watt in standby mode
• White

Dimensions & Utilities

• 10¹⁄₈ in. W x 5⁵⁄₈ in. D x 9³⁄₈ in. H
• 6.5-12.5 A, 1,250-1,400 W, ¹⁄₈ HP
• 120-240 V/50-60 Hz/1 ph

*Free shipping on American Dryer AD90 within the 48 contiguous states.

From The Manufacturer

Advantage Series Hand Dryer heavy-duty, one-piece cover, tamper-resistant screws secure cover to base, air intake vents are shielded for additional safety, heavy-duty universal motor 1/8 HP, 4,800 RPM, automatic thermal protector, ultra energy-efficient, microprocessor-controlled sensor turns dryer on when hands are under the outlet for up to 35 seconds, standby power is only one watt, features RoHS compliant lead-free design, 25 second dry time, air flow 180 CFM, air velocity 7,300 LFM, 67dB, 120°F at 72°F room temperature, universal voltage 100-240v, 50/60Hz, power 120v at 12.5 A max 1400w, 240v at 6.5 A max 1250w, dimensions 10-1/8"W x 9-3/8"H x 5-5/8"D, flame-retardant, ABS, white

*Image may not depict product color, inclusions or accessories.

5-year Parts & Labor

American Dryer AD90 Specifications

Documents

Spec Sheet
