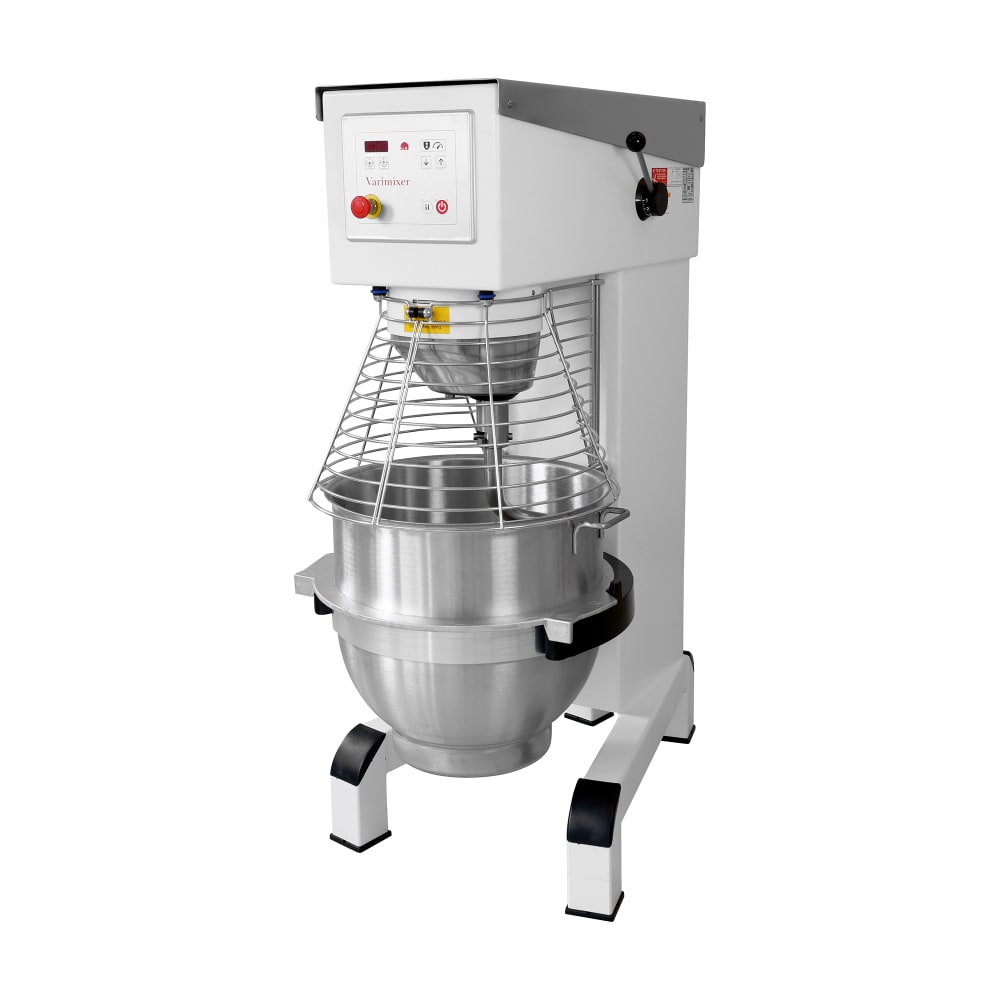

Varimixer V100PL 100 qt Planetary Mixer - Floor Model, 4 hp, 208, 3ph

KaTom #: 147-V100PL • MPN: V100PL
  • 147-V100PL Primary Thumbnail Image
  • 147-V100PL Multiple Thumbnail Image #1
  • 147-V100PL Multiple Thumbnail Image #2
  • 147-V100PL Multiple Thumbnail Image #3

Typically ships in 9 - 13 Business Days

Free Shipping Item

$34,361.00 /Each

Call for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove
Eli Yopp User Image
Ask a Foodservice Equipment Specialist

Varimixer V100PL Description

For mixing a wide range of ingredients in high-capacity settings, the Varimixer V100PL V-Series 100-quart mixer features a 4-horsepower variable speed drive and agitator to combine ingredients quickly. Its speed can be set between 47 and 257 RPMs, and its anti-friction ball bearings withstand frequent use. Because this unit is belt driven, it eliminates the need for oil that could potentially spill into the bowl during mixing. For user safety, this overload-protected unit is equipped with an interlock mechanism that halts operation if the guard is opened or the bowl is lowered. Using the front-mounted control panel, operators can set the timer to a maximum of 90 minutes, initiate the power bowl-lift feature, and activate the emergency-stop function.

This floor-model Varimixer V100PL commercial planetary mixer measures 27 1⁄5 inches wide by 46 1⁄10 inches deep by 79 3⁄5 inches high when the safety guard is lifted. It is also fitted with nonskid feet that secure it in place during use. For long-term rust, wear, and corrosion resistance, its top cover, planetary cover, bayonet shaft, bowl guard, and legs are made of resilient stainless steel, while its legs and non-stainless steel outer surfaces are finished with a durable white powder coating. This unit includes a stainless steel 100-quart bowl, wire whip, dough hook, and ingredient chute and an aluminum flat beater to ease operation and accommodate various mixing needs. For smaller portions of ingredients, it doesn't require a bowl adapter to use low-capacity bowls. When the bowl needs to be raised or lowered, users can simply press a button to secure it in place, reducing manual labor that could result in injury.

  • Formerly V100PLA
  • Part of the V-Series
  • 100-qt. capacity
  • 4-HP motor with variable speed drive and agitator
  • Speed range: 47-257 RPM
  • Belt driven
  • High-torque transmission
  • Grease-lubricated, anti-friction ball bearings

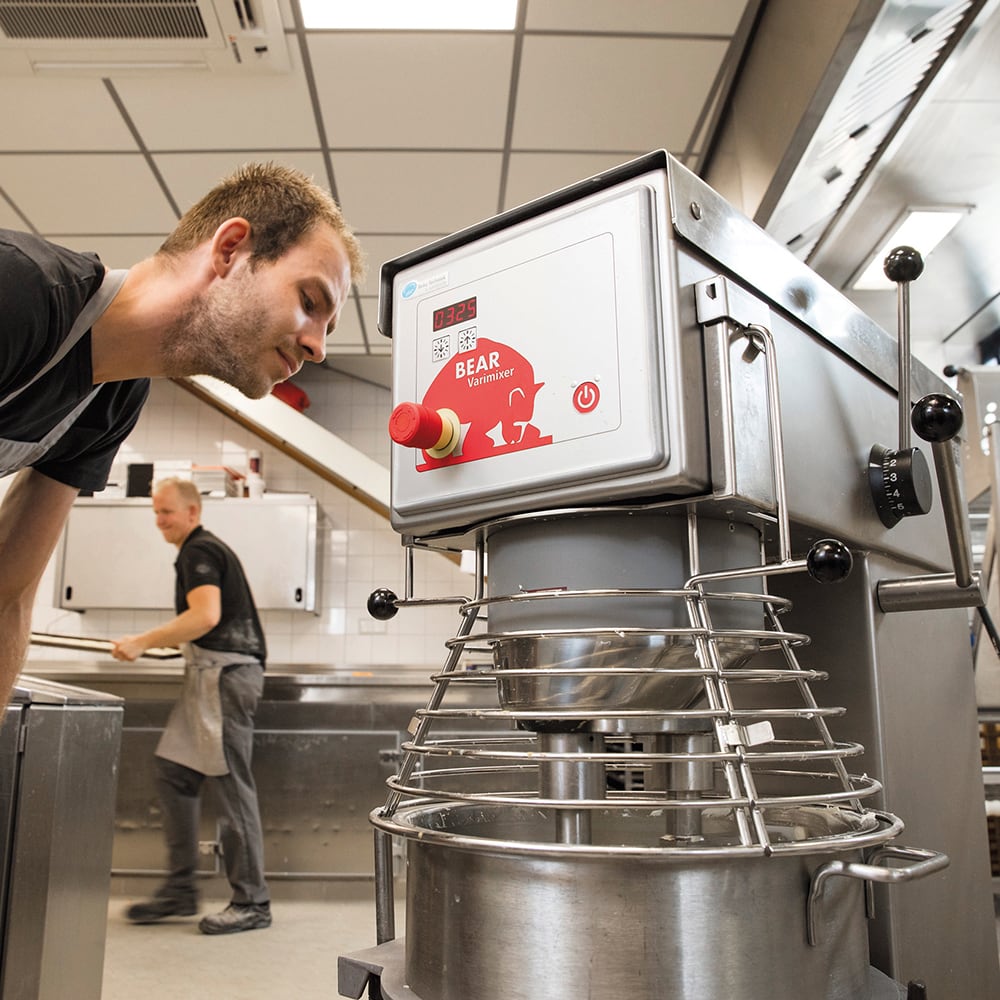

  • Front-mounted controls with 90-minute digital timer, power bowl lift, and emergency stop
  • Overload protection with no volt release
  • Interlock prevents operation when guard is opened or bowl is lowered
  • Stainless steel top cover, planetary cover, bayonet shaft, bowl guard, and legs
  • White powder-coated finish on legs and non-stainless steel outer surfaces
  • Nonskid rubber feet
  • Permanently lubricated planetary head and attachment hub case
  • Bowl scraper bracket can be attached to planetary head
  • Doesn't require bowl adapters to accommodate bowls smaller than 100 qt.
  • Includes 100-qt. stainless steel bowl, aluminum flat beater, stainless steel wire whip, stainless steel dough hook, and stainless steel ingredient hook

  • 27 1⁄5 in. W x 46 1⁄10 in. D x 79 3⁄5 in. H
  • 13 A, 4 HP
  • 208 V/60 Hz/3 ph, includes 6-ft. cord

*Image may not depict product color, inclusions or accessories.

*Free shipping on Varimixer V100PL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Food Mixer, 100 qt., with A equipment package, 4 HP, overload protection, variable speed, MK-1L control panel with digital timer, power bowl lift, integrated bowl screen, limit switch, package includes: stainless steel bowl, hook, whip with stainless steel wires, aluminum beater & ingredient chute, white powder coated finish, cETLus, NSF

Warranty Icon
4-year Parts & Labor
