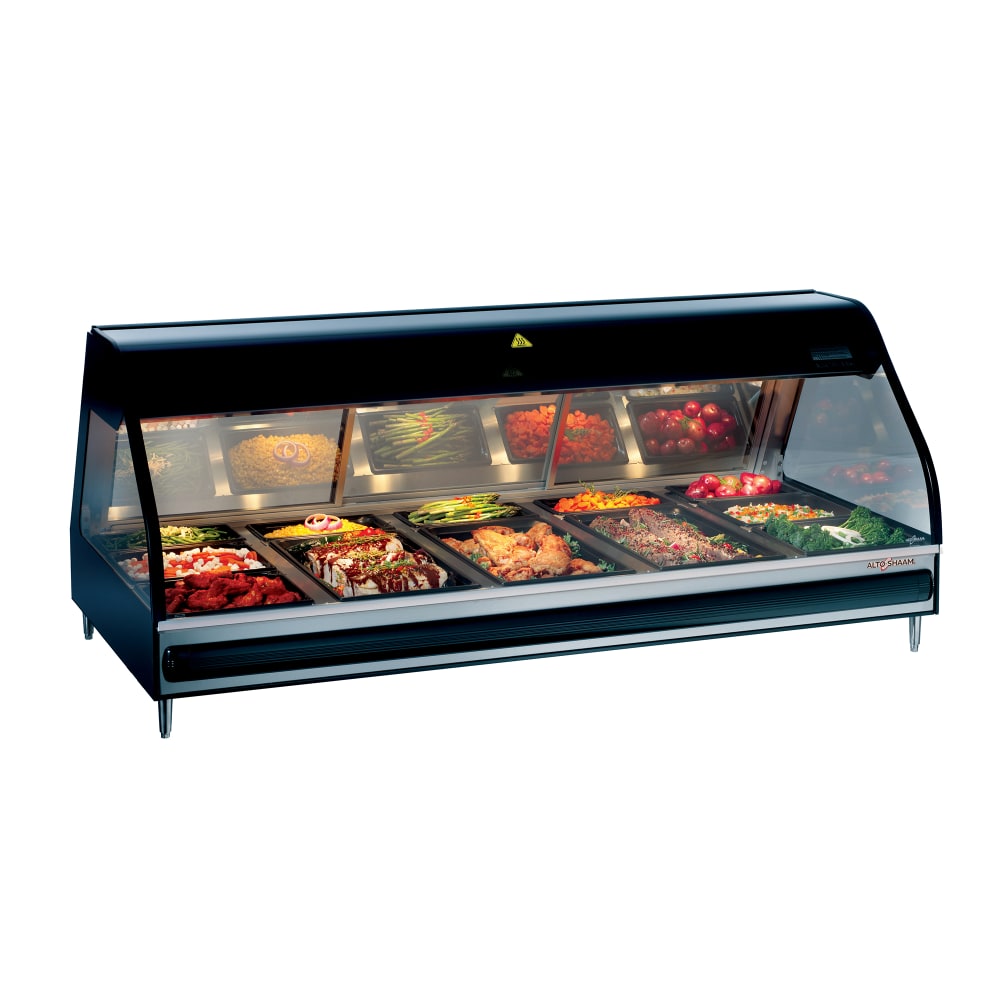

Alto-Shaam ED3-72 72" Full Service Countertop Heated Display Case - 208v

For effective merchandising, the Alto-Shaam ED3-72 full-service countertop heated display case’s glass panels, tempered glass front, and mirrored rear doors showcase the displayed products, enabling customers and employees to see the food under the LED lighting. The operator-side work shelf provides additional space for loading and unloading food. For countertop use in grocery and convenience stores, this unit measures 72⁵/₁₆ inches wide by 43¹³/₁₆ inches deep by 30³/₁₆ inches high and is fitted with 4-inch legs.

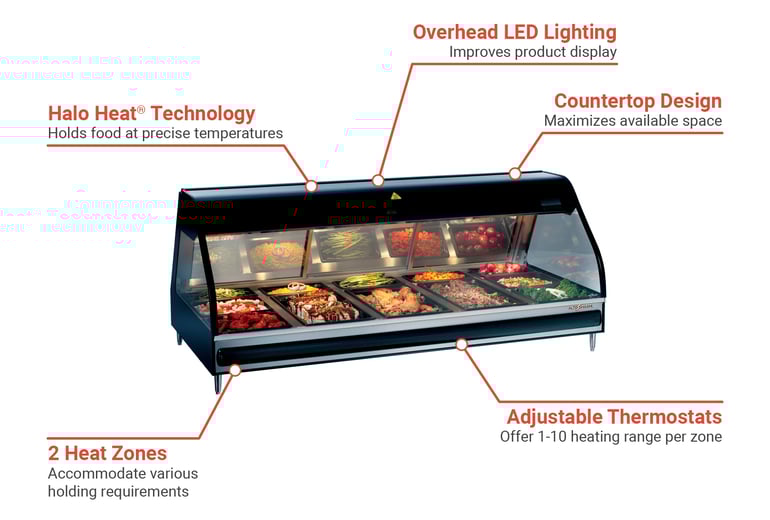

The Alto-Shaam ED3-72 countertop display case features two heat zones that each have an adjustable thermostat with a 1-to-10 heat range. By generating constant bottom and top heat, this display case reduces cold spots that could affect food quality. When the ceramic heating elements are operating, the unit’s heat-on indicators will light up. The unit uses waterless Halo Heat® technology, so it’s resistant to humidity.

Product Details

• Humidity-free Halo Heat technology
• 2 heat zones with adjustable thermostats
• Ceramic top heaters
• 2 heat-on indicators lights

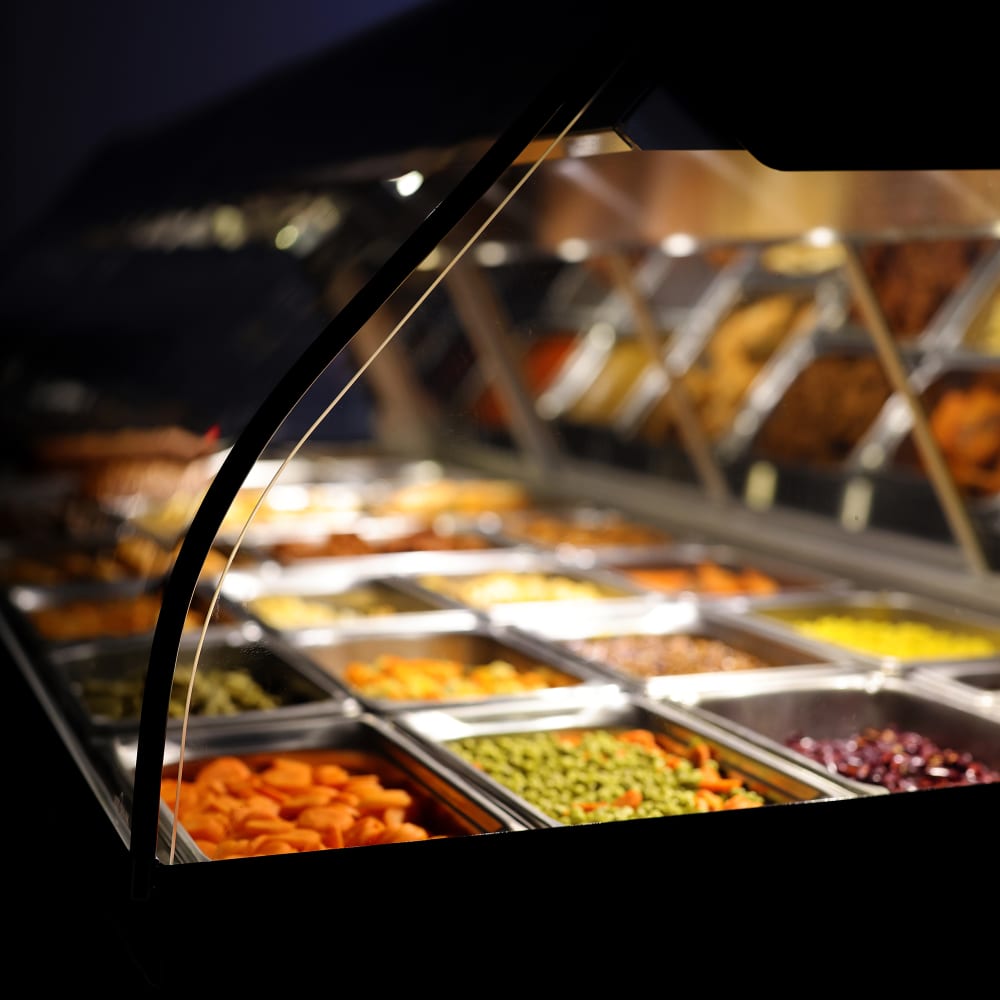

• Curved tempered glass front

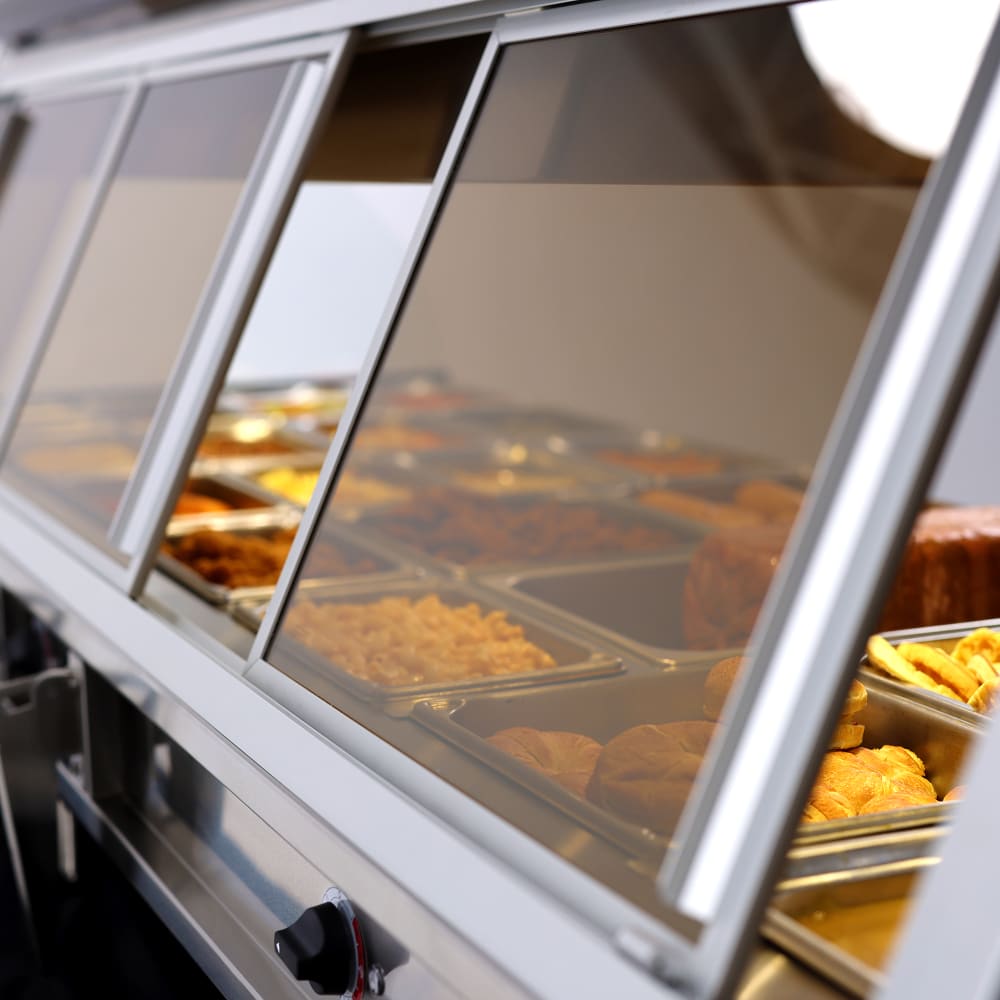

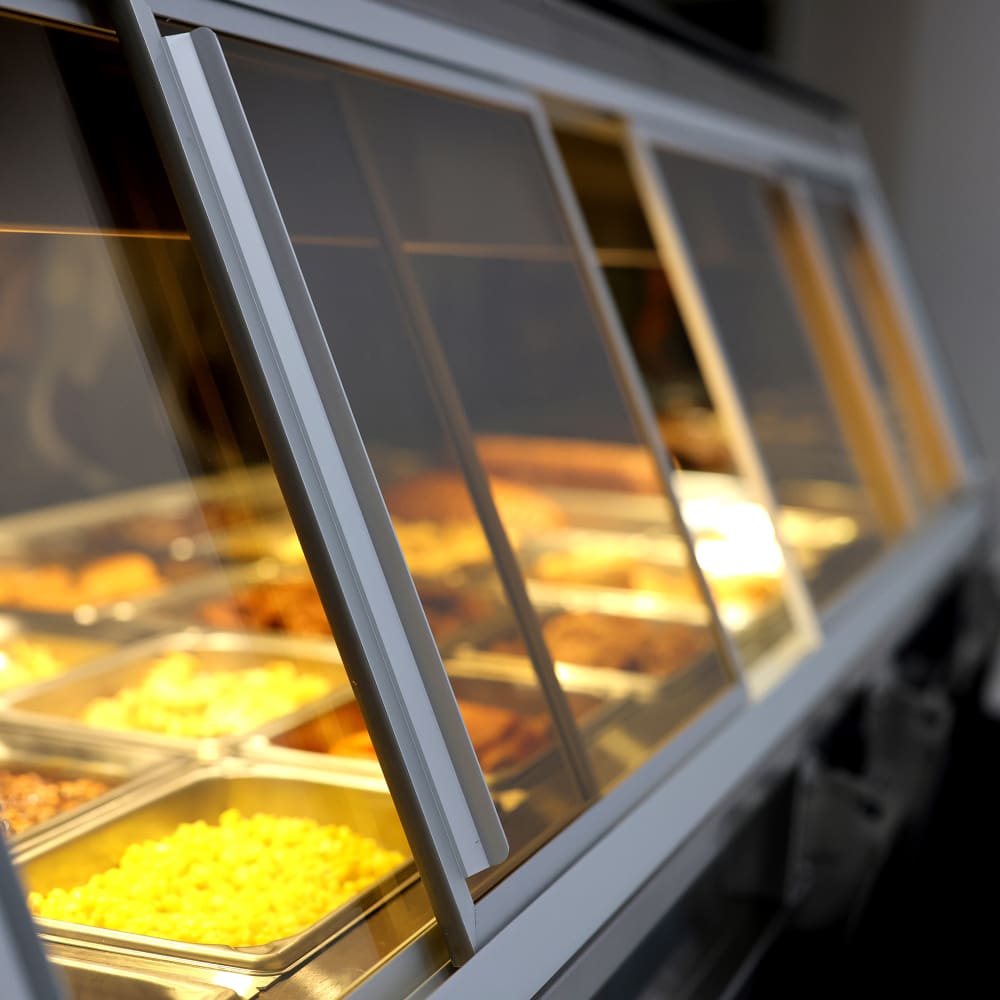

• Sliding back doors
• Glass side panels

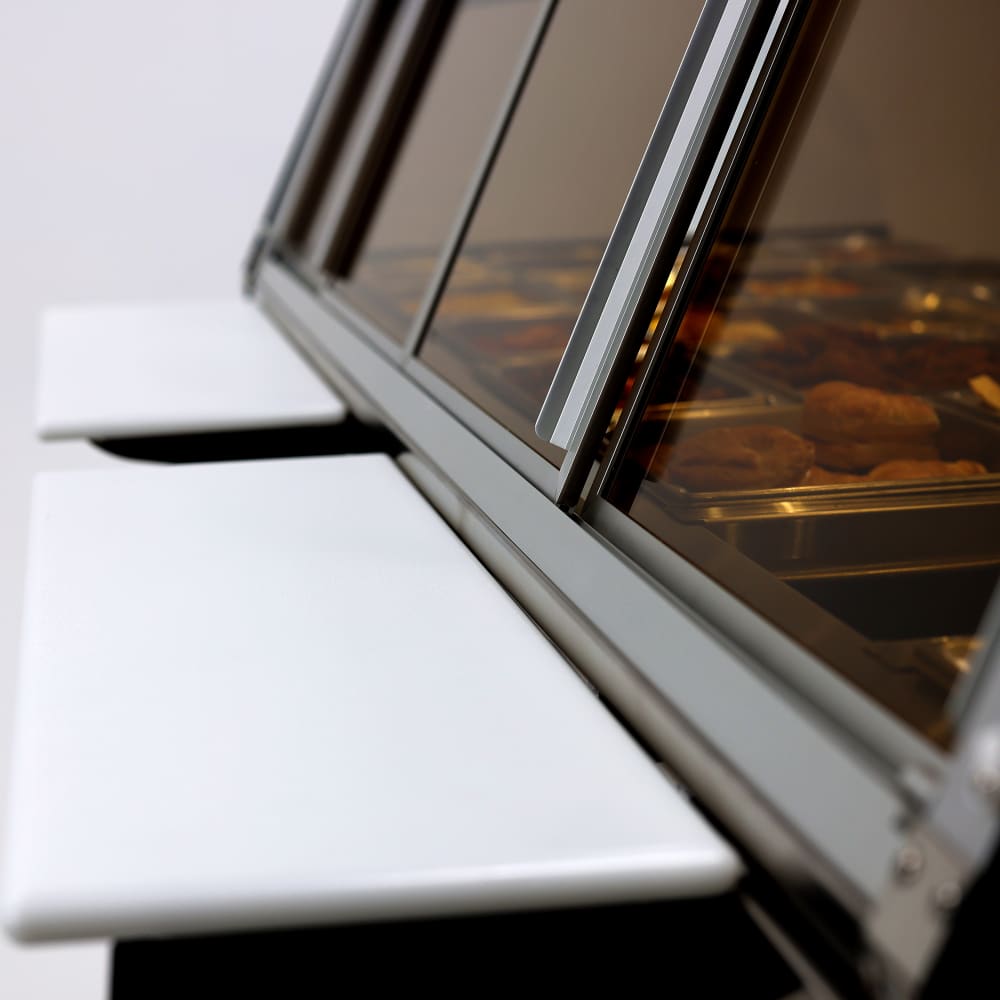

• Operator-side work shelf and cutting board

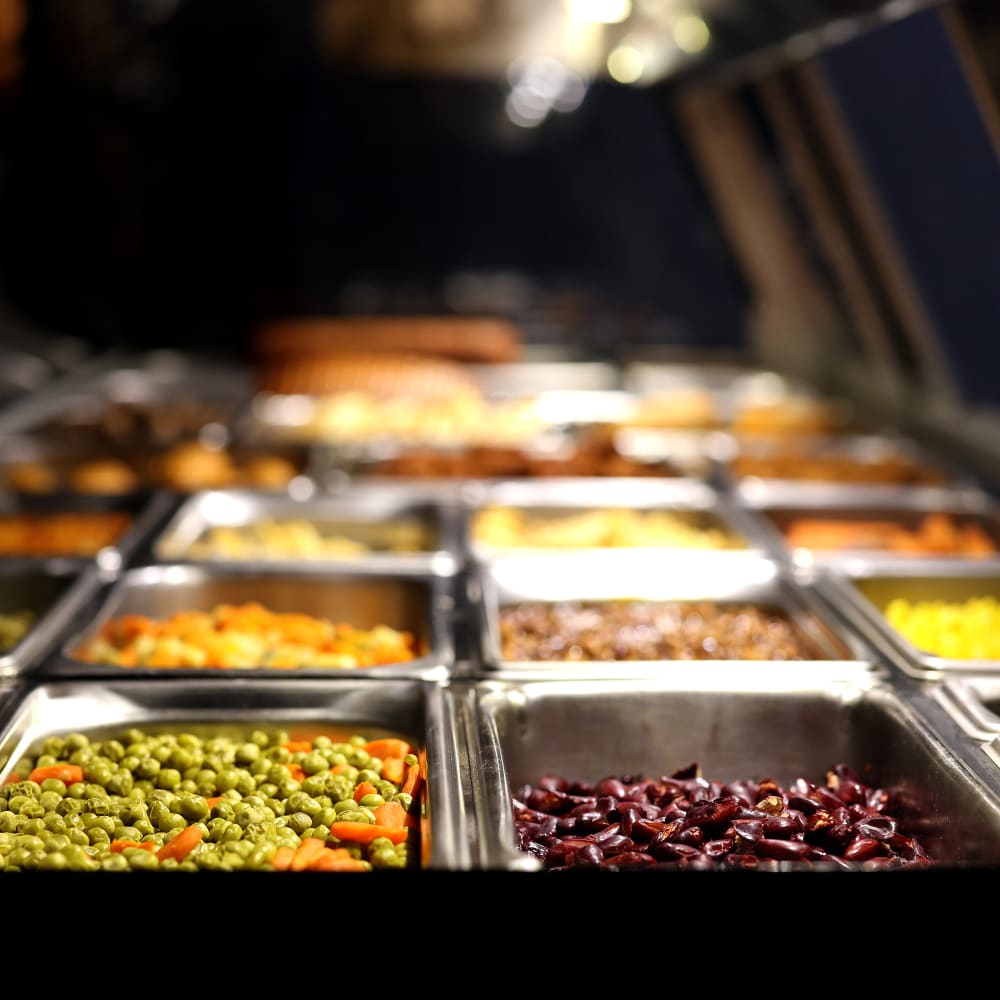

• 5 pan zones

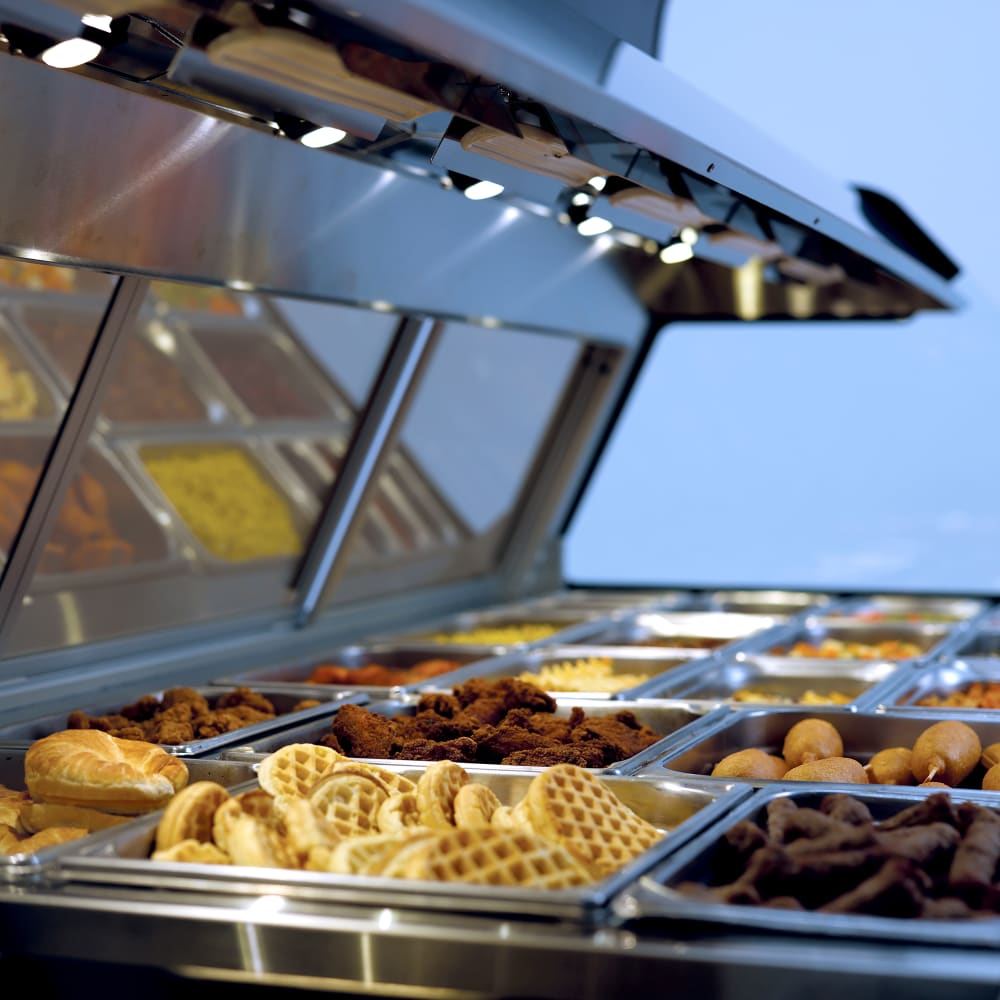

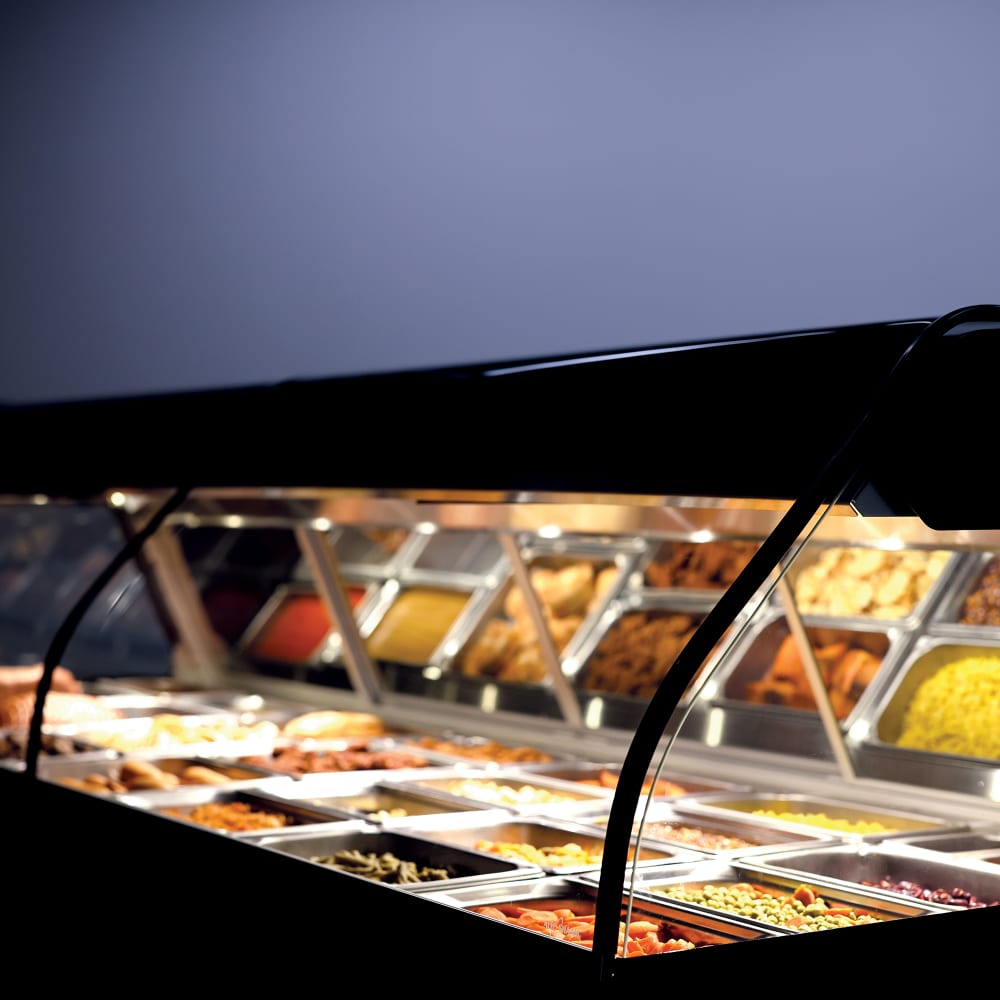

• LED lighting
• 4-in. legs
• Black exterior

Dimensions & Utilities

• Well: 69⁵/₁₆ in. L x 27¹/₄ in. W x 4¹/₂ in. D
• Overall: 72⁵/₁₆ in. W x 43¹³/₁₆ in. D x 30³/₁₆ in. H
• 15 A, 3.11 kW
• 208 V/50-60 Hz/1 ph, 6-ft. cord with NEMA 6-30P plug

Product Features

*Free shipping on Alto-Shaam ED3-72 within the 48 contiguous states.

From The Manufacturer

Heated Display Case, 72" countertop model, full-service with 5 pan sections, 2 individually controlled top and bottom heat zones featuring Halo Heat® technology and top ceramic heaters, modern overhead LED lighting, self-supporting tempered glass front, removable mirrored sliding doors and glass sides, hinged rear work shelf, 4" legs, pan divider bar package, black exterior, 208v/50/60/1-ph, 15.0 amps, 3.11kW, NEMA 6-30P

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Alto-Shaam ED3-72 Specifications
