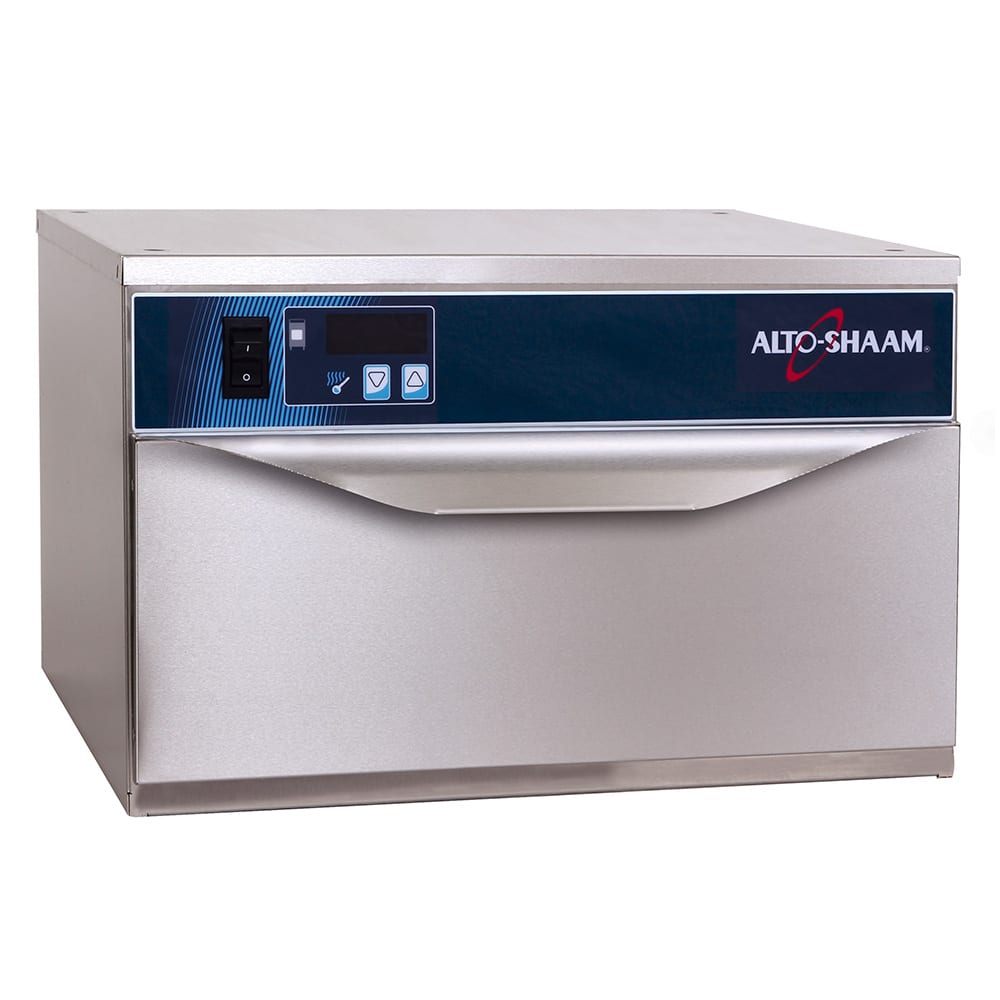

Alto-Shaam 500-1DN 16.69" Freestanding Warming Drawer w/ (1) 15" Compartment, 208v/1ph
Typically ships in 3 - 4 weeks
$1,750.40 /Each
Login or add to cart for more information!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 120V, 1 Phase |
| 230V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Alto-Shaam 500-1DN Description
Because it's a narrow unit, this Alto-Shaam 500-1DN drawer warmer measures 1611⁄16 inches wide by 313⁄16 inches deep by 115⁄8 inches high to fit compact countertops. This design can also be stacked with other units to maximize storage space. Its stainless steel exterior resists rust, corrosion, and wear through heavy-duty use and is simple to wipe clean to preserve its original look. Its single drawer accommodates a 12-inch by 20-inch by 6-inch pan that can support 50 dinner rolls or 34 baked potatoes.
The Alto-Shaam 500-1DN narrow warming drawer uses Halo Heat® technology to generate, low-intensity heat that won't dry foods out during extended holding times, eliminating the need to add water. This radiant heat blankets products uniformly for even results, and users can adjust the thermostat between 60 and 200 degrees Fahrenheit as menus change. For simple operation, it includes an on/off switch, up/down temperature arrow buttons, a heat indicator light, a temperature display button, and a digital display.

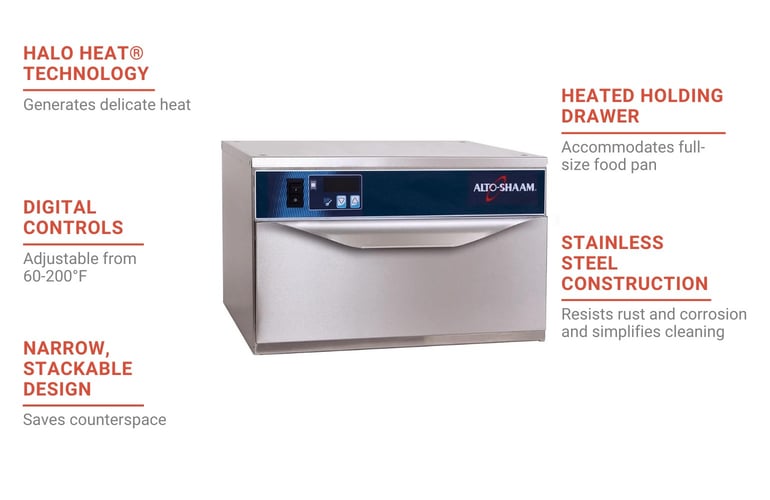

Product Details
- Stackable, freestanding countertop model
- Narrow design
- 1 heated holding drawer
- Capacity: (1) 12-in. x 20-in. x 6-in. pan
- Accommodates 50 rolls or 34 baked potatoes
- Resilient nonmagnetic stainless steel construction
- Removable stainless steel drawer rail supports
- Temperature range: 60-200 degrees F
- Up/down arrows simplify temperature control
- Heat indicator light
- Temperature display button
- Digital display
- Power switch
- Halo Heat technology
- Non-vented
- Requires level installation
- Requires 3-in. rear clearance
- Requires 2-in. top clearance
- Requires 1-in. clearance on each side
Dimensions & Utilities
- 1611⁄16 in. W x 313⁄16 in. D x 115⁄8 in. H
- 2.7 A, 0.64 kW
- 208-240 V/50/60 Hz/1 ph, includes NEMA 6-15P plug
Product Features
*Free shipping on Alto-Shaam 500-1DN within the 48 contiguous states.
From The Manufacturer
Halo Heat® Narrow Warming Drawer, free standing, one drawer, digital controller, (1) 12" x 20" pan, (50) rolls or (34) baked potatoes capacity, adjustable thermostat, stainless steel exterior, EcoSmart®, non-vented, cULus, UL EPH ANSI/NSF 4, CE, EAC
*Image may not depict product color, inclusions or accessories.
Alto-Shaam 500-1DN Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Controls | Thermostatic |
| Depth (in) | 31.19 |
| Doors | Drawers |
| Drawer Style | Narrow |
| Exterior Construction | Stainless Steel |
| Height (in) | 11.63 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Interior Width (in) | 15 |
| kW | 0.64 |
| NEMA | 6-15P |
| No. of Compartments | 1 |
| Overall Width (in) | 16.69 |
| Phase | 1 |
| Product | Warming Drawers |
| Product Type | Food Warming Equipment |
| Series | Halo Heat® |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 16.69 |
| Weight | 75.00 |
