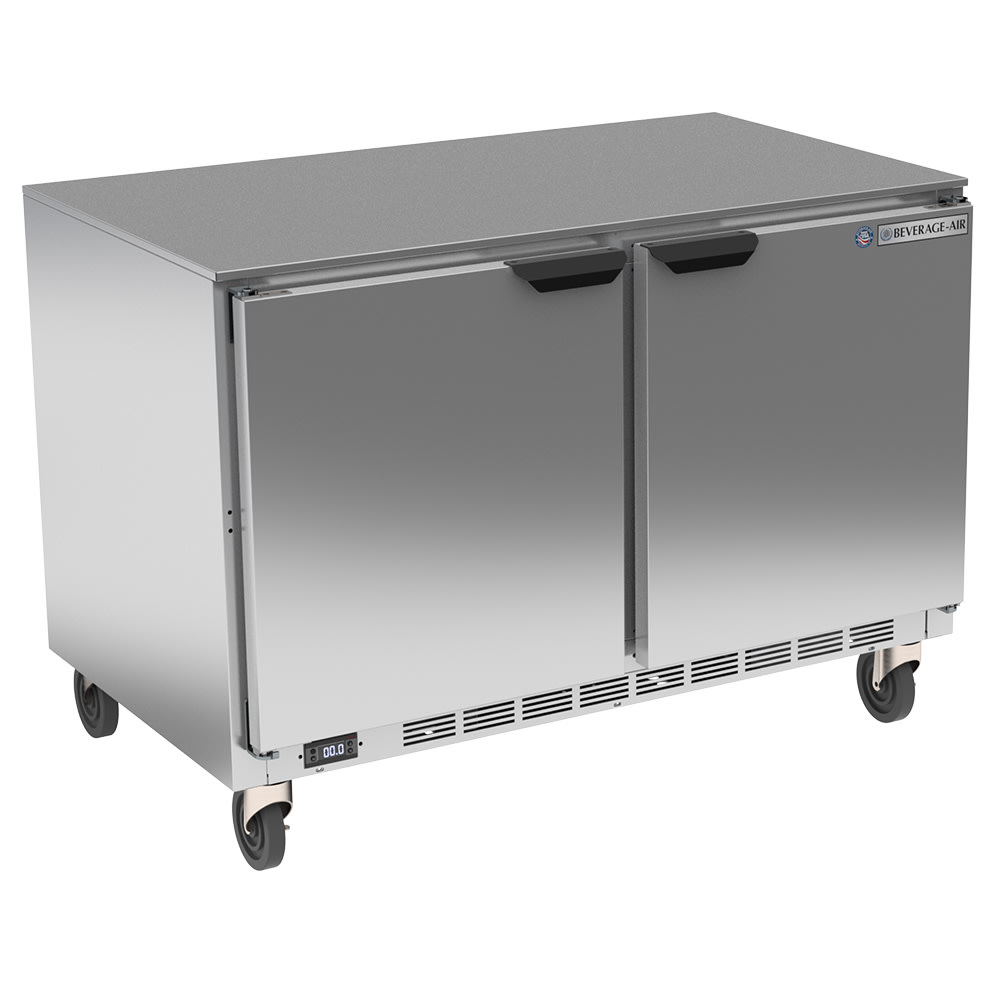

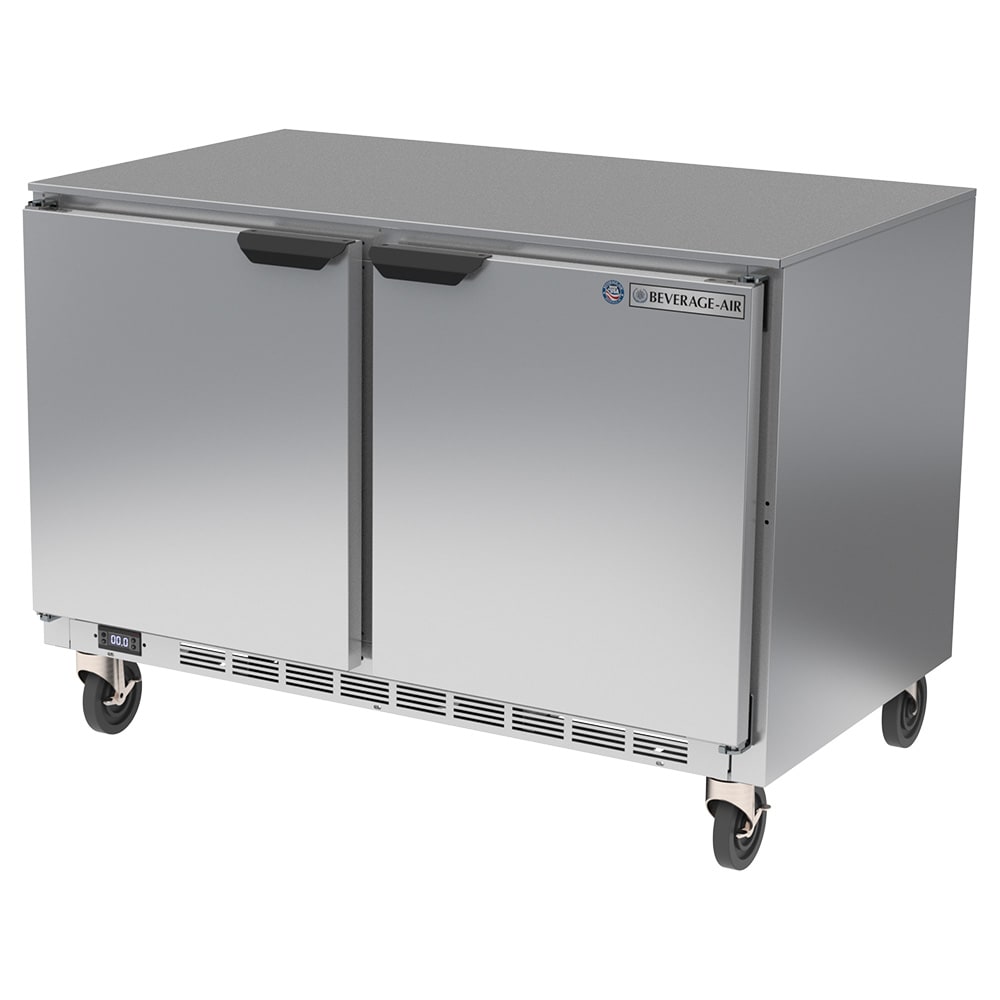

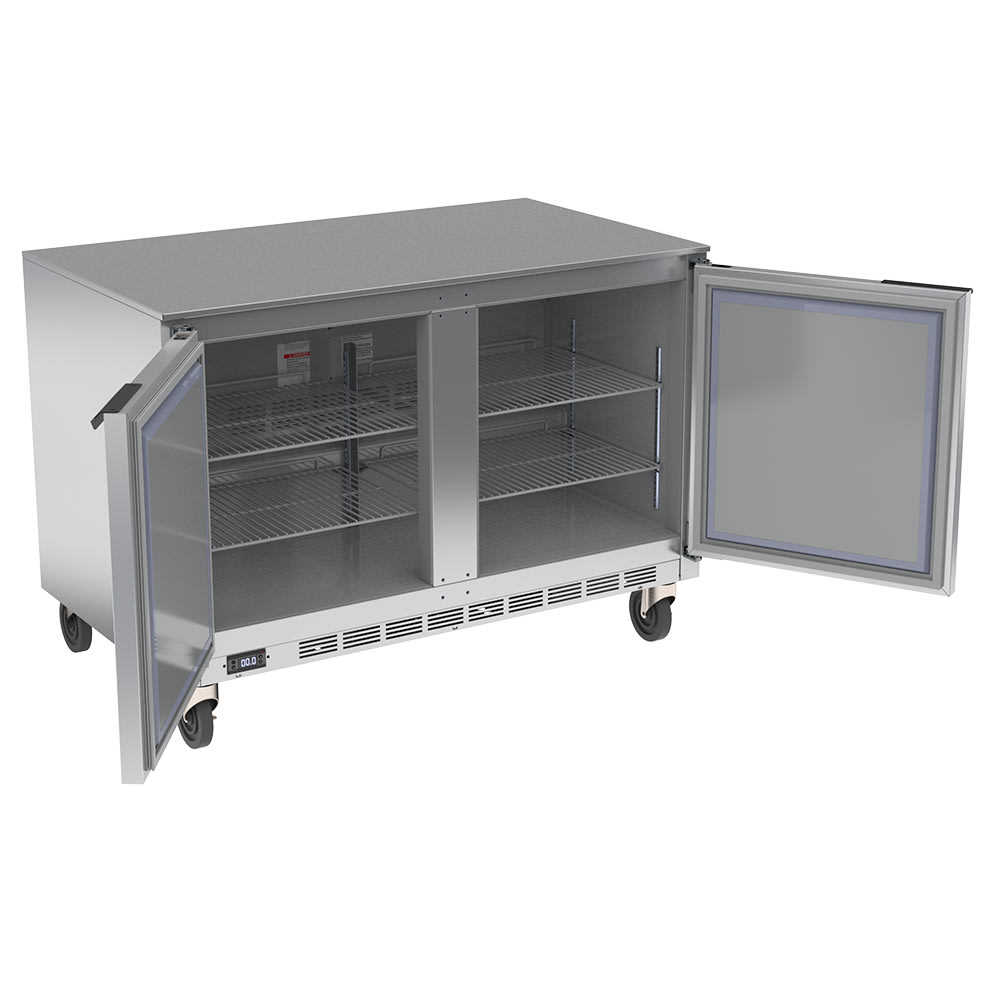

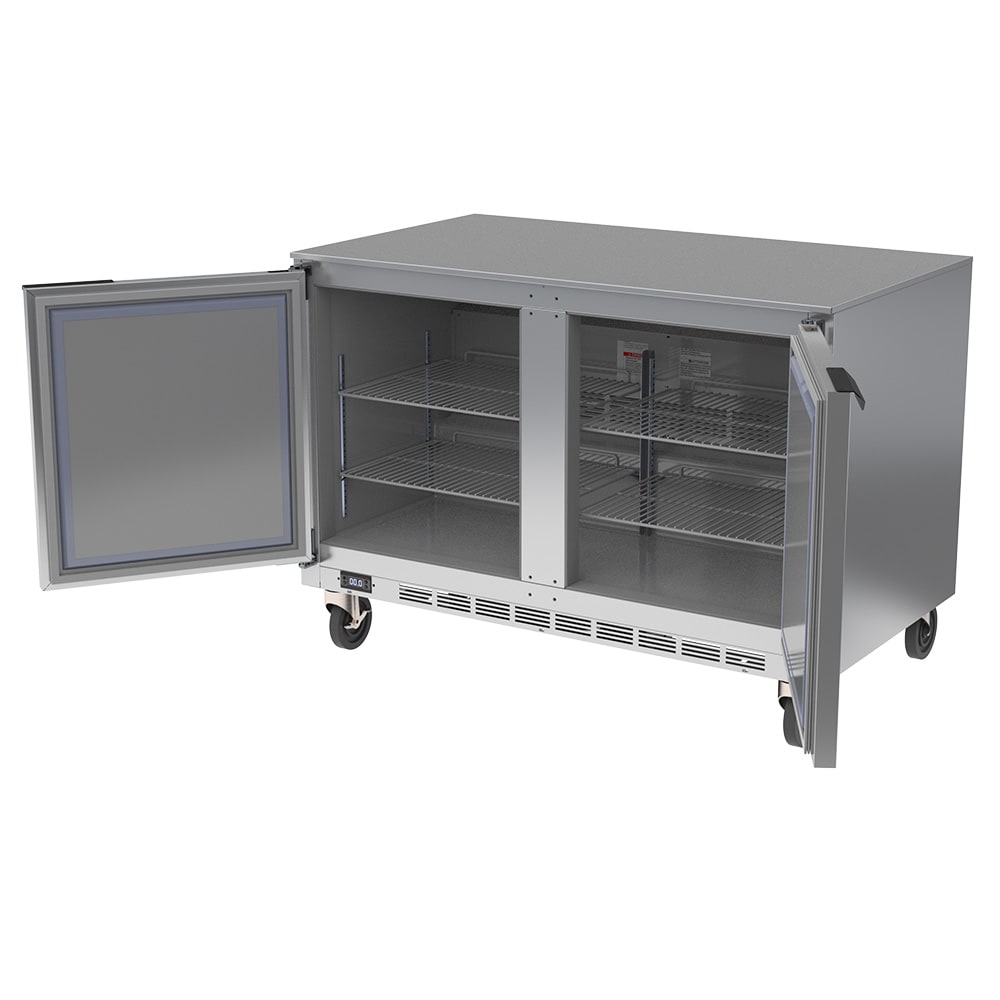

Beverage-Air UCF48AHC 48" W Undercounter Freezer w/ (2) Section & (2) Door, 115v

Providing operators full electronic control, the Beverage-Air UCF48AHC undercounter freezer features a ¹⁄₂-inch-thick sub-top. This unit has an interior thermometer and self-closing doors that stay open at 120 degrees; these doors have cartridge-style hinges and can be removed easily for cleaning and servicing. For a positive seal, magnetic gaskets are attached to each door, and they're equipped with painted aluminum door handles. The undercounter freezer is constructed with four 6-inch casters, two of which have brakes for stationary uses.

The Beverage-Air UCF48AHC commercial undercounter freezer's four wire shelves are coated in epoxy to extend their service life. Operators can reverse this unit's doors to accommodate different arrangements, and the undercounter freezer holds temperatures at or below 0 degrees Fahrenheit for optimal product preservation. To promote eco-friendless, this unit runs on R290 refrigerant. Its automatic defrost lowers employee labor and its epoxy-coated evaporator withstands extreme temperatures. Overall, the undercounter freezer measures 48 inches wide by 32 inches deep by 34⁵⁄₈ inches tall.

Product Details

• Front, sides, top, and doors made of stainless steel
• Galvanized steel back and base
• Corrosion-resistant aluminum interior liner
• Full electronic control
• ¹⁄₂-in.-thick sub-top
• Interior thermometer
• Self-closing doors equipped with cartridge-style hinges
• Doors stay open at 120 degrees
• Doors can be easily removed for servicing and cleaning
• Magnetic gaskets attached to each door
• Painted aluminum door handles
• 6-in. casters (2 with brakes)
• 4 epoxy-coated wire shelves promote air circulation
• Door is field reversible
• Holds temperatures at or below 0 degrees F
• Uses eco-friendly R290 refrigerant
• Automatic defrost
• Epoxy-coated evaporator coil
• 1,865-BTU/hour heat transfer capacity

Dimensions & Utilities

• Interior: 23¹⁄₂ in. D x 23 in. H
• Exterior: 48 in. W x 32 in. D x 34⁵⁄₈ in. H
• 2.5 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph

Product Features

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

From The Manufacturer

Undercounter Freezer, two-section, 48"W, 11.04 cu. ft., (2) doors, (4) shelves, stainless steel top with turned down edges, stainless steel exterior top, front, sides, doors & grille, aluminum interior, rear-mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/2 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA

*Image may not depict product color, inclusions or accessories.

Beverage-Air UCF48AHC Specifications

Spec Attribute	Spec Value
Manufacturer	Beverage-Air
Access	Door
Application	Undercounter Storage
Base	Casters
Color	Silver
Compressor Location	Rear
Cubic Feet	11.04
Depth (in)	32
Door Type	Solid
Height (in)	34.63
Hertz	60
Interior Construction	Aluminum
Sections	2
Suggested Use	Commercial
Voltage	115
Warranty	7-year Limited Parts & Labor; 7-year Compressor Parts
Width (in)	48
Series	Hydrocarbon Series
Refrigerant	R290 (Hydrocarbon)
No. of Doors	2
Phase	1
Rating	Better
Product	Undercounter Freezers
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Left/Right
Weight	245.00
