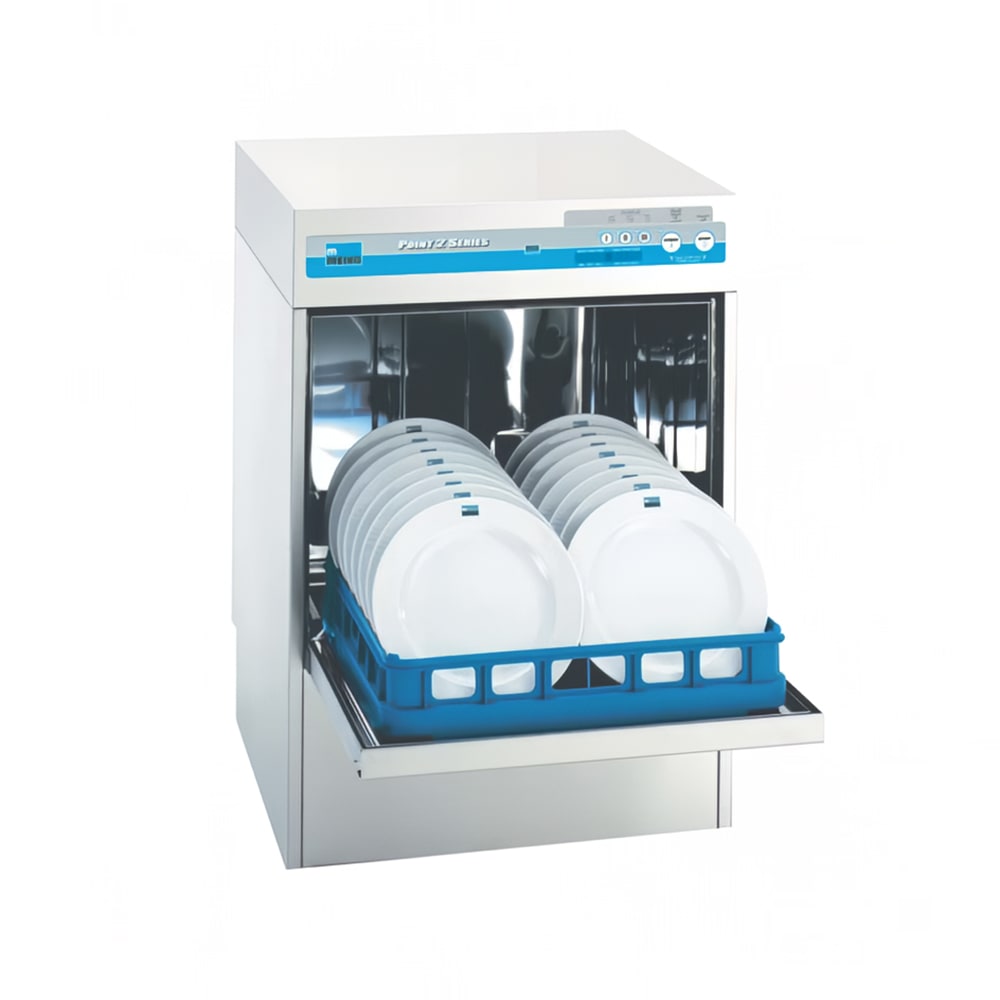

Meiko FV 40.2 Point 2 High Temp Undercounter Dishwasher w/ 37 Racks/hr Capacity, Built-in Booster, 208-230v/3ph

KaTom #: 112-FV4022083 • MPN: FV40.2 208-230/60/3
  • 112-FV4022083 Primary Thumbnail Image

Typically ships in 4 - 8 Business Days

Free Shipping Item

$9,565.50 /Each

Login or add to cart for the price

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 208V, 3 Phase

Christian Clark User Image
Ask a Foodservice Equipment Specialist

Meiko FV 40.2 Description

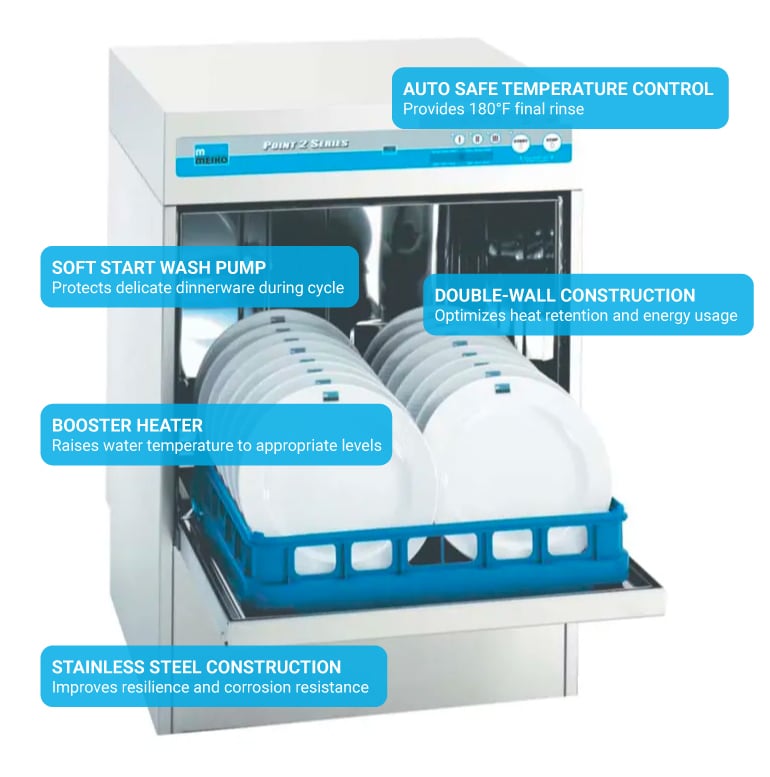

The Meiko FV 40.2 high-temp undercounter dishwasher uses front-mounted MIKE 2 electronic controls for one-touch operation and selection of 95-, 150-, or 210-second cycles. Digital displays show wash and rinse temperatures, while service diagnostics assist with troubleshooting. Auto Safe extends the wash cycle when necessary to give rinse water time to reach 180 degrees Fahrenheit. A built-in booster heater and rinse pump maintain consistent final rinse temperature and pressure for sanitizing.

The Meiko FV 40.2 dishwasher has corrosion-resistant 304 and 316L stainless steel construction with insulated double walls that retain heat. Its Active Plus two-stage filtration system removes food soil from wash water to improve cleaning and reduce detergent consumption. Stainless steel non-clogging wash and rinse arms distribute water throughout the chamber. Its Soft Start gradually builds wash pressure to help protect dishes and glasses from chipping and breaking. Built-in pumps dispense liquid detergent and rinse aid automatically, while a pumped drain removes wastewater.

  • Point 2 Series
  • Undercounter design
  • Hot water sanitizing
  • Can wash 37 racks, 925 dishes, or 1,332 glasses per hour
  • Uses 33⁄50 gal. per rack
  • Includes 1 peg rack and 1 combination flat rack
  • 16 9⁄16-in. interior clearance height
  • 304 and 316L stainless steel construction
  • Insulated double-wall exterior panels
  • Active Plus 2-stage filtration
  • Stainless steel non-clogging wash and rinse arms
  • Built-in liquid detergent and rinse aid pumps
  • Built-in booster heater
  • Type A air gap system
  • Required flow pressure: 8 7⁄10-72 1⁄2 PSI
  • Maximum drain flow: 15 GPM

  • Front-mounted MIKE 2 electronic controls
  • 1-touch operation and cycle selection
  • Digital wash and rinse temperature displays
  • Service diagnostics
  • Detergent empty indicator
  • Automatic fill, start, and reset
  • Automatic chamber rinse at shutdown
  • Aqua-Stop closes external fill if internal leak is detected

  • Selectable 95-, 150-, and 210-second cycles
  • Auto Safe extends wash cycle reach minimum 180-degree F sanitizing rinse temperature
  • Soft Start gradually builds wash pressure
  • Integrated rinse pump
  • 3 1⁄2-gal. wash tank and 1 7⁄10-gal. booster tank
  • Minimum wash temperature: 150 degrees F

  • 23 5⁄8 in. W x 23 5⁄8 in. D x 33 7⁄8 in. H
  • 32.1 A-34.9 A,
  • 208-230 V/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Meiko FV 40.2 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Point 2 Series Dishwasher, undercounter, 23-5/8"W x 23-5/8"D x 33-1/8"H, high temperature with built-in booster, fully automatic operation, approximately 37 racks/hour capacity, 0.66 gallons/rack, Auto-Safe temperature control for guaranteed sanitization, Soft Start fine China & glassware protection system, pumped drain & rinse, 3/4 HP wash pump, standard liquid detergent & rinse aid pumps, double wall stainless steel construction, (1) flat rack & (1) peg rack included, NSF, cETLus, ENERGY STAR®, 208-230v/60/3ph
Warranty Icon
1-year Parts & Labor

Meiko FV 40.2 Specifications

Documents
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Equivalent Items






Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It requires a 208–230 V, 60 Hz, 3-ph electrical connection.

— KaTom Foodservice Equipment Specialist

The combined electrical load is 8.32 kW across the wash tank heater, booster heater, and pumps.

— KaTom Foodservice Equipment Specialist

Overall dimensions measure 23 5⁄8 in. W x 23 5⁄8 in. D x 33 7⁄8 in. H.

— KaTom Foodservice Equipment Specialist

The interior clearance height measures 16 9⁄16 in.

— KaTom Foodservice Equipment Specialist

It accepts standard 20 in. x 20 in. racks.

— KaTom Foodservice Equipment Specialist

A 3⁄4-in. female garden hose water supply connection is required.

— KaTom Foodservice Equipment Specialist

An indirect connection to a 1 1⁄2-in. drain line is required.

— KaTom Foodservice Equipment Specialist

Yes, a minimum rear wall clearance of 1 in. is required.

— KaTom Foodservice Equipment Specialist

Three selectable cycle times are provided: 95, 150, and 210 seconds.

— KaTom Foodservice Equipment Specialist
