Jackson RACKSTAR 44 High Temp Conveyor Dishwasher - 223 Racks Per Hour, R-to-L Conveyor, 208v/3ph
Typically ships in 8 - 10 weeks
$24,821.00 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Jackson RACKSTAR 44 Description
The Jackson RACKSTAR 44 commercial dishwasher is made of stainless steel to withstand heavy use, simplify cleaning, and resist rust and corrosion. Its front dress panel hides the machine's inner components, while the double-wall insulated doors preserve heat for efficient operation. To account for irregular or sloped flooring, its bullet feet are adjustable, and for streamlined operation, this unit features self-cleaning wash arms, a self-draining wash pump, and a digital LED control panel.
With a 25-gallon wash tank, the Jackson RACKSTAR 44 high-temp dishmachine can sanitize 223 racks per hour to keep up with fast-paced kitchens. This conveyor-type, right-to-left unit features a Dual Rainbow Rinse™ system with an arched rinse arm design. When in Econo-rinse mode, this unit uses 0.35 gallons of water per rack, and when in Turbo-rinse mode, it uses 0.52 gallons. Overall, it measures 44 inches wide by 30 inches deep by 681⁄2 inches high.
Product Details
- Part of the RackStar® line
- Can wash 223 racks per hour
- Conveyor-type, single-tank unit
- Right-to-left configuration
- Electric tank heater
- Wash tank capacity: 25 gal.
- Econo-rinse system uses 0.35 gal. of water per rack
- Turbo-rinse system uses 0.52 gal. of water per rack
- Strong stainless steel construction
- Digital LED control panel
- EnergyGuard™ controls
- Fully automatic
- WSIR® cleaning system
- Front dress panel
- Dual Rainbow Rinse system with arched rinse arm design
- Self-draining stainless steel wash pump
- Splash shields
- Double-wall insulated doors retain heat
- Self-cleaning wash arms
- Adjustable vent cowl collars
- Adjustable bullet feet
- Exhaust vent fan control
- Strike plate table limit switch
- 193⁄4-in. chamber clearance
- Minimum wash temperature: 160 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 110-140 degrees F
- Required incoming flow pressure: 15 PSI
Dimensions & Utilities
- 44 in. W x 30 in. D x 681⁄2 in. H
- 51.9 A, 31⁄4 HP
- 208 V/60 Hz/3 ph
- Minimum waterline size: 1⁄2-in. IPS
- Minimum drain line size: 11⁄2-in. IPS

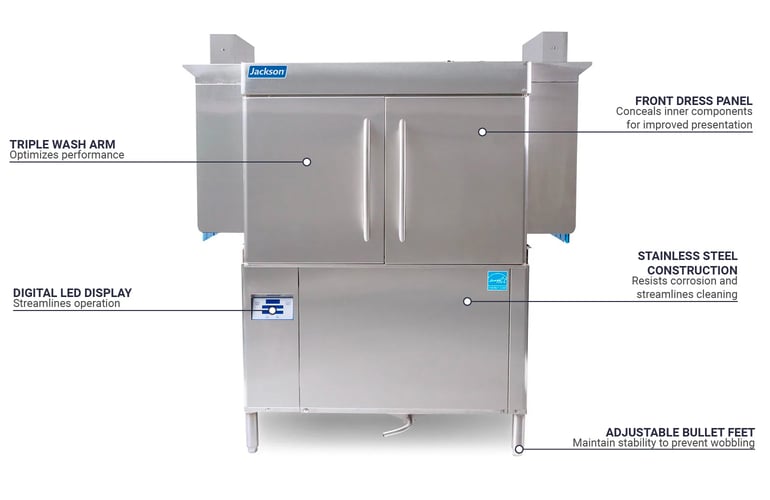

Product Features
From The Manufacturer
RackStar 44 Dishwasher, right to left conveyor type, high temperature sanitizing with electric tank heat, single tank design, approximately (223) racks/hour capacity (0.35 gallons per rack), fully automatic including auto-fill, adjustable conveyor speed, 19-3/4" clearance, digital temperature readout, double-wall insulated doors on front, EnergyGuard™ controls, Dual Rainbow Rinse™ - Econo (0.35 gpr) or Turbo (0.51 gpr), vent fan control, strike plate table limit switch, splash shields, stainless steel construction, adjustable bullet feet, 3 HP pump, 1/4 HP conveyor, NSF, cETLus, ENERGY STAR®, 208v/60/3ph
*Image may not depict product color, inclusions or accessories.
Jackson RACKSTAR 44 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Door Type | Swing |
| Heat | Electric |
| Height (in) | 69 |
| Hertz | 60 |
| Length (in) | 64 |
| Racks per Hour | 223 |
| Special Features | Auto Clean Cycle |
| Special Features | Insulated Door |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Series | RackStar® |
| Cavity Height (in) | 19.75 |
| Sanitizing | High Temp |
| Phase | 3 |
| Rating | Better |
| Weight | 802.00 |
