Jackson DYNASTAR HH-E VENTLESS (VER) DynaStar Ventless High Temp Door Type Dishwasher w/ 40 Racks/hr Capacity, Built-in Booster, 230v/1ph
Typically ships in 4 - 6 weeks
$22,250.00 /Each
Call for details!
Selected Voltage: 230V, 1 Phase
| 230V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 07-01-2026 to save before the price increases!

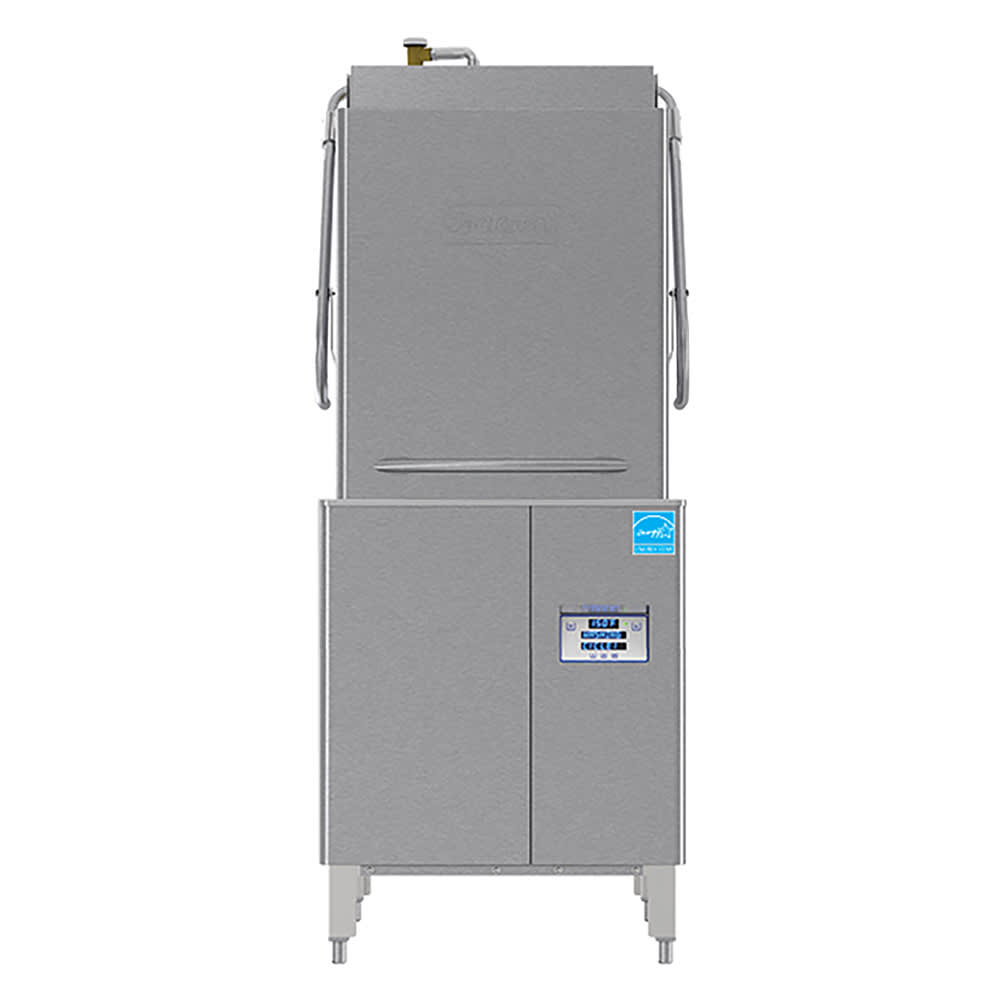

Jackson DYNASTAR HH-E VENTLESS (VER) Description
For durability and corrosion resistance, the Jackson DYNASTAR HH-E VENTLESS high-temp dishwasher is constructed of stainless steel. It's mounted on adjustable bullet feet to maintain stability on uneven flooring and features front and side dress panels that protect its inner components and create a smooth, streamlined look. Great for high-volume kitchens, it washes as many as 40 racks per hour, and this unit features a built-in booster heater with a Sani-Sure™ final rinse system to ensure thorough sanitization.
As a ventless, door-type unit, the Jackson DYNASTAR HH-E VENTLESS commercial dishmachine measures 30 1⁄2 inches wide by 32 1⁄8 inches deep by 71 1⁄2 inches high. It features an 8-gallon wash tank and 1.66-gallon booster tank, and to ease operation and optimize performance, it features a two-pass energy recovery system, digital LED display, and triple wash arm. Its door interlock mechanism ensures the door remains safely locked throughout the wash cycle.
- Part of the DynaStar® line
- Sanitizes 40 racks per hour (38 with suggested NSF load time)
- Ventless, door-type unit
- 8-gal. wash tank capacity
- 1.66-gal. booster tank capacity
- Econo-rinse system uses 0.72 gal. of water per rack
- Turbo-rinse system uses 0.89 gal. of water per rack
- Built-in booster heater with Sani-Sure final rinse system
- Door interlock mechanism remains locked throughout cycle
- Automatic tank fill
- 3 timed cycles plus delime cycle
- Digital LED display
- Resilient stainless steel construction
- 2-pass energy recovery system
- Vent fan control
- Adjustable bullet feet
- High-limit thermostat and low-water protection
- Front and side dress panels conceal inner components
- Interchangeable scrap baskets
- 27-in. chamber clearance
- Onboard service diagnostics
- Pumped rinse for consistent flow
- Triple wash arm optimizes performance
- Stainless steel nozzles
- Detergent/rinse additives signal connection fuse box
- Minimum wash temperature: 150 degrees F
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming flow pressure: 15-65 PSI
- Minimum wall clearance: 7⁄16 in.
- 30 1⁄2 in. W x 32 1⁄8 in. D x 71 1⁄2 in. H
- 83 A, 16.4 kW, 2 HP
- 230 V/60 Hz/1 ph
- Required incoming water connection: 1⁄2-in. NPT
- 1 1⁄2-in. NPT drain
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR HH-E VENTLESS (VER) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, ventless, tall chamber, high temperature sanitizing with built-in booster heater (40-70°F rise), 30-1/2"W x 32-1/8"D x 71-1/2"H, approximately (40) racks/hour, Sani-Sure™ final rinse system, 27" chamber clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, vent fan control, onboard service diagnostics, energy recovery system, triple wash arm system, 2 hp stainless steel wash pump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®
Watch a video about this product
Jackson DYNASTAR HH-E VENTLESS (VER) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 27 |
| Control Location | Bottom |
| Depth (in) | 32.13 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 71.5 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Built In Booster |
| Special Features | Ventless |
| Type | High Temp |
| Voltage | 230 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30.5 |
| Weight | 411.00 |
