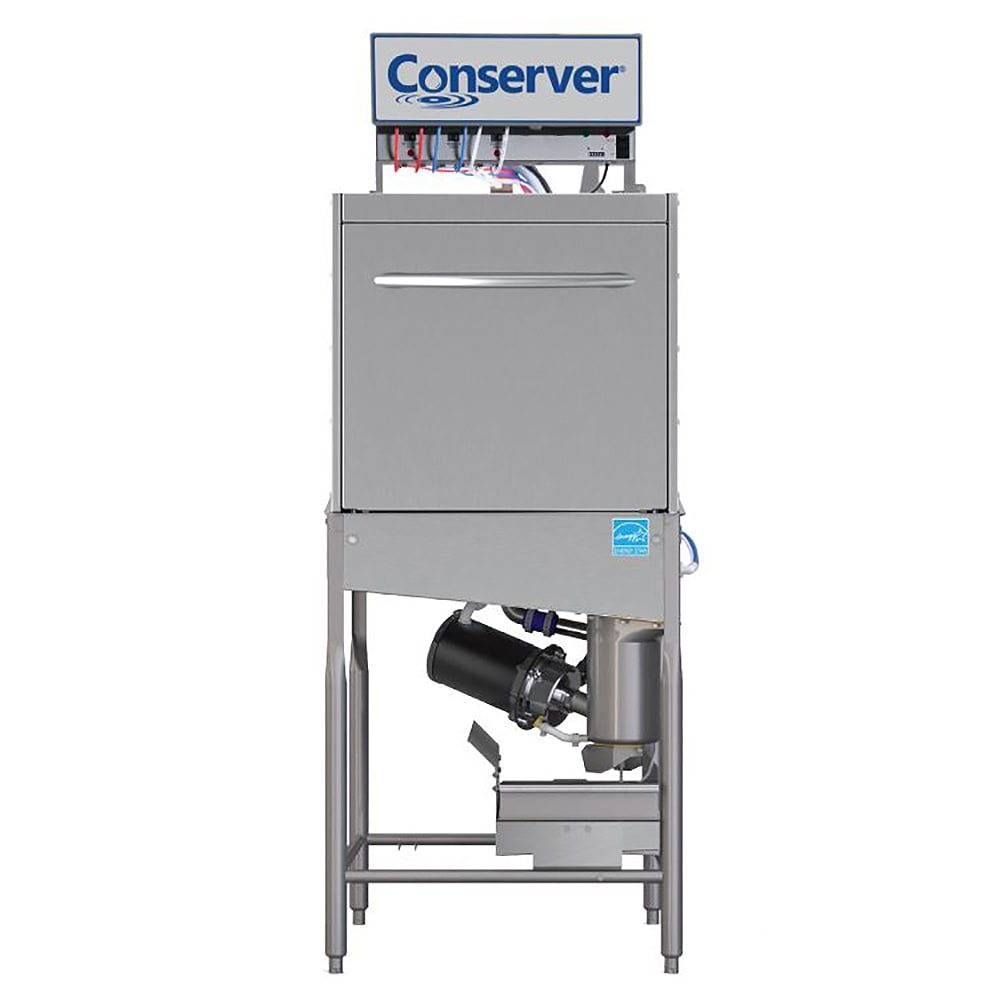

Jackson CONSERVER XL-E-FL Conserver® Low Temp Door Type Dishwasher w/ 39 Racks/hr Capacity, 115v
Typically ships in 4 - 6 weeks
$6,334.00 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 07-01-2026 to save before the price increases!
Jackson CONSERVER XL-E-FL Description
To save space in compact kitchens, the Jackson CONSERVER XL-E-FL door-type dishmachine measures 25 1⁄4 inches wide by 30 5⁄16 inches deep by 68 1⁄2 inches high, featuring a front-loading, door-type design. Its 17 15⁄16-inch vertical interior clearance accommodates one rack per cycle. To preserve its original look through rigorous use, its stainless steel construction resists rust, corrosion, and wear and can be wiped clean between uses. Its two front bullet feet can be raised or lowered to stabilize on uneven flooring, while its two flanged rear feet ensure the unit remains in place throughout operation.
The Jackson Conserver XL-E-FL low-temperature dishwasher requires chemical sanitization to meet safety standards and must be connected to 140-degree-Fahrenheit incoming water. This unit can clean 41 racks per hour and uses 1.02 gallons of water per cycle. Upper and lower stainless steel wash and rinse arms clean dishes thoroughly and can be interchanged or removed as needed. Between wash and rinse cycles, the self-draining stainless steel pump removes soil and detergent residue. The fill-and-dump design replenishes the unit with fresh water every rinse cycle, and operators can remove food debris from the waste accumulator and scrap screen as needed. To streamline operation, the top-mounted control panel includes an electronic timer, low-chemical indicator lights, a wash thermometer, and a delimer switch.
- Part of the Conserver® collection
- Cleans 41 racks per hour
- 1.02-gal. wash tank capacity
- 1 rack per load
- Uses 1.02 gal. of water per rack in each cycle (41.82 gal. per hour)
- Front-load, door-type design
- Low-temperature chemical sanitization
- 17 15⁄15-in. interior clearance
- Auto-start mechanism
- Convenient top-mounted controls
- Wash/rinse thermometer
- Electronic timer
- Delimer switch
- Indicator lights for low chemical levels
- Interchangeable upper and lower stainless steel wash/rinse arms
- 3 built-in chemical dispenser pumps
- Priming switches
- Fill-and-dump design ensures expels dirty water each cycle
- Self-draining stainless steel pump
- Internal sump
- Built-in waste accumulator
- Removable scrap screen
- Air gap instead of vacuum breaker
- Door switch
- Durable stainless steel construction
- (2) 3-in. adjustable front bullet feet
- (2) 3-in. rear flanged feet
- Recommended wash and rinse operating temperature: 140 degrees F
- Required incoming flow pressure: 15-25 PSI
- Minimum chlorine required: 50 PPM
- 25 1⁄4 in. W x 30 5⁄16 in. D (50 5⁄16 in. when door is open) x 68 1⁄2 in. H (78 in. when door is open)
- 10 A, 1 HP
- 115 V/60 Hz/1 ph
- Minimum incoming water-line size: 1⁄2-in. IPS
- Minimum drain-line size: 2-in. IPS
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson CONSERVER XL-E-FL within the 48 contiguous states.
From The Manufacturer
Conserver® Dishwasher, Door Type, front-loading, 25.25"W x 30.31"D x 68.5"H, low temperature chemical sanitizing, approximately (39) racks/hour, built-in scrap accumulator, removable screen, auto-start, stainless steel construction, 3" adjustable stainless steel bullet feet, 1 HP wash pump, cETLus, NSF, ENERGY STAR®, 115v/60/1ph
Jackson CONSERVER XL-E-FL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.87 |
| Control Location | Top |
| Depth (in) | 30.31 |
| Design | Standard |
| Door Type | Swing |
| Heat | Electric |
| Height (in) | 68.5 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 39 |
| Rating | Better |
| Series | Conserver® |
| Special Features | Elevated Control Panel |
| Special Features | Front Loading |
| Type | Low Temp |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30.31 |
| Weight | 240.00 |
