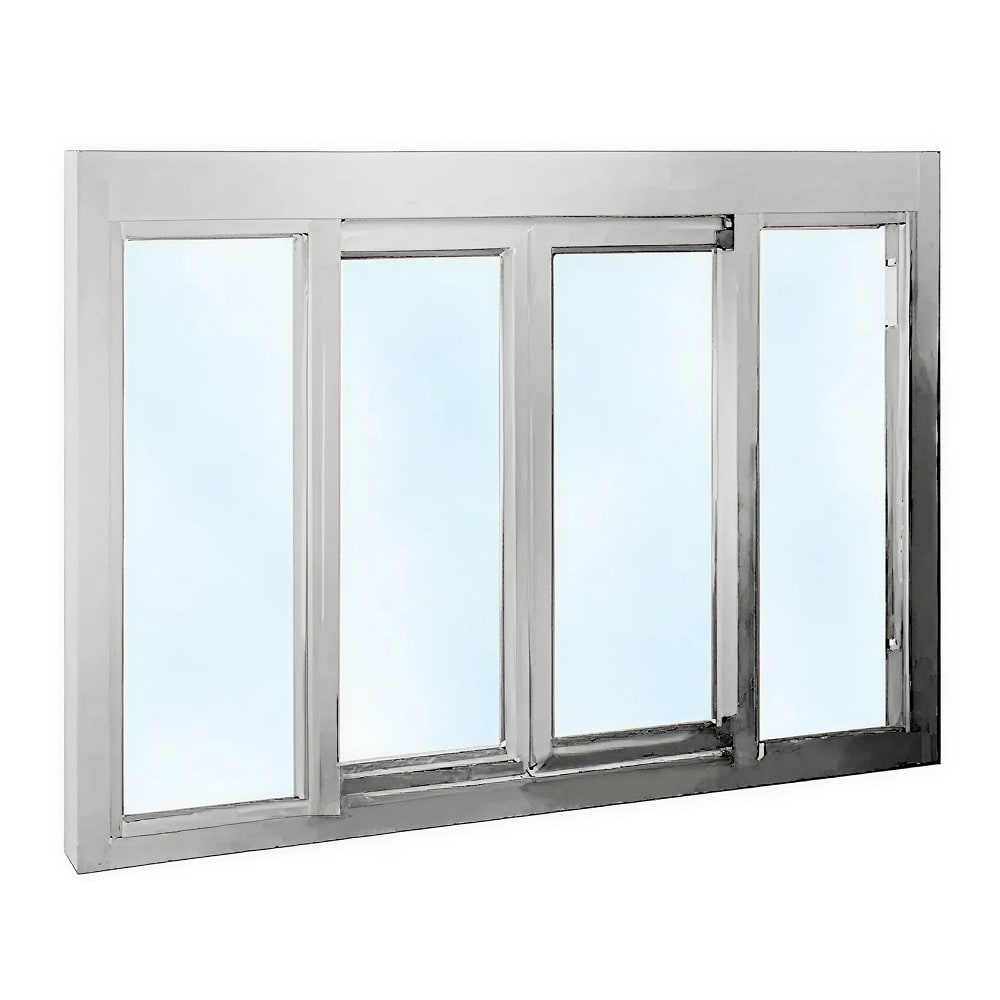

Ready Access 65162202 Model 131 53 1/2"W x 37 3/4"H Silver Bi-Parting Manual Drive-Thru Window
Retail Price: $2,534.00
$1,559.00 /Each
Selected Color: Silver
Ready Access 65162202 Description
The Ready Access Model 131 manual drive-thru window is designed for flushmount installation in drive-thru or walk-up service settings. Its bi-parting configuration features two doors that slide open from the center, providing a clear 18-inch-wide by 31-inch-high service opening. With a 53 1⁄2-inch width and 37 3⁄4-inch height, this unit fits rough openings measuring 54 inches wide by 38 1⁄4 inches high. The frame is made of clear-finish aluminum, and the panels are fitted with 1⁄4-inch clear tempered glass. Manual operation with a self-closing mechanism ensures smooth function during service. Locking and self-latching features add security during off-hours or downtime.
Product Details
- Part of the 131 series
- Clear anodized aluminum frame
- 1⁄4-in. clear tempered glass
- Manual open with self-close function
- Locking and self-latching design
- Overall dimensions: 53 1⁄2-in. W x 37 3⁄4-in. H x 4-in. D
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
DRIVE THRU or WALK UP SERVICE WINDOW, MODEL 131, 1/4" Clear Tempered Glass, Manual Open Self Close, Bi-Parting, Clear Aluminum Frame, 53.5"W x 37.75"H
Ready Access 65162202 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ready Access |
| Color | Silver |
| Direction | Bi-Parting |
| Operation | Manual Open w/ Self Close |
| Overall Depth (in) | 4 |
| Overall Height (in) | 37.75 |
| Overall Width (in) | 53.5 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 38.25 |
| Rough Opening Width (in) | 54 |
| Series | 131 Series |
| Service Opening Height (in) | 31 |
| Service Opening Width (in) | 18 |
| Special Features | Lockable |
| Special Features | Self Latching |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 130.00 |
