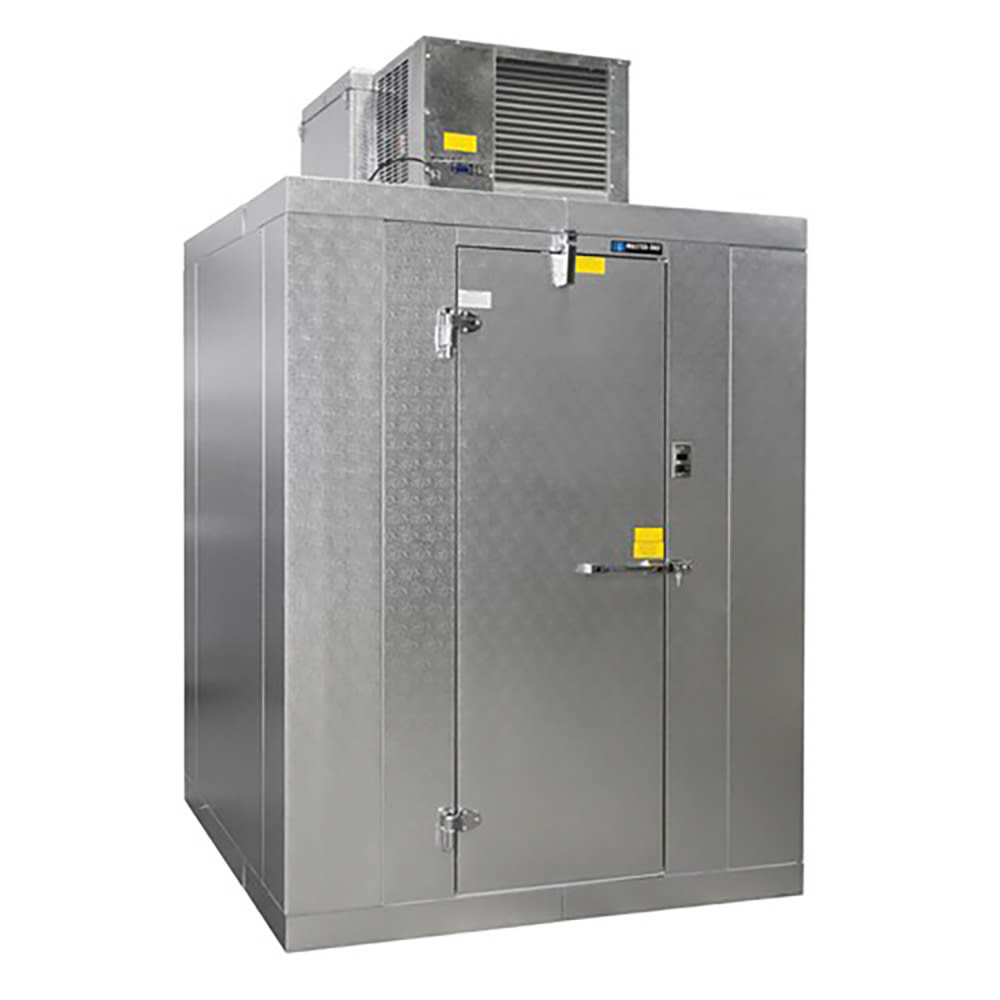

Master-Bilt QSF77814-C 8' x 14' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$20,709.09 /Each
Selected Hinge: Left Hinge
Master-Bilt QSF77814-C Description
For expanded frozen storage, the Master-Bilt QSF77814-C indoor walk-in freezer provides 675 cubic feet of capacity within its 8-foot-by-14-foot enclosure. Its 4-inch-thick insulated panels use HFO polyurethane insulation to limit heat transfer through the cabinet. For demanding storage loads, the smooth aluminum interior floor supports uniformly distributed loads of 800 pounds per square foot.
Supporting low-temperature holding, the Master-Bilt QSF77814-C walk-in freezer uses a CPF175PC-S-4 ceiling-mounted refrigeration system delivering 6,350 BTUH at -10 degrees Fahrenheit. It features high-efficiency EC evaporator fan motors that circulate air throughout the enclosure. The flush evaporator coil keeps refrigeration components outside the storage area, preserving interior room for frozen inventory.
- 675-cu.-ft. capacity
- Indoor configuration
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Left-hinged door
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Perimeter door heater wire
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO™ system
- CPF175PC-S-4 indoor freezer system
- 6,350-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp® electronic controller
- Automatic defrost
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-32 wall and ceiling panels
- R-32 insulated door
- R-28 insulated floor
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 8 ft. W x 14 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 18 3⁄4 in. H
- 10.7 A, 230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug
- 1.73 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF77814-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF77814-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 14 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1990.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 14 ft. L x 8 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It uses R290 (Hydrocarbon) refrigerant.
Yes, the door is self-closing.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ｰF.
It requires 230V/60 hz/1-ph power.
