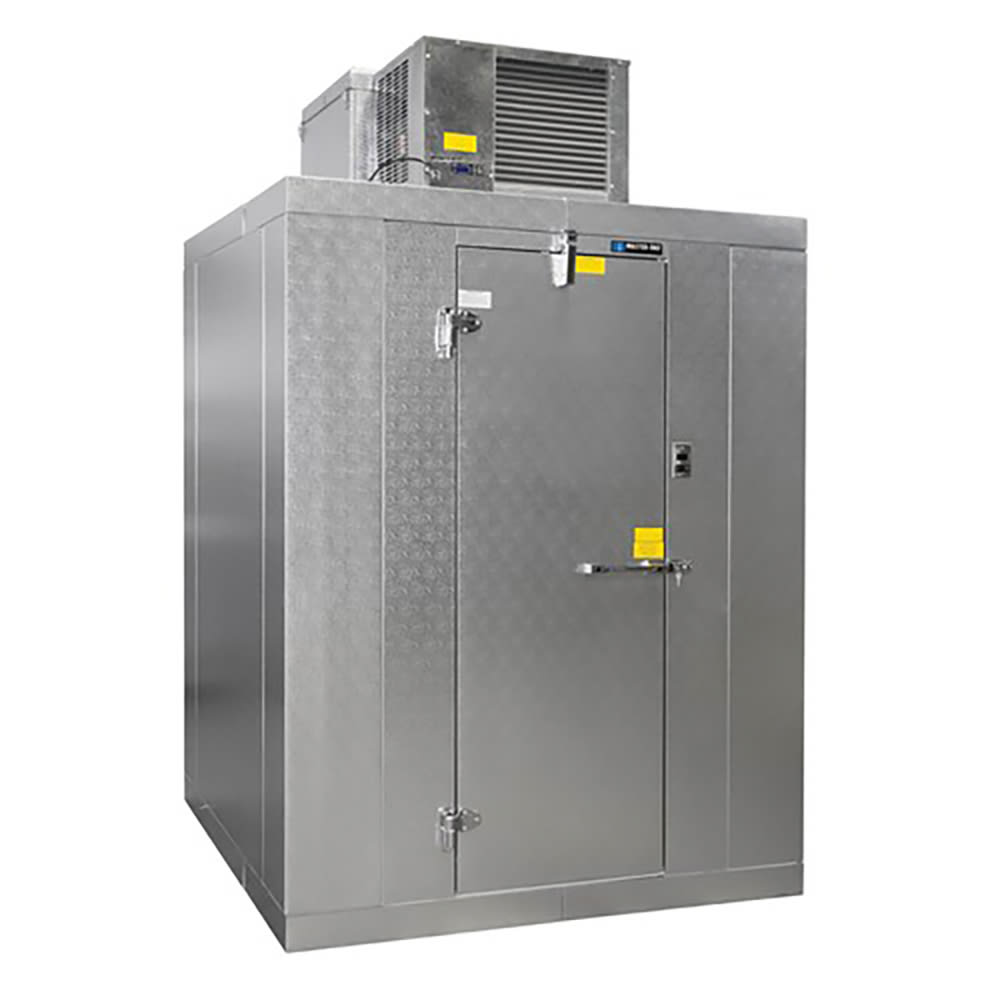

Master-Bilt QSF77610-C 6' x 10' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$14,518.35 /Each
Selected Hinge: Right Hinge
Master-Bilt QSF77610-C Description
Fitted with a 26-inch right-hinged, self-closing door, the Master-Bilt QSF77610-C indoor walk-in freezer mounts on cam-lift hinges, offering a controlled entry point and tight closure. A locking deadbolt handle secures the unit between deliveries or inspections, while polyurethane insulation slows cold-air escape. Inside the 344-cubic-foot cavity, LED lighting casts even illumination across the interior to boost label readability. Automatic defrost cycles clear ice from the evaporator to retain consistent airflow.
The Master-Bilt QSF77610-C steel freezer measures 10 feet long by 6 feet wide by 7 feet 7 inches high and includes a stucco-embossed finish that conceals surface abrasions. Driven by a self-contained Capsule Pak ECO™ system, it diffuses R290-cooled air to stabilize the cabinet at -10 degrees Fahrenheit. LogiTemp® electronic controls with a digital thermometer facilitate accurate temperature monitoring, while an aluminum floor provides a flat base to stop items from rolling off shelves.
- 344-cu.-ft. capacity
- 26-ga. stucco-embossed steel construction
- Polyurethane insulation
- Aluminum floor
- 26-in. right-hinged, self-closing door
- Cam-lift hinges
- Locking deadbolt handle
- Digital thermometer with light switch
- LED lighting
- Self-contained, top-mounted Capsule Pak ECO refrigeration
- Automatic defrost
- LogiTemp electronic controls
- Holding temperature: -10 degrees F
- Uses R290 refrigerant
- 10 ft. L x 6 ft. W x 7 ft. 7 in. H
- 15.3 A
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF77610-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF77610-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 10 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1609.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 10 ft. L x 6 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It has a 26 in.-wide door opening.
The door is right hinged.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ï½°F.
It uses R-290 refrigerant.
Yes, it has a self-closing door.
