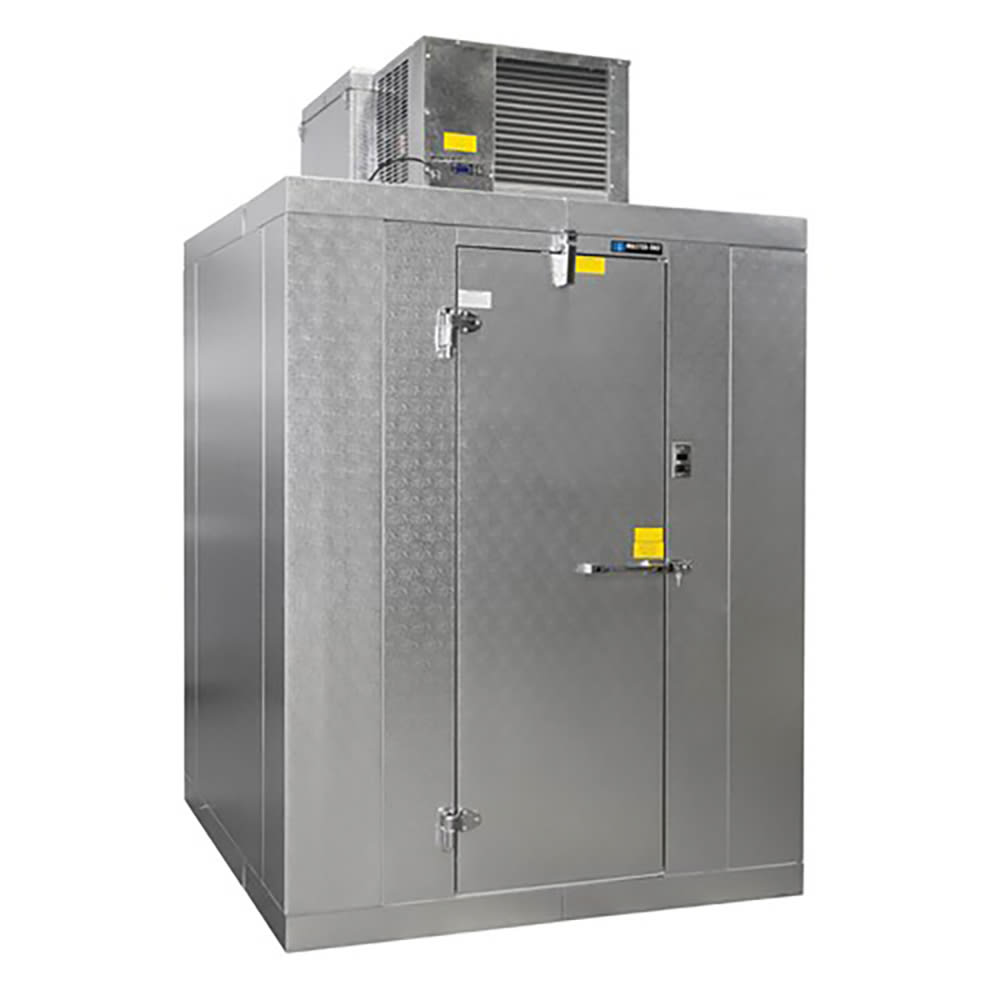

Master-Bilt QSB77814-C 8' x 14' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
$17,299.15 /Each
Selected Hinge: Right Hinge
Master-Bilt QSB77814-C Description
This Master-Bilt QSB77814-C indoor walk-in cooler has a self-closing right-hinged door centered on the 8-foot wall for accessing refrigerated inventory. Its stepped-profile design creates a barrier to airflow around the opening. For additional protection, the magnetic gasket seals against the frame, helping limit refrigerated-air exchange when the door remains closed between routine product retrieval periods.
The Master-Bilt QSB77814-C indoor walk-in cooler features a LogiTemp® electronic controller for precise temperature management. Its digital readout and four-button overlay support system setup and navigation. The electronic control provides automatic defrost to manage frost removal, while the factory-installed controller eliminates additional installation and provides operators with convenient access to refrigeration settings during routine use.
- 675-cu.-ft. capacity
- 26-ga. corrosion-resistant, stucco-embossed steel body
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- Smooth aluminum interior floor
- Fiberglass-reinforced plastic heated threshold
- Self-closing, flush-mounted door
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- High-output, low-profile LED light above door
- Ceiling-mounted, self-contained Capsule Pak ECO™ system
- CPB100PC-S-0 indoor cooler system
- 8,800-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp electronic controller
- Automatic defrost
- 8 ft. W x 14 ft. D x 7 ft. 7 in. H
- 15.3 A
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSB77814-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSB77814-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Right |
| Length (ft) | 14 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 2205.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The exterior measures 8 ft. W x 14 ft. D x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes refrigeration.
It uses a capsule Pak Refrigeration CPB100PC-S-0.
It is designed to maintain 37°F.
It uses R290 refrigerant.
Yes, the door is self-closing.
It has a 26 in. wide door opening.
The door is right-hinged.
The interior and exterior panels use 26 gauge embossed coated steel interior & exterior finish.
