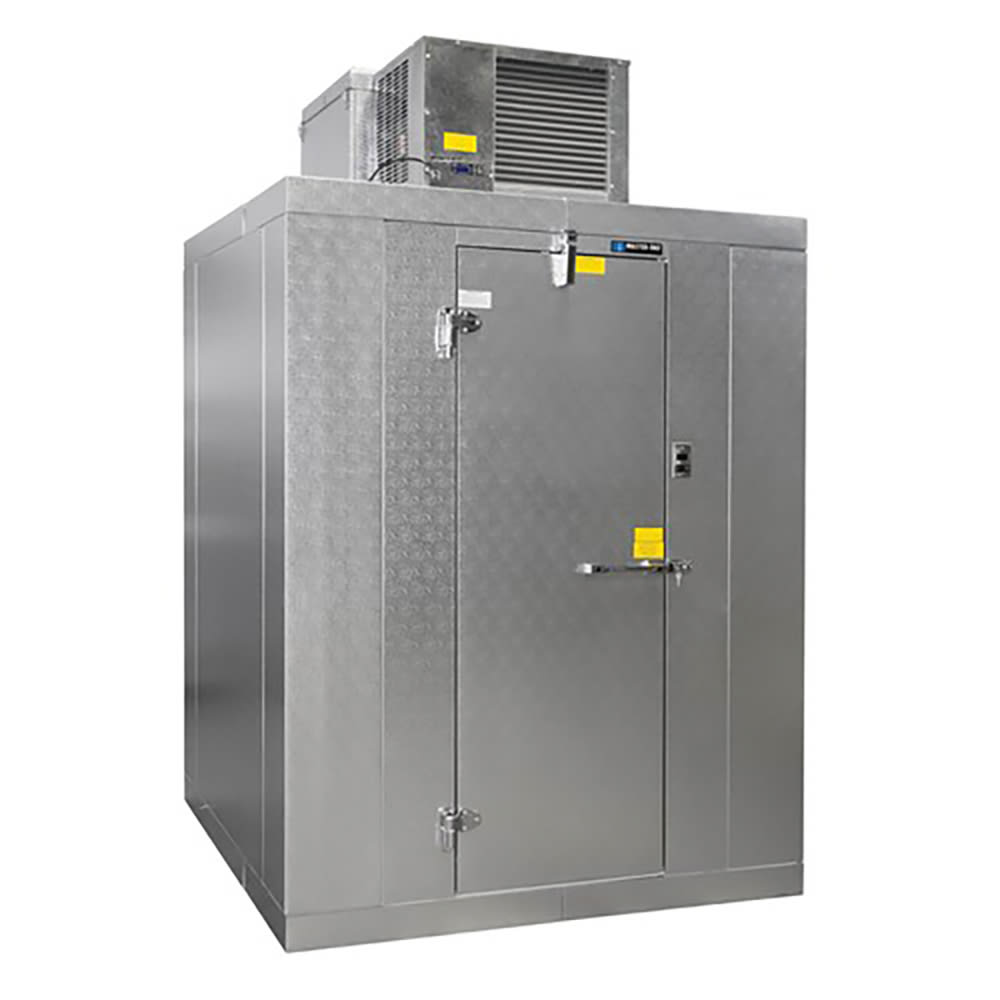

Master-Bilt QSB7768-C 6' x 8' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,779.89 /Each
Selected Hinge: Right Hinge
Master-Bilt QSB7768-C Description
The Master-Bilt QSB7768-C indoor walk-in cooler has a smooth aluminum interior floor that supports uniformly distributed loads of 800 pounds per square foot. Its foamed-in-place cam-locking fasteners connect the modular panels to create an airtight seal. For additional protection, continuous perimeter panel gaskets extend seamlessly around the corners, helping maintain the enclosure during refrigerated storage.
To support refrigerated holding, the Master-Bilt QSB7768-C walk-in cooler features a ceiling-mounted, self-contained Capsule Pak ECO™ refrigeration system. Its CPB050PC-S-0 system delivers 4,100 BTUH at 90-degree-Fahrenheit ambient conditions. The automatic condensate evaporator uses a condensate pan with wicking pads and forced condenser-fan air to remove collected moisture without requiring plumbing for indoor operation.
- 270-cu.-ft. capacity
- Indoor walk-in cooler
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Right-hinged door centered on 6-ft. wall
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- Stepped-profile door design
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO system
- CPB050PC-S-0 indoor cooler system
- 4,100-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp® electronic controller
- Automatic defrost
- No plumbing required
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-25 wall and ceiling panels
- R-25 insulated door
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 6 ft. W x 8 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 14 23⁄25 in. H
- 6.9 A, 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
- 0.88 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSB7768-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSB7768-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Right |
| Length (ft) | 8 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1177.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The exterior measures 6 ft. W x 8 ft. D x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes refrigeration.
It uses a capsule Pak Refrigeration CPB050PC-S-0.
It is designed to maintain 35°F.
It uses R290 refrigerant.
Yes, the door is self-closing.
It has a 26 in. wide door opening.
The door is right-hinged.
The interior and exterior panels use 26 gauge embossed coated steel interior & exterior finish.
