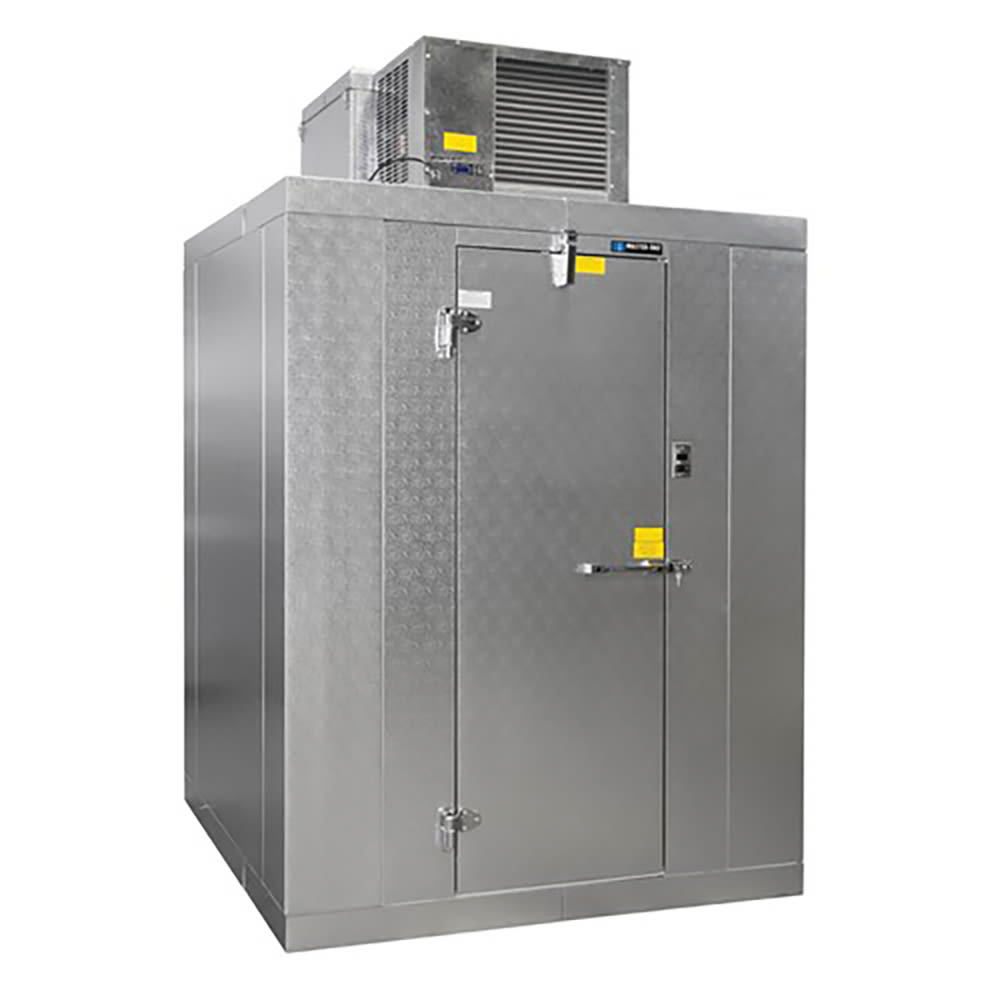

Master-Bilt QSB7766-C 6' x 6' Indoor Walk-In Cooler w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$10,474.15 /Each
Selected Hinge: Right Hinge
Master-Bilt QSB7766-C Description
For interior illumination, the Master-Bilt QSB7766-C indoor walk-in cooler features a high-output, low-profile LED light positioned above the door. Its digital thermometer provides an exterior temperature readout, and the integrated light switch controls illumination during access. For added convenience, the fiberglass-reinforced plastic heated threshold provides a durable surface at the doorway during routine refrigerated storage operation.
The Master-Bilt QSB7766-C walk-in cooler uses a CPB050PC-S-0 ceiling-mounted refrigeration system delivering 4,100 BTUH at 90-degree-Fahrenheit ambient conditions. It features R290 hydrocarbon refrigerant and an air-cooled condensing unit for heat rejection. The high-efficiency EC evaporator fan motors circulate refrigerated air throughout the enclosure, supporting consistent cooling across stored inventory during regular operation.
- 196-cu.-ft. capacity
- Indoor walk-in cooler
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Right-hinged door centered on 6-ft. wall
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- Stepped-profile door design
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO™ system
- CPB050PC-S-0 indoor cooler system
- 4,100-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp® electronic controller
- Automatic defrost
- No plumbing required
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-25 wall and ceiling panels
- R-25 insulated door
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 6 ft. W x 6 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 14 23⁄25 in. H
- 6.9 A, 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
- 0.88 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSB7766-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSB7766-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Base | Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Hinge Configuration | Right |
| Length (ft) | 6 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 991.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The exterior measures 6 ft. W x 6 ft. D x 7 ft. 7 in. H.
It is designed for indoor installation.
Yes, it includes a floor.
It includes refrigeration.
It uses a capsule Pak Refrigeration CPB050PC-S-0.
It is designed to maintain 35°F.
It uses R290 refrigerant.
Yes, the door is self-closing.
It has a 26 in. wide door opening.
The door is right-hinged.
The interior and exterior panels use 26 gauge embossed coated steel interior & exterior finish.
