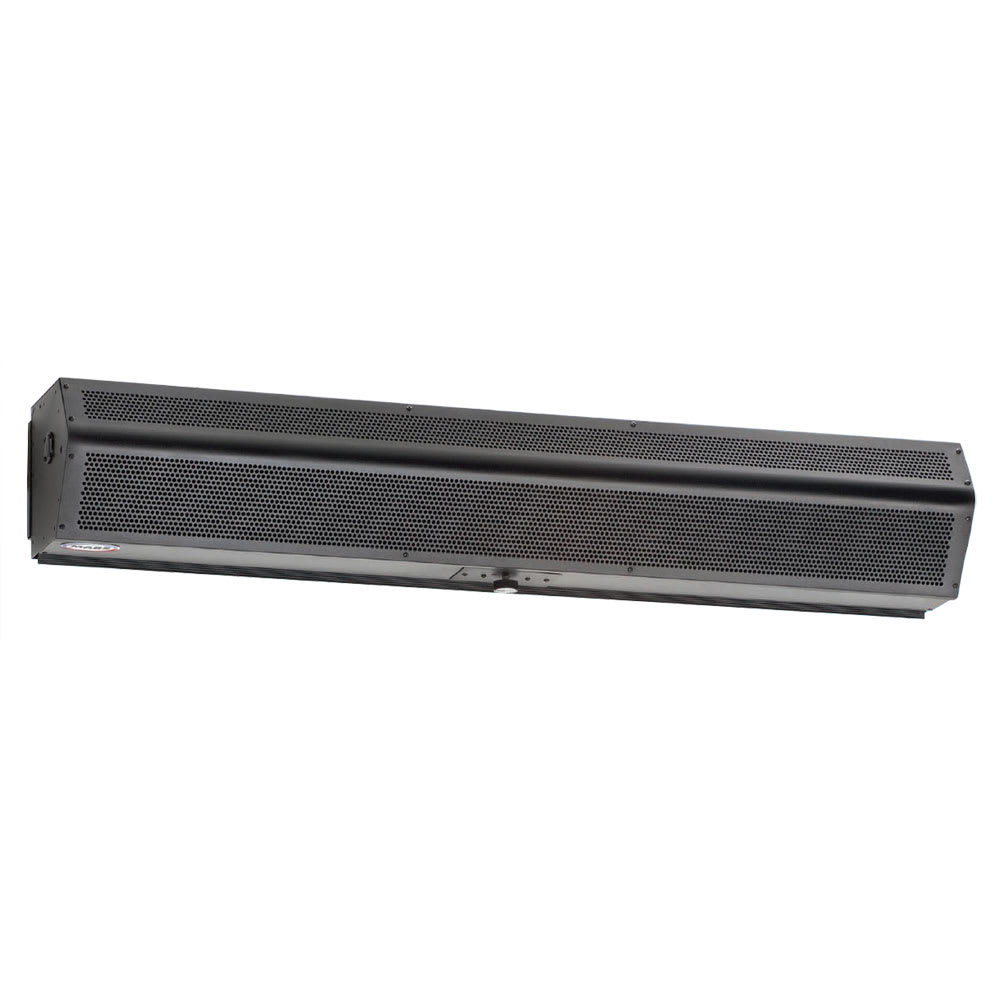

Mars LPV272-1UA-OB/99-014 72" Unheated Air Curtain - Auto Switch, Low Profile, Black

KaTom #: 049-LPV2721UAOB99014 • MPN: LPV272-1UA-OB/99-014

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $1,078.00
$850.67 / Each

Mars LPV272-1UA-OB/99-014 Description

The Mars Air Systems 72 inch unheated air curtain is part of the LoPro Series 2, which uses a 1/6 horsepower motor that operates at a low noise level to not disrupt employees or customers when they enter or exit. This air curtain maintains the temperature of the interior up to eight feet from the ground and keeps out flying insects up to seven feet. The low profile design of this air curtain is easy to incorporate, install, and has a variable speed control so you can create the perfect balance between noise and airflow.

Standard Features and Benefits:

  • Unheated
  • For doors that are 72-in. W
  • This is a double unit that is joined with a 2-in. mounting bracket in the center that must be field installed
  • Speed controller is located on the right hand unit that controls both units
  • Continuous duty, direct drive, double shaft motors have an automatic thermal overload protection to protect from burnout
  • Creates environmental separation for doors up to 8-ft. H by minimizing dirt, drafts, and fumes
  • Prevents flying insects from entering for doors up to 7-ft. H
  • Provides unobstructed views in doorways
  • Blower wheels are dynamically balanced for quiet operation and are rust proof
  • Low noise levels - 49-dBA
  • Variable speed controller
  • Includes 99-014 Level 1 control package to automatically shut on and off the curtain when the door is opened or closed
  • Air directional vanes have a 40 degree sweep front to back to compensate for drafts
  • One piece cabinet construction with one layer of fire retardant paint and second layer of powder coat paint
  • Obsidian black powder coat resists rust and static charge
  • 115 V/60 Hz/1-ph, 2.4 A, 1/6 HP motor
  • Overall Dimensions: 72-in. W x 8-in. D x 8-7/8 in. H
  • CE and cETLus Listed; Meets National Electric Code (N.E.C)
  • Made in USA

LoPro Series 2 Air Curtain, for 72" wide door, Unheated, (1) 1/6 HP motor, 115v/60/1-ph, Obsidian Black powder coated cabinet (Standard Production Color). Also Includes Level 1 control package, line voltage, combination plunger/roller door limit switch, for instant on/off control, use on any type of door, 20amps, 250v, or 1 hp max.

Mars LPV272-1UA-OB/99-014 Specifications

PDF Spec Sheet
Manufacturer Mars
Weight 69.00
