Hussmann VRL3B1A 78 1/4" Three Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 120v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $32,518.20
$15,446.15 /Each

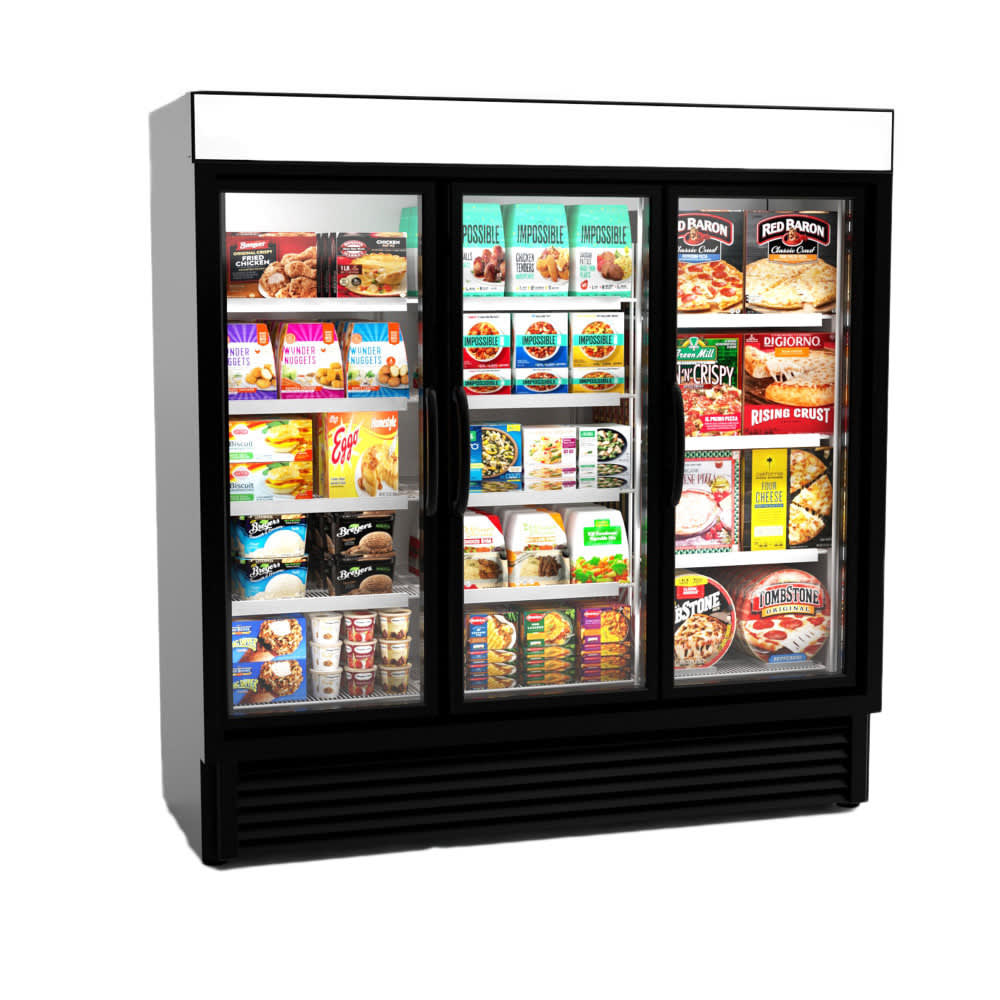

Hussmann VRL3B1A Description
The three-section Hussman VRL3B1A display freezer features a 66.1 cubic-foot interior that holds 12 shelves capable of supporting ice cream, pizzas, and frozen dinners. The white interior of the cabinet, accessible through its three-pane self-closing doors, is complemented by an LED lighting system to elevate the appearance of stored products. The door’s magnetic gaskets fit flush unless forcefully removed, helping to lock cold air in for energy conservation. This unit offers space for decals or logos on the illuminated sign panel.
This 781/4-inch wide by 311/4-inch deep by 802/5-inch high Hussman VRL3B1A display freezer is supplied with a self-contained refrigeration system. This unit’s compressor is mounted at the bottom, which helps to limit stooping when reaching items on the bottom level. With the MODBUS controller, users can maintain set temperatures from -8 to -10 degrees Fahrenheit. When needed, the built-in defrost system will reduce freezing to the compressor’s coils, and this system terminates at 60 degrees Fahrenheit.

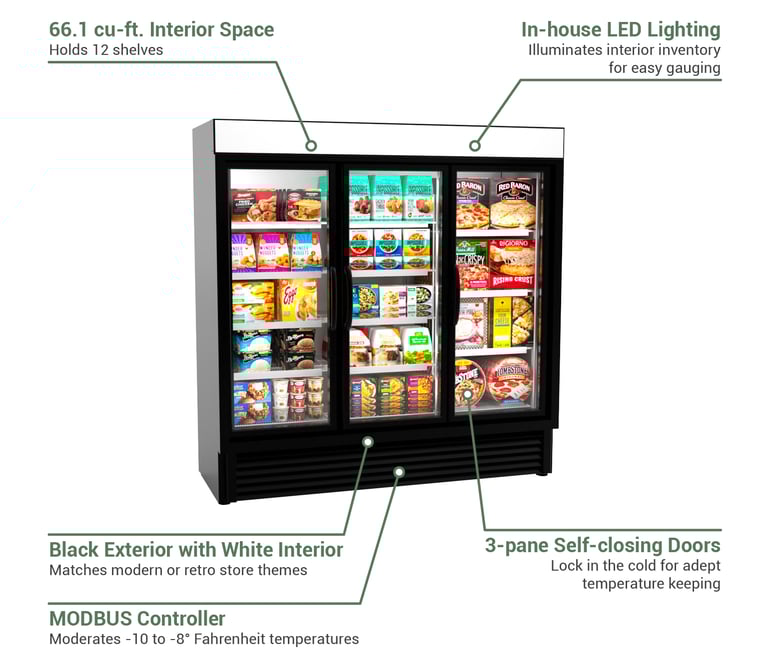

Product Details
- microSC™ series
- 66.1-cu.-ft. interior space
- 3 self-closing hinged glass doors featuring magnetic door gaskets
- Supports 12 shelves
- Digital display
- Vertical LED lighting
- Illuminated exterior panel
- Black exterior with white interior
Refrigeration System
- Bottom-mounted, self-contained refrigeration
- R290 hydrocarbon refrigerant
- MODBUS controller manipulates temperature range
- Controller setpoint range: -10 to -8 degrees F
- Discharge air temperature: -7 to 2 degrees F
- Built-in defrost system temperature terminates at 60 degrees F
Dimensions & Utilities
- 781/4 in. W x 311/4 in. D x 802/5 in. H
- 16 A, 3/4 HP
- 120 V/60 Hz/1 ph, 9-ft. NEMA 5-15P plug
Product Features
From The Manufacturer
microSC™ Low Temperature Merchandiser, reach-in, three-section, 66.1 cu. ft. capacity, bottom mount self-contained refrigeration, (3) self-closing hinged glass doors, magnetic door gaskets, (12) shelves, auto defrost, MODBUS controller, digital display, LED vertical lighting, illuminated exterior sign panel, black exterior, white interior, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 120v/60/1-ph, 16 amps, cord, NEMA 5-15P, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Natural Refrigerant
Product made with Hydrocarbon Refrigerants
Hussmann VRL3B1A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hussmann |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 66.1 |
| Depth (in) | 31.25 |
| Door Design | Swing |
| Height (in) | 80.37 |
| Hertz | 60 |
| Sections | 3 |
| Special Features | LED Lighting |
| Special Features | Lit Signage Area |
| Voltage | 120 |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 78.25 |
| Series | microSC™ |
| Air Intake | Front |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Best |
| Product | Display Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left |
| Weight | 877.00 |
