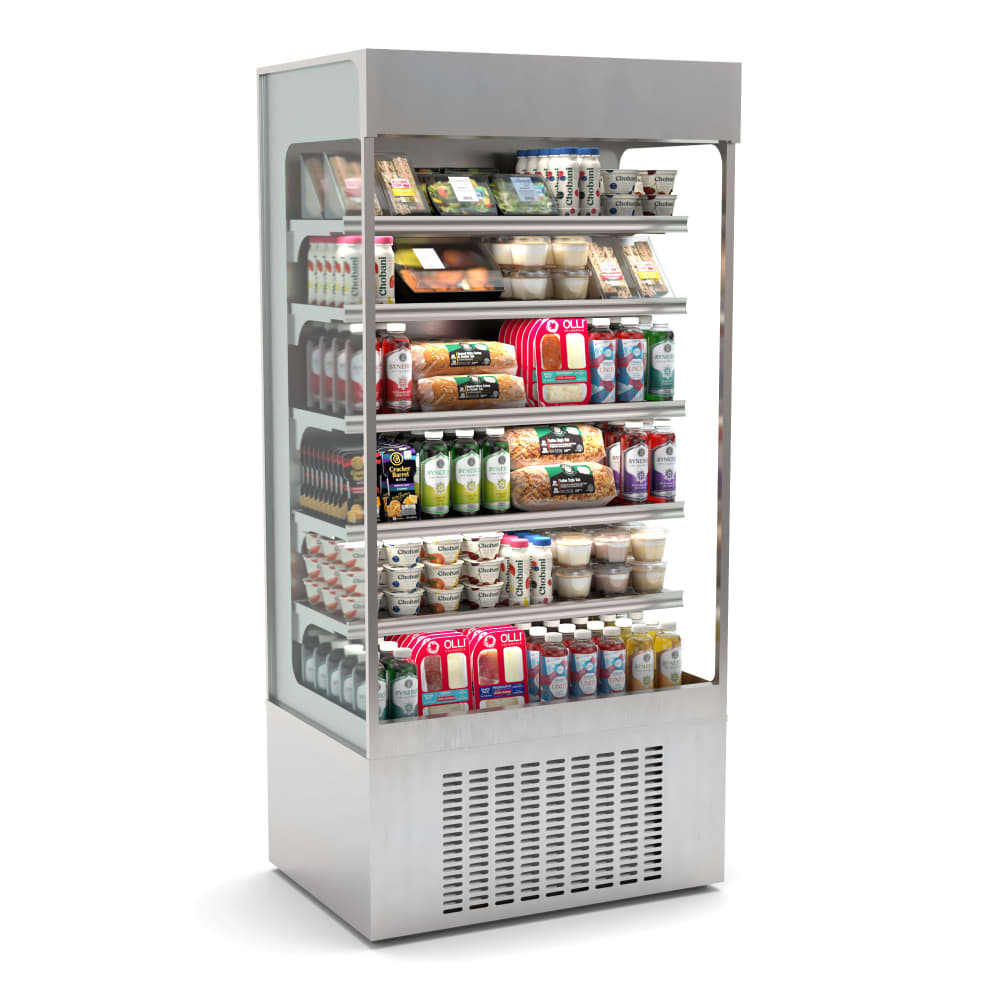

Hussmann MDN-3575S1A 35" Vertical Open Air Cooler w/ (6) Levels, 120v

As part of the microSC™ series, the Hussmann MDN-3575S1A multi-level merchandiser sets itself apart with a stainless steel interior and exterior that can blend seamlessly with most themes. While this unit has only one open section, its 13-cubic-foot capacity offers ample room for rows of beverages, sealed snacks, and salads. This space is sectioned out with five 12-inch shelves, highlighting products with its two glass end panels and LED vertical canopy lighting. The refrigerated unit sits atop four levelers to maintain an upright position and also offers four smooth casters that simplify movement.

The Hussmann MDN-3575S1A vertical reach-in cooler features a self-contained cassette refrigeration system that works to preserve medium temperatures throughout its body. Rather than the same air being circulated, this unit takes in air from the front and separates it from the hot air before discharging it through the back with a strong evaporator and R290 refrigerant. Once the cool air remains, it’s circulated into the storage space with a fanning system. Because this machine can get chilly—possibly even creating ice—it's programmed for time-initiated, temperature-terminated defrosts to preserve its advanced components. Additionally, the base of this system tends to collect moisture so it’s coupled with an automatic evaporation drain pan system that minimizes condensation output for optimal, long-lasting performance.

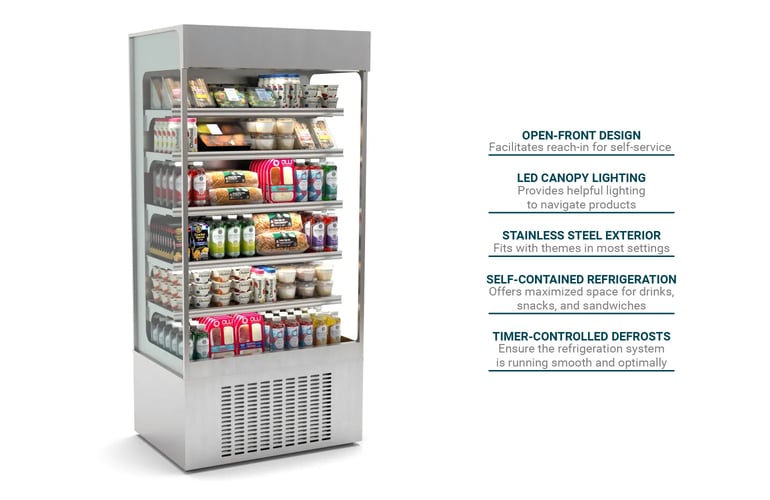

Product Details

• Part of the microSC series
• 13-cu.-ft. interior space
• 1 open-front section
• LED lighting on vertical canopy
• 5 shelves measure 12 inches deep
• Narrow footprint
• Glass end panels
• 4 casters
• Leg levelers maintain upright position
• Stainless steel appearance

Refrigeration

• Medium-temperature range
• Self-contained cassette refrigeration
• Minimal moisture with auto-evaporation drain pan system
• Air enters front and discharges from back
• Included control adjusts temperatures
• Defrosts are time initiated and temperature terminated
• R290 refrigerant helps remove heat

Dimensions & Utilities

• 35 in. W x 25⁵/₈ in. D x 76³/₈ in. H
• 12.3 A, 1⁷/₁₀ HP
• 120 V/60 Hz/1 ph, with NEMA L5-30P plug

Product Features

*Free shipping on Hussmann MDN-3575S1A within the 48 contiguous states.

From The Manufacturer

microSC™ Multi-Deck Merchandiser, open front, self-contained cassette refrigeration system, 35"W x 25-5/8"D x 74-3/4"H, 13.0 cu. ft. capacity, (5) shelves, view end panels, LED canopy lighting, auto evaporation drain pan system, rear air discharge, stainless steel interior & exterior, leg levelers & casters, R290, 1.7 HP, 120v/60/1, 12.3 amps, cord, NEMA L5-30P, NSF, UL

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Compressor

Hussmann MDN-3575S1A Specifications

Documents

Spec Sheet

Warranty

Manual
