Eurodib CB425A 31.5"H Top Hat Undercounter Ice Maker - 102 lbs/day, Air Cooled

Image may not depict product color, inclusions or accessories.

KaTom #: 027-CB425A • MPN: CB425A

Estimated Backorder Until 1/9/2019

(0 reviews)Write a Review
Retail Price: $2,700.00
$1,248.29 / Each

Image may not depict product color, inclusions or accessories.

Eurodib CB425A Description

Eurodib

The Eurodib CB425A undercounter top hat ice maker produces top hat, or gourmet, ice that is perfect for hotels, bars, fast food restaurants, and more. The ice is made by water being sprayed into chilled cavities in the evaporator, creating a top hat shape. Water is frozen in the evaporator, and ice falls into the storage bin one at a time. With a large diameter that ensures water can flow freely, the metal sprayers that shoot water into the evaporator reduce hard water effects to produce clear, pure ice cubes. Mineral buildup is also reduced due to the evaporator's stainless steel construction.

The stainless steel construction of the unit provides durability for commercial use and resists corrosion. The machine's front airflow means you will not need clearance on the sides and back. Ice production can be increased or decreased, depending on your needs throughout the day. Doors on the bin slide up and tuck under the ice machine top cover to make scooping ice easier. The water pump is not immersed, which helps prevent complications. Air filters are removable so you can easily clean them and save money on maintenance. The Eurodib CB425A undercounter top hat ice maker can produce up to 102 pounds of ice daily, and the bin can hold up to 55 pounds of ice at a time.

Product Details

  • Undercounter top hat ice maker
  • Air-cooled unit
  • 102 lbs. produced every 24 hours
  • Bin can hold up to 55 lbs. of ice
  • Stainless steel construction is durable and resistant to corrosion
  • Thermostat bin lets you increase or decrease the ice production rate
  • Doors of the bin slide up and tuck under the ice machine top cover for easy scooping
  • Front breathing prevents the need for side and back clearances
  • Water pump has less complications due to not being immersed in water
  • Fire sensor detects excessive heat and shuts down the machine
  • Air filters are removable so they can be cleaned, reducing the cost of maintenance
  • Uses R-404A refrigerant
  • 120 V/60 Hz/1 ph, 500 W, 4A
  • Ice Cube Dimensions: 1 in. W x 1.2 in. D x 1.2 in. H
  • Overall Dimensions: 19.7 in. W x 22.8 in. D x 31.5 in. H
  • ETL listed; NSF certified

Ice Production

  • Stainless steel evaporator reduces the buildup of minerals for efficient pump and compressor operation
  • Evaporator is fixed and does not rotate, ensuring a longer life
  • Evaporator produces hard, crystalline-clear, ice cubes
  • Metal sprayers have a large diameter, reducing hard water effects

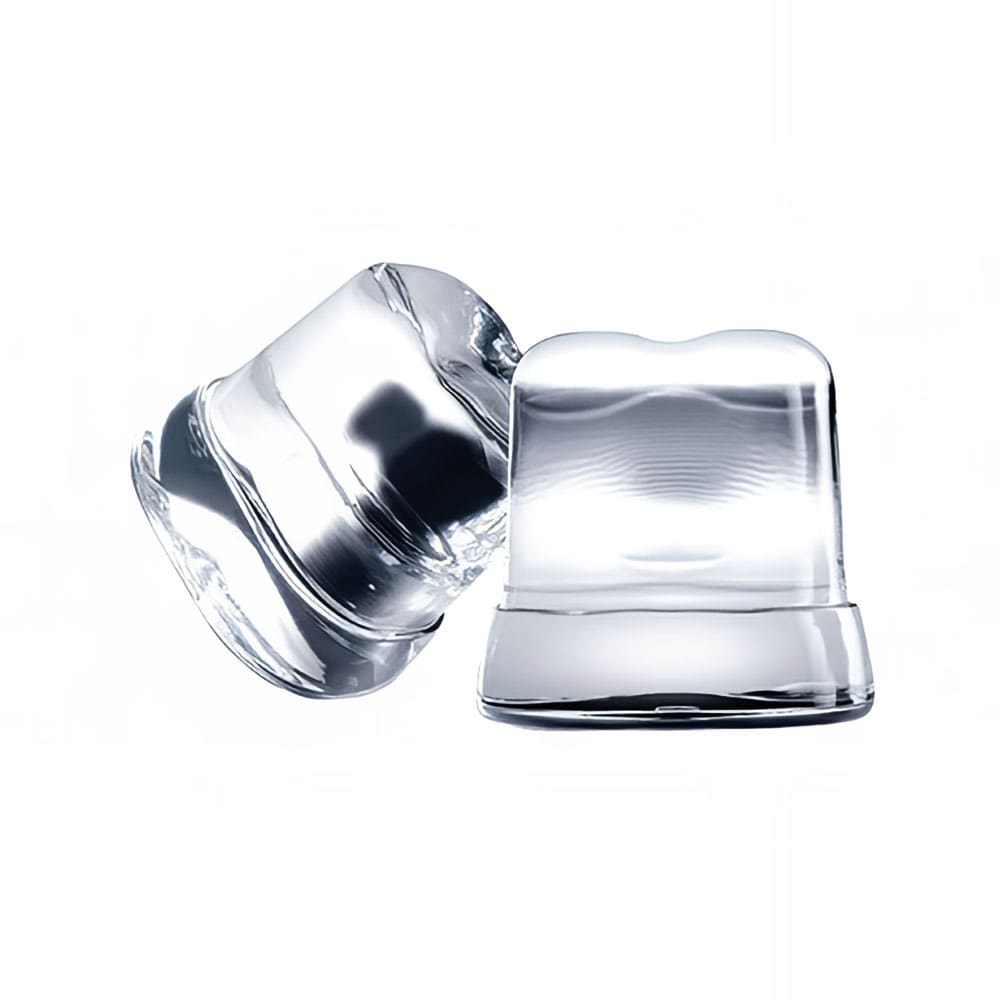

  • Water sprays into chilled cavities, which produces a cube shaped like a top hat, chills in the evaporator and falls off one by one into the bin
  • Individual ice cubes last longer, have better displacement, maximize production, and reduce the maintenance costs

Brema® Undercounter Ice Maker with Bin, cube style, air-cooled, self-contained refrigeration, 13g cube size (1.2"H x 1"W x 1.2"D), 102 lbs production/24 hour, 55 lbs storage capacity, electro-mechanical operation, (2) thermostats, timer, fire sensor, stainless steel interior & exterior, R404A, 120v/60/1-ph, 500 watts, 4.0 amps, NSF, CE, cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Eurodib CB425A Specifications

PDF Spec Sheet
Manufacturer Eurodib
24 Hr. Production (lbs) 102
Height (in) 31.5
Ice Type Top Hat
Width (in) 19.7
Bin Capacity (lb) 55
Warranty 3 years parts & labor/5years compressor
Compressor Type Air Cooled
Production Range (per day) 100 - 199 lbs
Phase 1
Voltage 120
Series Brema®
Suggested Use Commercial
Bin Capacity Range (lbs) 50 - 99 lbs
Drain Type Gravity
Special Features Removable Air Filter
Width (in) Range 15 - 19 inches
Product Type Ice Machines
Product Undercounter Ice Maker
Weight 141.00
Eurodib CB425A Certifications
  • NSF
  • ETL
