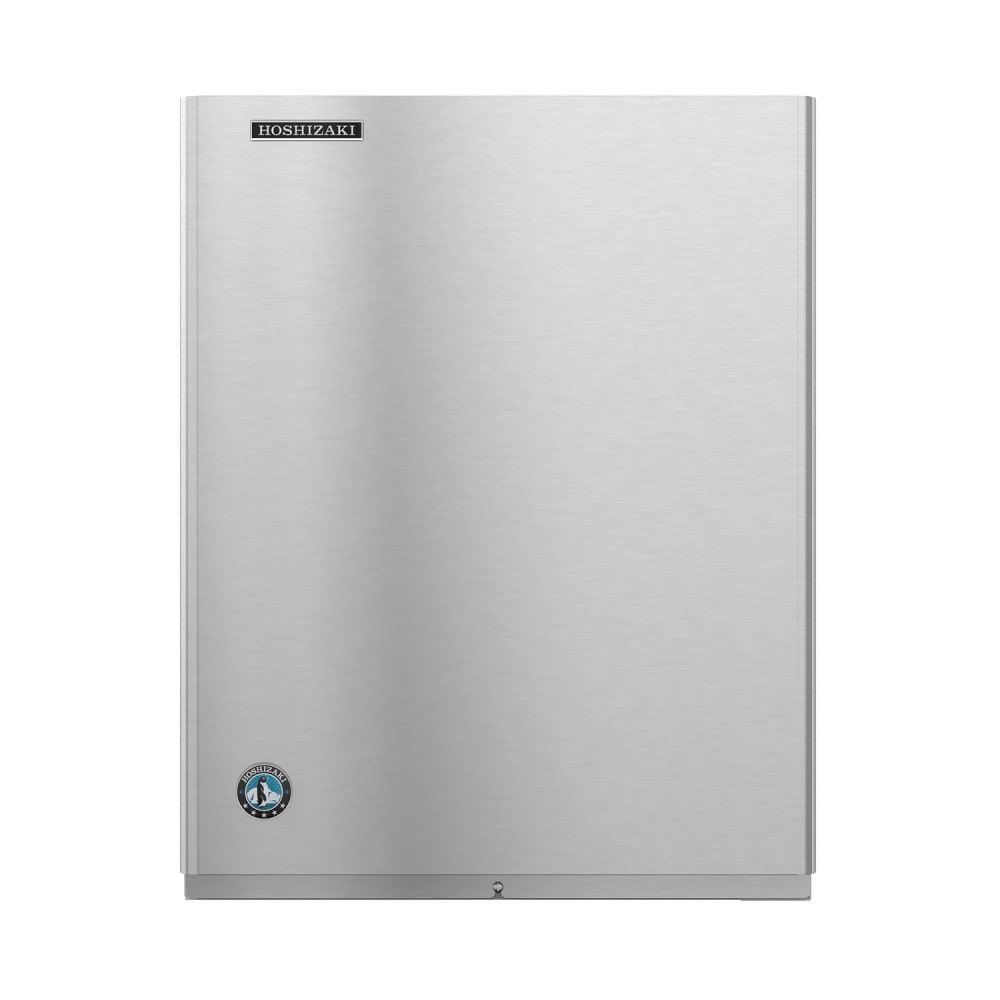

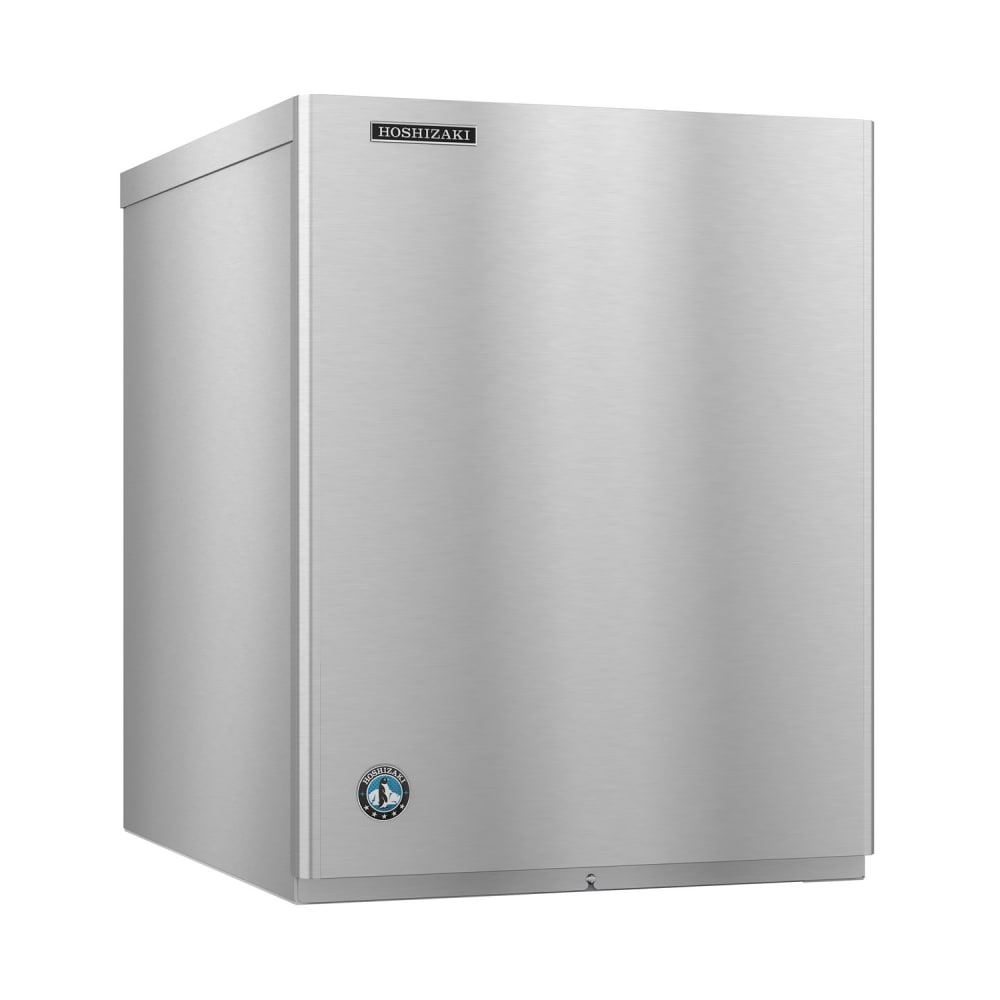

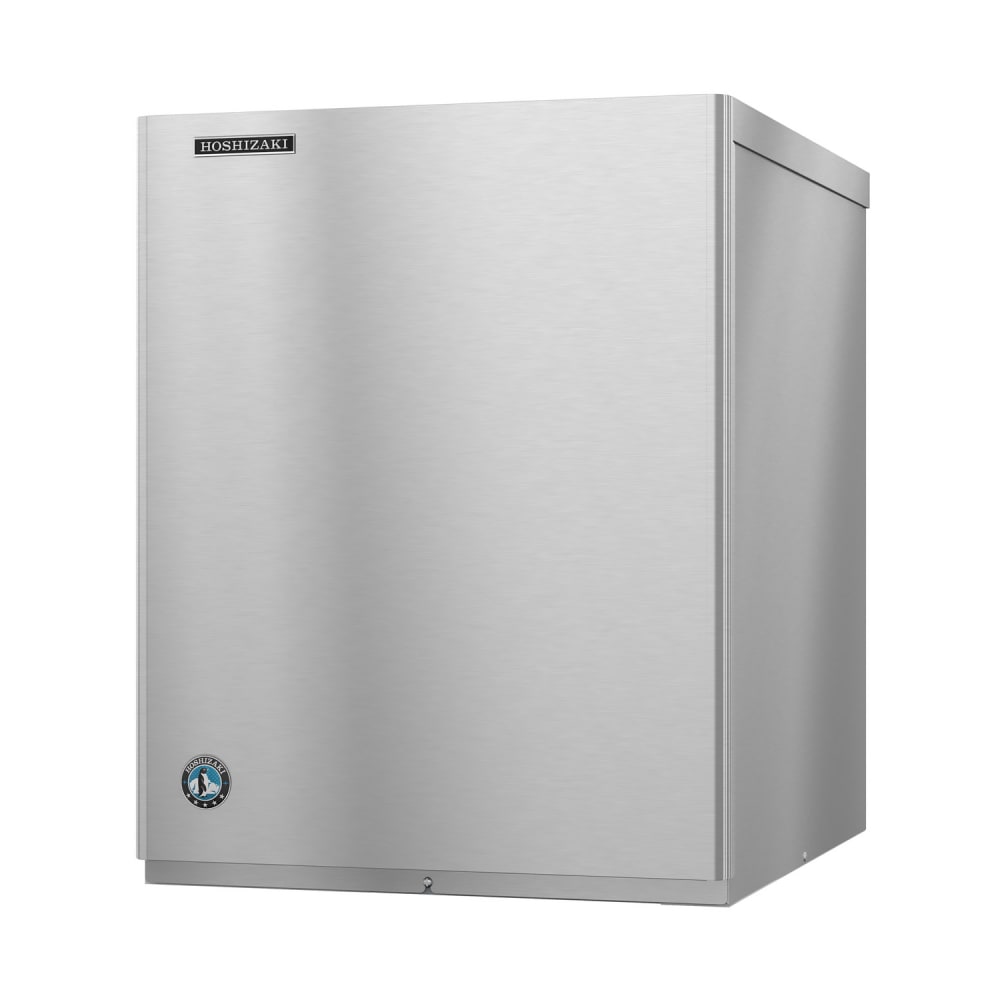

Hoshizaki KM-520MWJ 22" Crescent Cube Ice Machine Head - 474 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,880.00 /Each
Contact us for details!
Hoshizaki KM-520MWJ Description
In Ideal conditions, the Hoshizaki KM-520MWJ ice machine head produces 474 pounds of crescent-cube ice per day. It is a water-cooled unit, and its self-contained condenser operates with R404A refrigerant. To reduce the buildup of bacteria in the machine, it's protected by H-Guard Plus antimicrobial, and it self-cleans in just an hour with Clean Assist. Because the components of this unit snap in and out, they can be removed for cleaning.
The Hoshizaki KM-520MWJ crescent-cube ice machine head has self-diagnostics that automatically adjust the unit to a changing environment. If something goes wrong, the EverCheck™ alert system tells users that maintenance is needed. Its evaporator is made of stainless steel to resist corrosion, and the finish is also stainless steel to provide durability.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 474-lb. maximum daily ice production
- 444-lb. AHRI-certified daily ice production

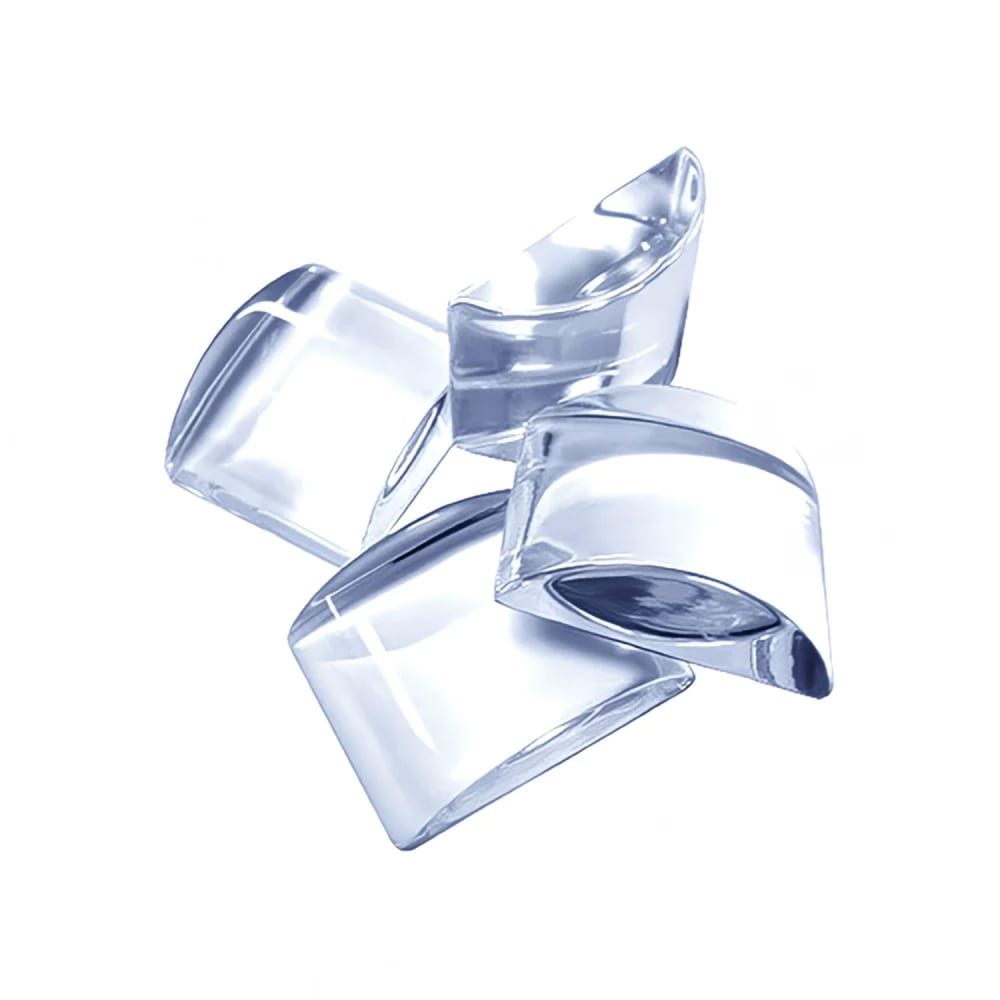

- Makes crescent-cube ice

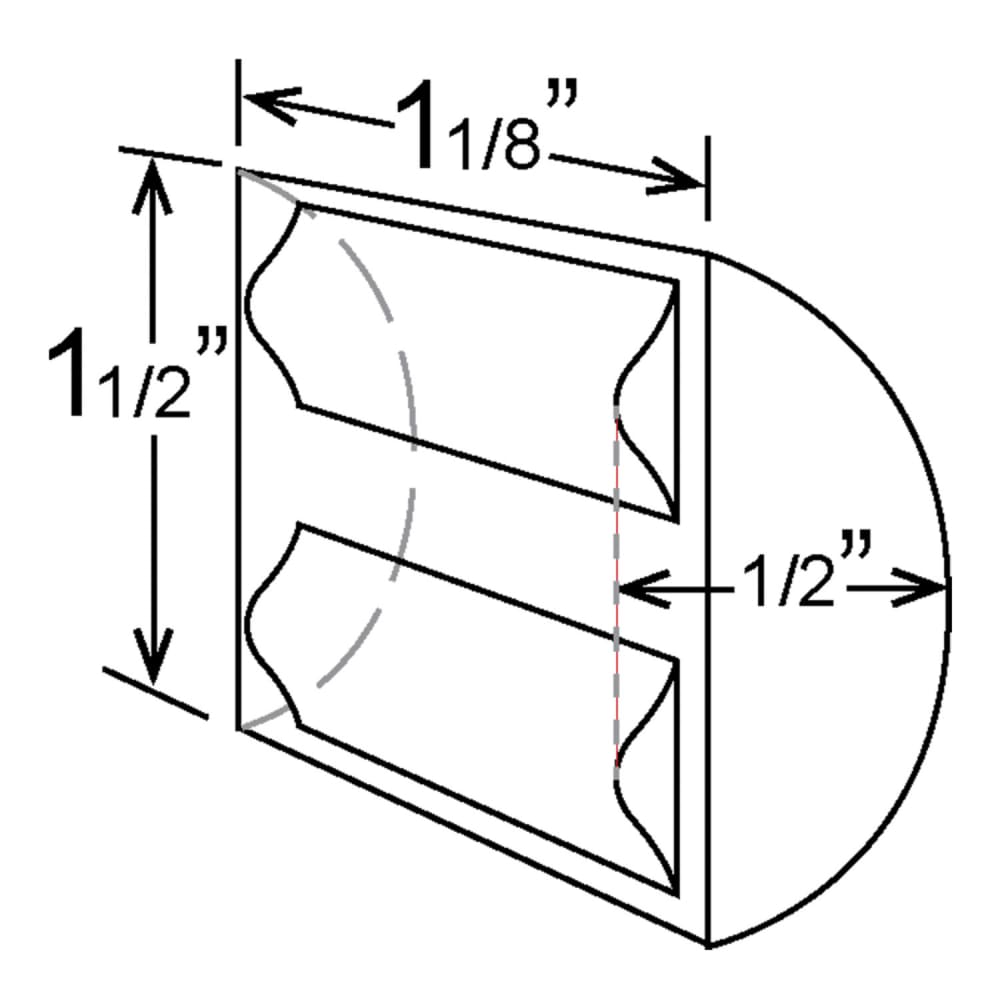

- Crescent-cube ice size: 1 1⁄8 in. L x 1⁄2 in. W x 1 1⁄2 in. H
- Water-cooled, self-contained condenser
- Cooled with R404A refrigerant
- Clean Assist cleans unit in 1 hr.
- H-GUARD Plus antimicrobial reduces bacteria buildup
- EverCheck alert system informs users of issues
- Self-diagnostics adjust settings when conditions change
- Double-sided stainless steel evaporator
- Snap-fit parts are removable for cleaning
- Durable stainless steel finish
- Requires 6-in. clearance at rear, sides, and top
- Ice bin and dispenser sold separately
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 6,300-BTU heat transfer capacity
- 22 in. W x 27.38 in. D x 28 in. H
- 8.45 A, 4.65 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-520MWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 474 lb/24 hours at 70°/50° (444 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.45 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-520MWJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 474 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE X |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 147.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki KM-520MWJ Hoshizaki KM-520MWJ 22" Crescent Cube Ice Machine Head - 474 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,880.00 / Each | $4,426.00 / Each | $4,609.00 / Each | $4,098.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 2 - 3 weeks | QUICK SHIP: Ships in 1 Business Day | |
| 24 Hr. Production (lb) | 474 | 550 | 510 | 480 |
| Ice Type | Crescent Cube | Half Cube | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 22 | 30.25 | 22 | 22 |
| Rating | Best | Better | Best | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | KM EDGE X | Elevation Series™ | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R404A | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
