Hoshizaki KM-520MAJ 22" Crescent Cube Ice Machine Head - 548 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,805.00 /Each
Contact us for details!
Hoshizaki KM-520MAJ Description
The Hoshizaki KM-522MAK ice machine head has H-GUARD Plus antimicrobial protection, reducing the risk of slime and mold growth. Its evaporator is made of stainless steel, which minimizes the risk of corrosion and lasts longer than nickel-plated evaporators. This unit monitors itself for problems and beeps in a pattern to indicate any issues that it finds. A self-diagnostic system helps speed up the repair process so that the machine can run efficiently.
The Hoshizaki KM-522MAK ice maker produces crescent cubes that melt very slowly and take up more space in cups than other ice types. In this way, crescent cubes help reduce the total amount spent on beverages. Crescent-cube ice forms on each side of the evaporator plate and then drops into a bin or dispenser.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 548-lb. daily ice production capacity
- Condenser is air cooled
- Removable air filters

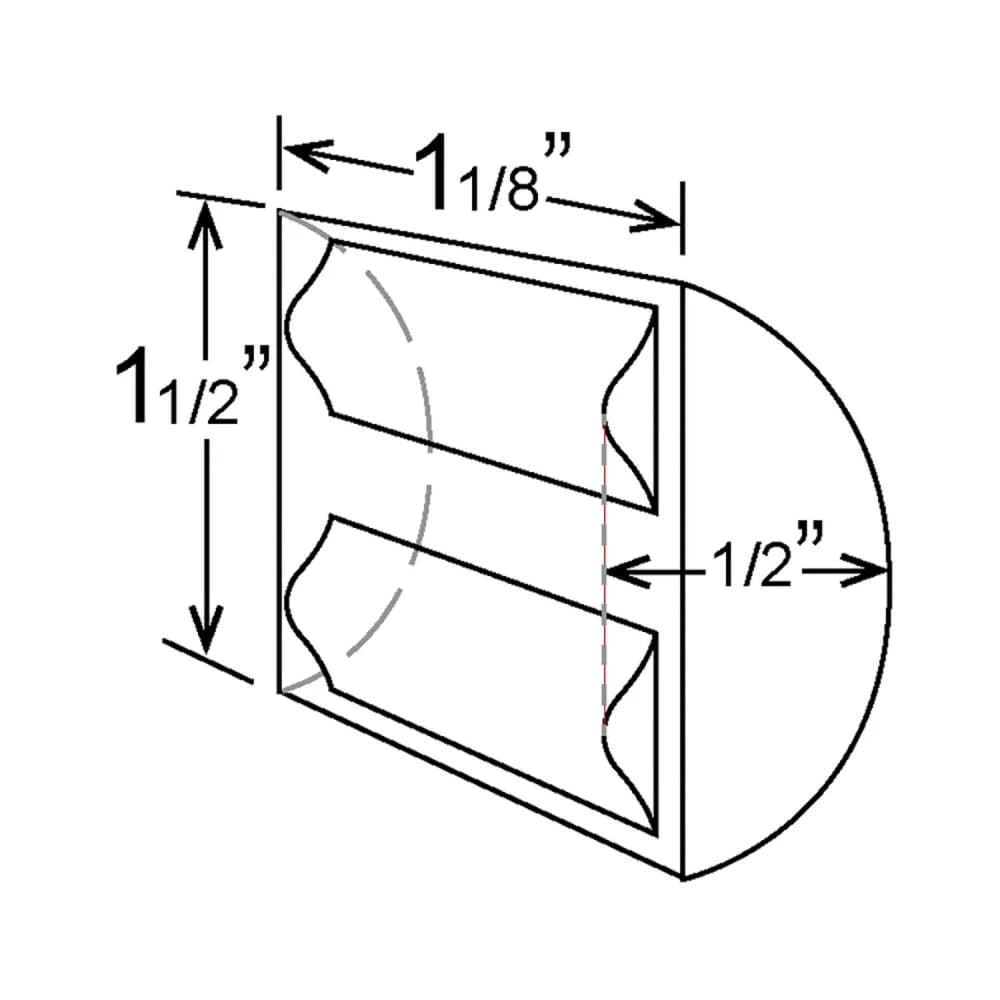

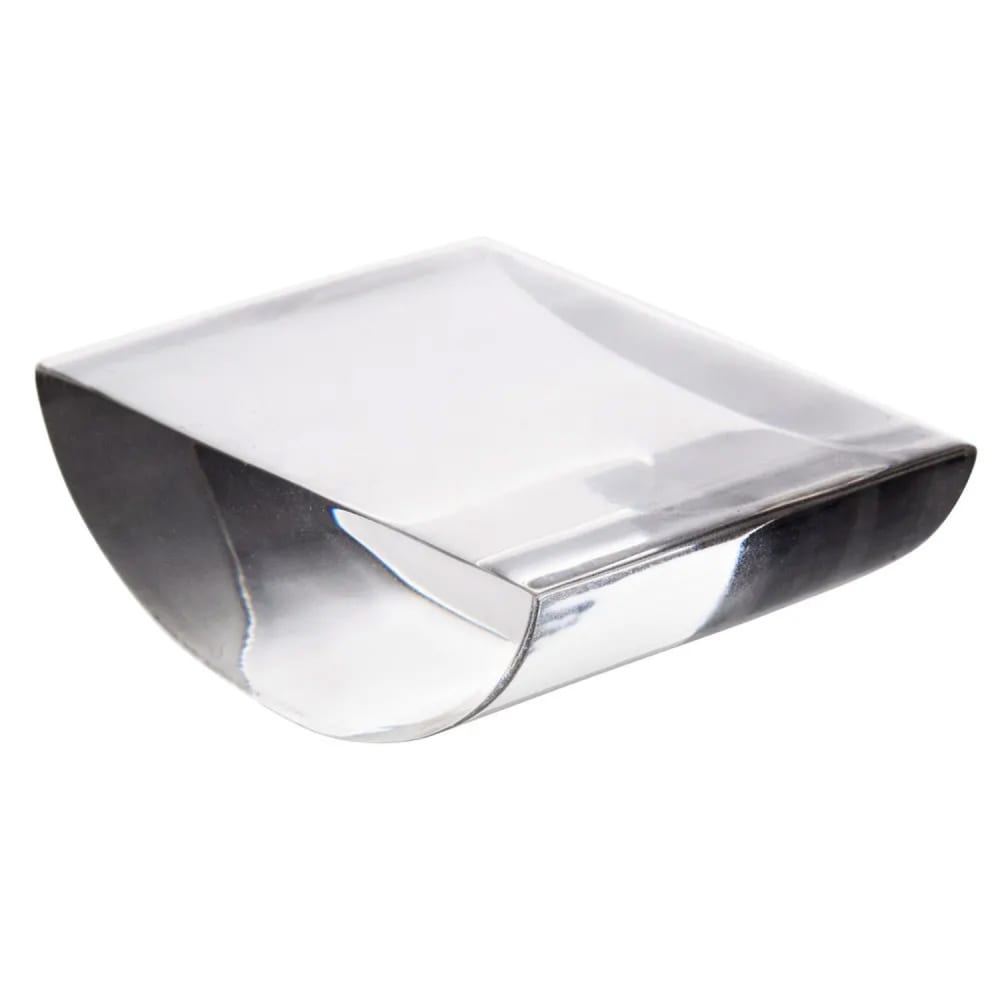

- Crescent-cube ice size: 1.125 in. x 1.5 in. x 0.5 in.
- Quick-cleaning parts that snap into place
- System self-adjusts to counteract changing conditions
- CycleSaver™ design reduces the number of cycles each day
- Durable, rust-resistant stainless steel exterior
- Plastic louvers
- H-GUARD Plus antimicrobial protection reduces mold, mildew, and bacteria
- EverCheck™ system alerts users of system issues with beep patterns
- Cools with R290 refrigerant
- Cleaning cycle
- Ice bin sold separately
- 6,600 BTU
- Ambient air temperature: 45-100 degrees F
- Incoming water temperature: 45-90 degrees F
- Incoming water pressure: 10-133 PSIG
- Clearances: 6 in. on both sides, 6 in. behind, and 6 in. above
- Copper water tubing with a minimum 0.25-in. inner dia. for water supply
- Hard pipe with a minimum 0.75-in. inner dia. for draining
- 22 in. W x 27.375 in. D x 28 in. H
- 10.6 A, 4.68 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-520MAJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 548 lb/24 hours at 70°/50° (445 lb AHRI certified at 90°/70°), KMEdge™ crescent style cube, CycleSaver™ design, EverCheck™ alert system, removable air filter, stainless steel finish, R290 refrigerant, 115v/60/1-ph, 10.8 amps, NSF, UL, ENERGY STAR®
Watch a video about this product
Hoshizaki KM-520MAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 548 |
| Also Known As | KM-520MAJ |
| Compressor Type | Air Cooled |
| Depth (in) | 27.38 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KM EDGE X |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 151.00 |
