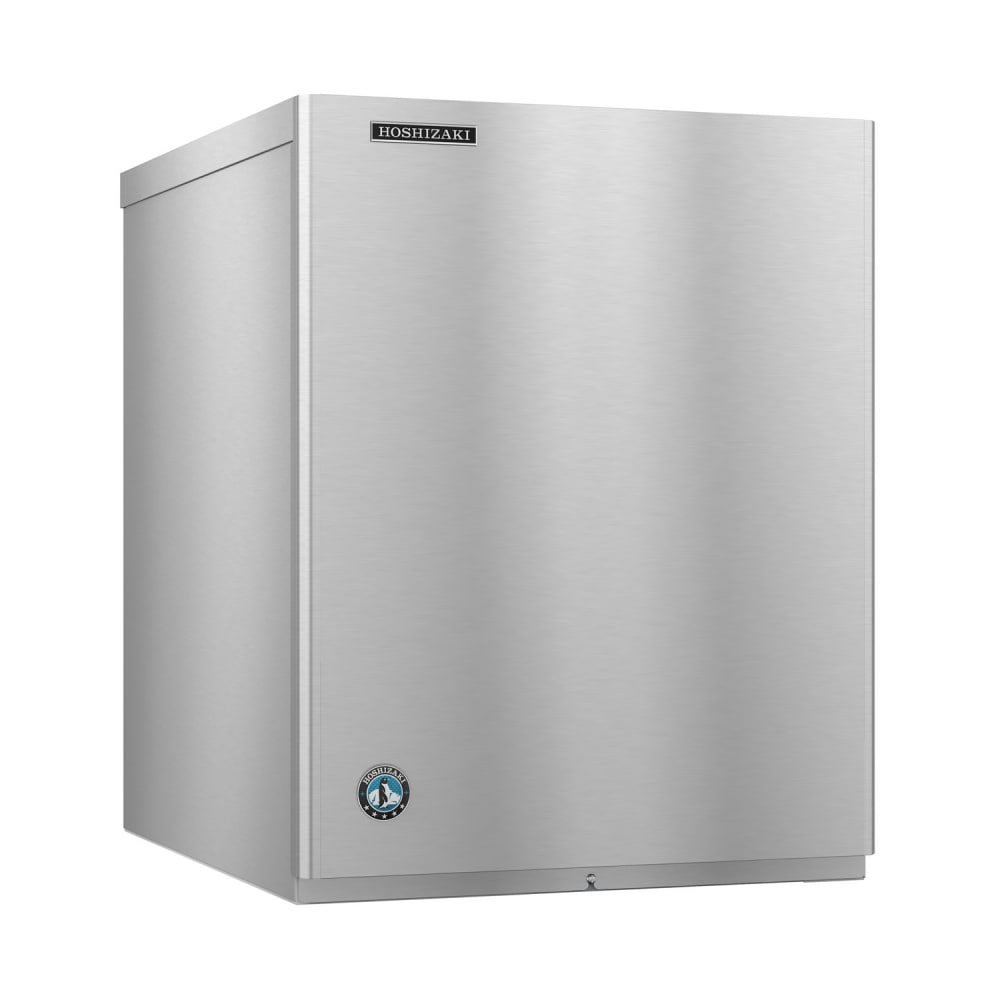

Hoshizaki KM-520MRJZ 22" Crescent Cube Ice Machine Head - 547 lb/24 hr, Remote Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,710.00 /Each
Contact us for details!
Hoshizaki KM-520MRJZ Description
This Hoshizaki KM-520MRJZ full-cube ice machine head is a stainless steel unit measuring 22 inches wide by 27 2⁄5 inches deep by 28 inches high. It’s made for clean operation with the H-GUARD Plus antimicrobial agent that slows the growth of mold and mildew. It also has an EverCheck™ alert system, which informs users when the internal temperature is out of range.

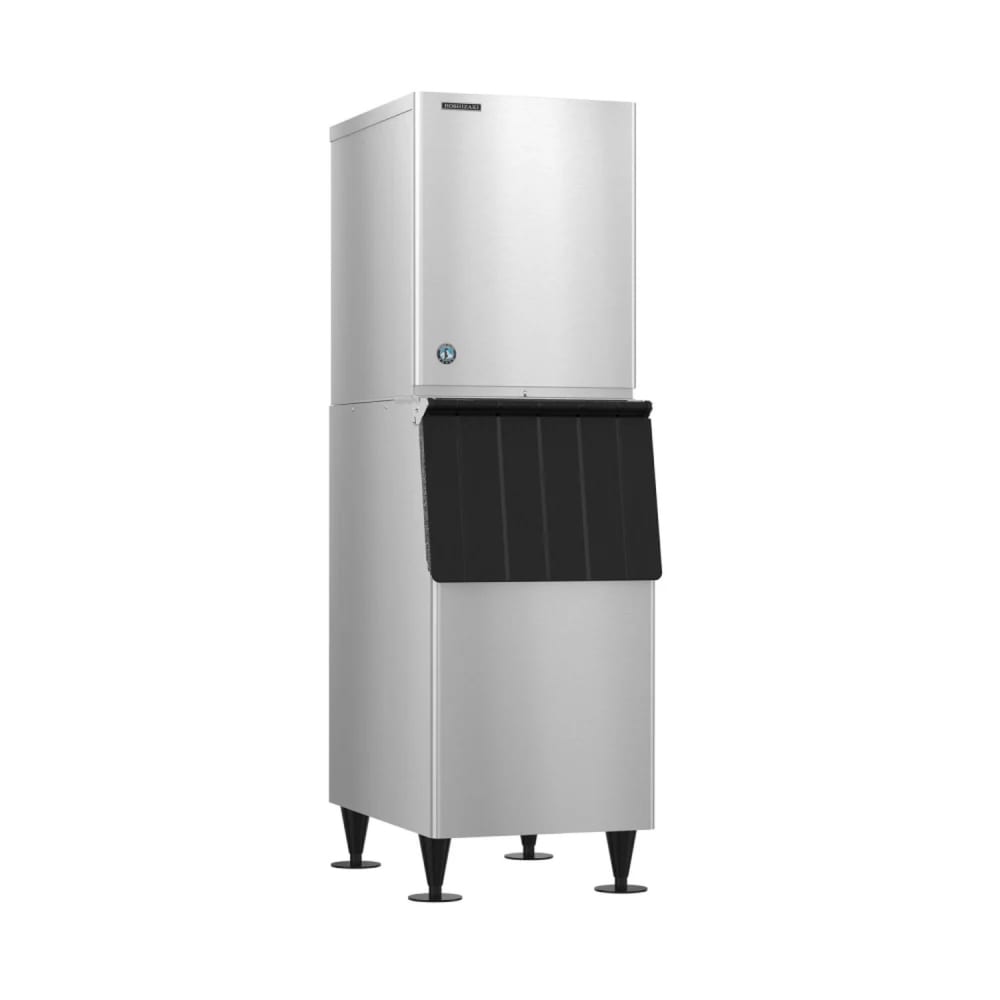

The Hoshizaki KM-520MRJZ full cube ice machine head is equipped to produce 547 pounds of ice per 24-hour period when the incoming water temperature is 50 degrees Fahrenheit and the ambient temperature is 70 degrees Fahrenheit. It is made to be air cooled remotely that requires users to purchase a separate remote condenser; it also requires an ice bin or dispenser for proper operation.
- 547-lb. daily production in ideal conditions
- Crescent-cube style
- Stainless steel double-sided exterior
- Remote air cooled
- Requires remote condenser (solid separately)
- Requires ice bin (sold separately)
- R-404A refrigerant
- CycleSaver™
- H-GUARD Plus antimicrobial agent
- EverCheck™ alert system
- 22 in. W x 27 2⁄5 in. D x 28 in. H
- 12.05 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-520MRJZ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 22"W, air-cooled, remote condenser (priced separately), production capacity up to 547 lb/24 hours at 70°/50° (495 lb AHRI certified at 90°/70°), crescent cube style, R-404A refrigerant, 115v/60/1-ph, 12.05 amps, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)
Watch a video about this product
Hoshizaki KM-520MRJZ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 547 |
| Compressor Type | Remote Cooled |
| Depth (in) | 27.38 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE X |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 175.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM520MRJ
Compare to Similar Items
| Attributes |
Hoshizaki KM-520MRJZ Hoshizaki KM-520MRJZ 22" Crescent Cube Ice Machine Head - 547 lb/24 hr, Remote Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,710.00 / Each | $4,380.00 / Each | $4,380.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 2 - 3 weeks | Typically ships in 2 - 3 weeks |
| 24 Hr. Production (lb) | 547 | 570 | 570 |
| Ice Type | Crescent Cube | Full Cube | Half Cube |
| Compressor Type | Remote Cooled | Remote Cooled | Remote Cooled |
| Width (in) | 22 | 30.25 | 30.25 |
| Rating | Best | Better | Better |
| Voltage | 115 | 115 | 115 |
| Series | KM EDGE X | Elevation Series™ | Elevation Series™ |
| Refrigerant | R404A | R404A | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
