Ice-O-Matic CIM0530HR 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 570 lb/24 hr, Remote Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,380.00 /Each
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0530HR Description
The Ice-O-Matic CIM0530HR Elevation™ modular cube ice maker can make up to 525 pounds of ice each day when the unit is operating in ambient temperatures of 70 degrees Fahrenheit. It produces half-cube ice measuring 3⁄8 inch by 7⁄8 inch by 7⁄8 inch, which is perfect for use in blended frozen drinks, soft drinks, and dispensed ice operations. The unit is easy to install and service since the Universal Smart Harness™ control board has digital diagnostics and universal components.
An LED status display alerts the operator when cleaning is required, and one-touch controls allow employees to descale and sanitize the unit with minimal labor. The food zone is designed with plastic components that snap in and out so they can be cleaned in your commercial dishwasher. The Ice-O-Matic CIM0530HR Elevation modular cube ice maker also uses Agion® antimicrobial protection to slow the growth of bacteria.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Dispenses half-cube, 3⁄8-in. x 7⁄8-in. x 7⁄8-in. ice
- Makes up to 525 lbs. of ice in 24 hrs. at 70 degrees F ambient air and 415 lbs. of ice at 90 degrees F
- Air-cooled, remote condenser produces less heat and noise
- Universal Smart Harness control board makes the unit easy to install and service
- BPA-free plastic components are recyclable
- 115 V/60 Hz/1 ph, 20.1 A, 6.21 kW, 6252 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Agion antimicrobial protection reduces bacteria growth
- LED status display indicates when cleaning is needed

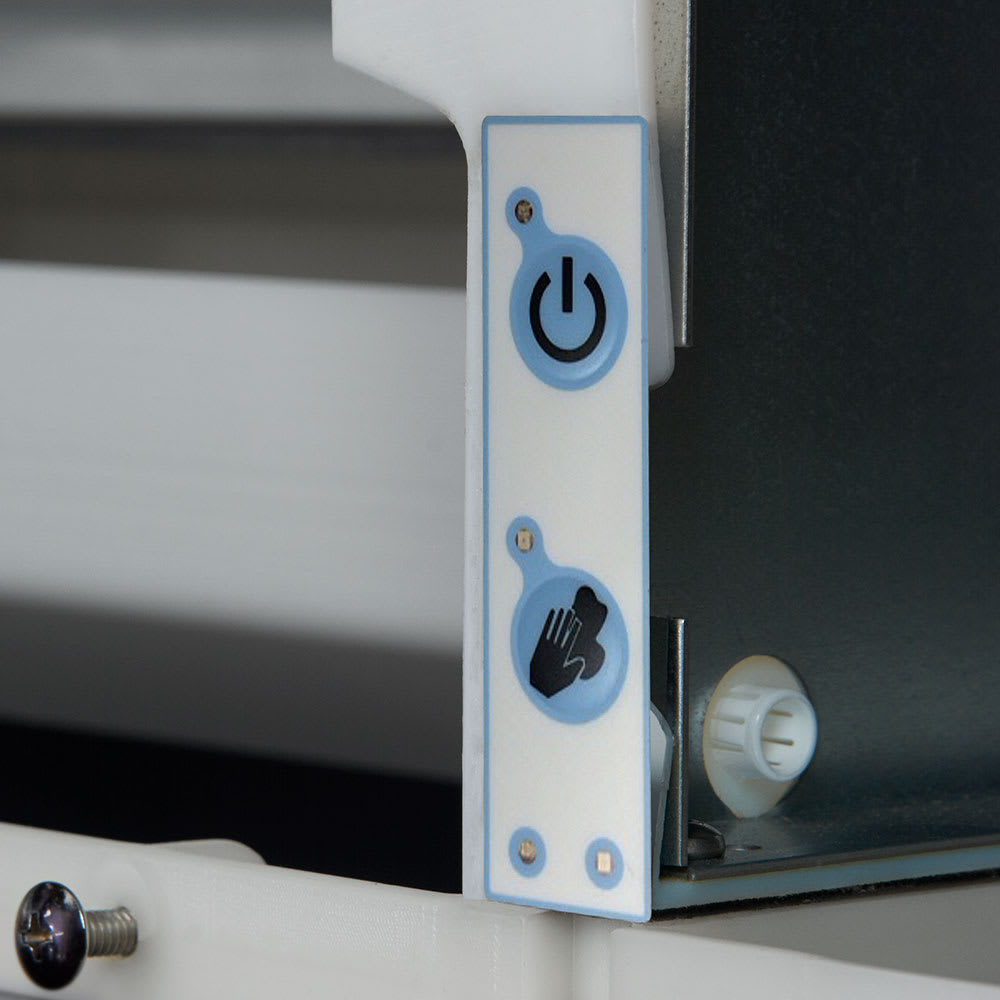

- Descaling and sanitizing are easy with one-touch controls
- Plastic food zone lacks crevices so it is easy to wipe clean
- Snap-in, snap-out components are dishwasher safe
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530HR within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 570 lb production/24 hours at 70°/50° (415 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0530HR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 570 |
| Also Known As | CIM0530HR |
| Compressor Type | Remote Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0500HR
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0530HR Ice-O-Matic CIM0530HR 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 570 lb/24 hr, Remote Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,380.00 / Each | $5,390.00 / Each | $3,828.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 570 | 642 | 500 |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| Compressor Type | Remote Cooled | Remote Cooled | Remote Cooled |
| Width (in) | 30.25 | 22 | 30 |
| Rating | Better | Best | Best |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | KM EDGE X | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
