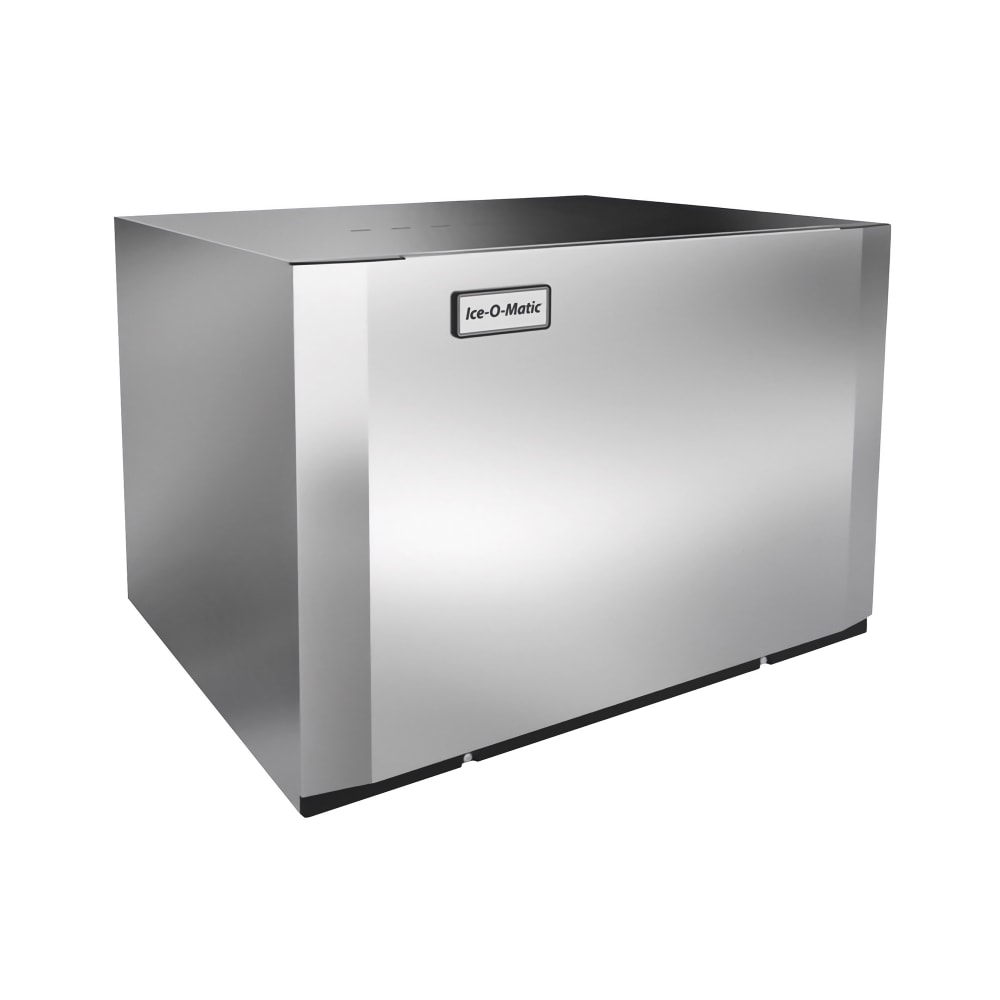

Ice-O-Matic CIM0530HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 550 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,426.00 /Each
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0530HW90 Description
The Ice-O-Matic CIM0530HW90 Elevation™ modular cube ice maker produces up to 550 pounds of half-cube ice each day in 70 degrees Fahrenheit ambient operating temperatures. Half-cube ice works well in soft drinks and blended frozen drinks, as well as in bagged and dispensed ice operations. The Universal Smart Harness™ has digital diagnostics and a common configuration, so the unit is easy to install and service.
To ensure the unit is routinely cleaned, one-touch controls for the sanitizing and descaling processes are included, and an LED status display indicates when cleaning is required. The Ice-O-Matic CIM0530HW90 Elevation modular cube ice maker's plastic food zone is easy to wipe clean since it is made without crevices. Bacteria growth is slowed by the Agion® antimicrobial protection.

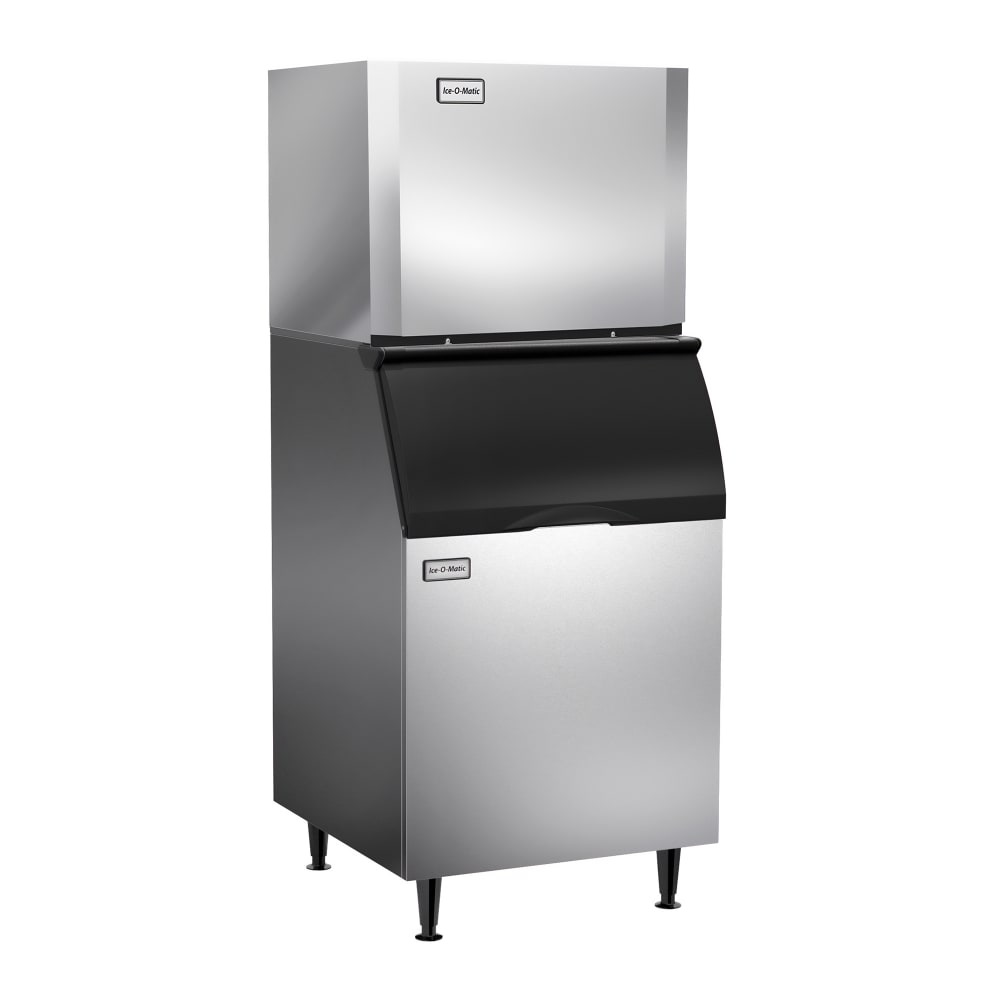

Note: This unit must be paired with an ice maker bin or ice dispenser.
- Produces 3⁄8-in. x 7⁄8-in. x 7⁄8-in. half-cube ice that works well for many operations
- Makes 550 lbs. of ice in 24 hrs. at 70 degrees F (ambient air)
- Water-cooled, self-contained condenser
- Control board is easy to access and uses digital diagnostics and a common configuration to provide user-friendly installation and servicing
- Plastic parts are BPA free and can be recycled
- R290 refrigerant
- 115 V/60 Hz/1 ph, 17.4 A, 4.7 kW, 6252 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Sanitizing and descaling are easy with one-touch controls
- LED status display simplifies the cleanup process by alerting the operator when cleaning is needed
- Dishwasher-safe components easily snap in and out
- Plastic food zone can be wiped down since it lacks crevices
- Agion antimicrobial protection slows the growth of bacteria
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, half-size cubes, 30"W, approximately 550 lb production/24 hours at 70°/50° (485 lb at 90°/70°), half-size cubes, LED status display, one touch sanitize & descaling controls, dishwasher safe food zone components, self-contained water-cooled condenser, R290 refrigerant, cULus
Ice-O-Matic CIM0530HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 550 |
| Also Known As | CIM0530HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0500HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0530HW90 Ice-O-Matic CIM0530HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 550 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,426.00 / Each | $3,931.00 / Each | $3,931.00 / Each | $5,635.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 1 - 3 Business Days | Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 550 | 507 | 507 | 647 |
| Ice Type | Half Cube | Half Cube | Full Cube | Crescent Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 | 22 |
| Rating | Better | Best | Best | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Elevation Series™ | Prodigy ELITE® | Prodigy ELITE® | KM EDGE X |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
