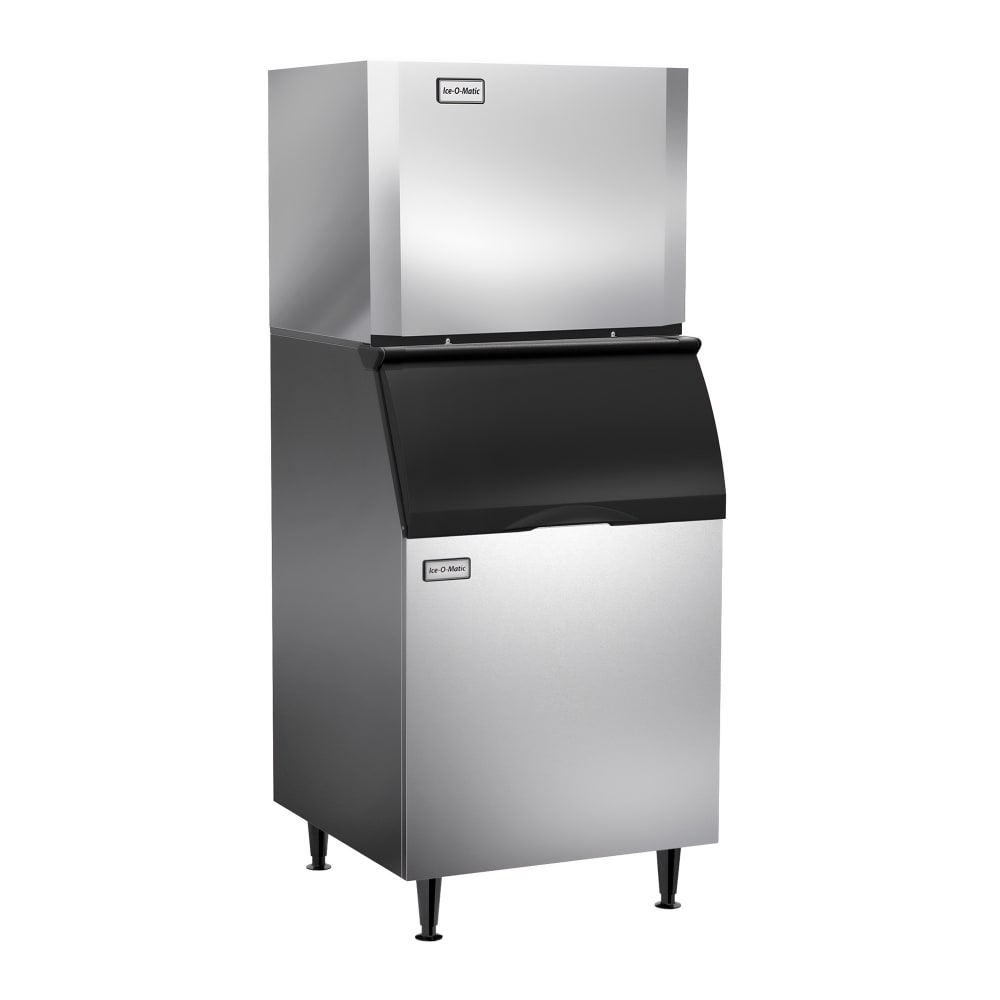

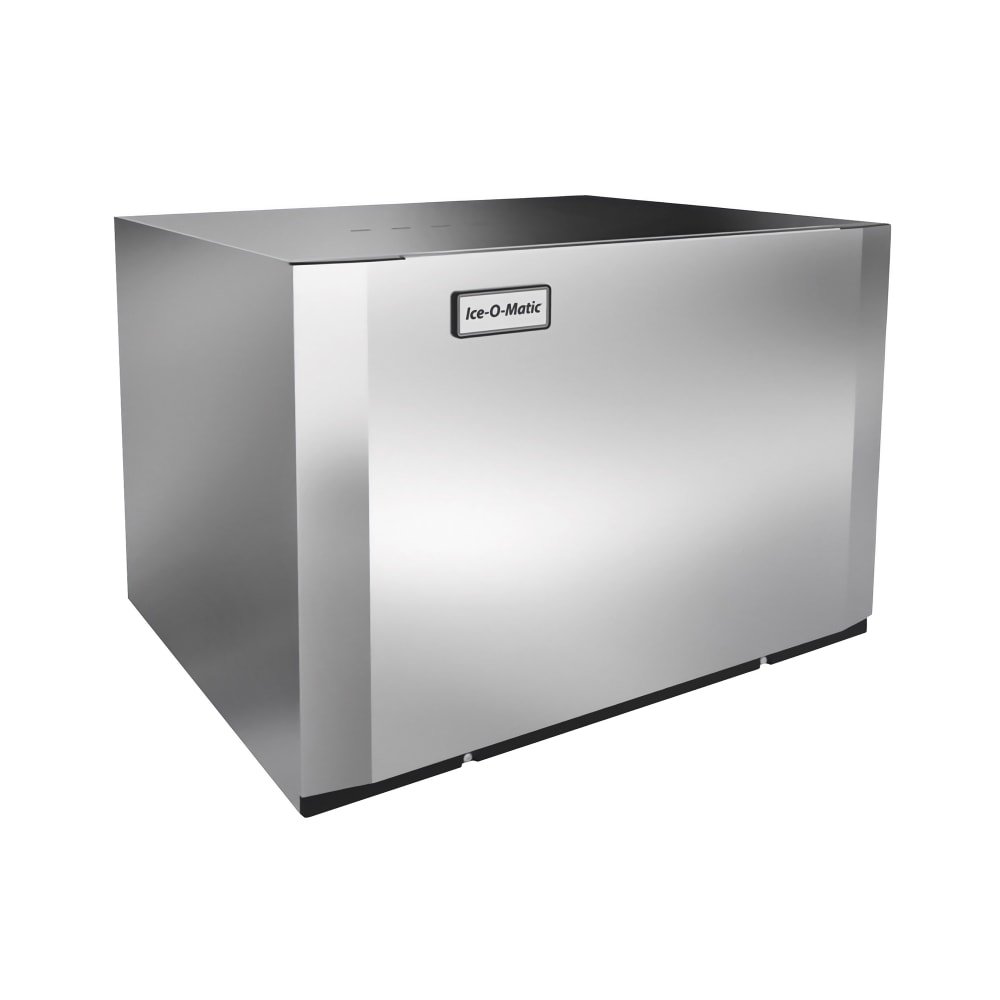

Ice-O-Matic CIM0530FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 550 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,426.00 /Each
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0530FW90 Description
The Ice-O-Matic CIM0530FW90 Elevation™ modular cube ice maker can produce 550 pounds of full-cube ice with a self-contained, water-cooled condenser. This type of ice machine does not produce as much heat and noise as air-cooled systems, but is typically only practical in facilities with water recirculating systems, since it requires a constant flow of cooling water. The full-cube ice measures 7⁄8 inch by 7⁄8 inch by 7⁄8 inch and is perfect for cooling drinks, dispensing, and bagging. The machine's Universal Smart Harness™ control board uses a common configuration, universal components, and digital diagnostics, all of which make it easier to startup and service the unit.
The Ice-O-Matic CIM0530FW90 Elevation modular cube ice maker has one-touch sanitizing and descaling controls, and an LED status display indicates when those cycles are needed. The food zone has no crevices, so it can be easily wiped down, and its plastic is formed with Agion®, an antimicrobial substance that inhibits bacterial growth. This head-only unit must be paired with a bin or dispenser, which must be purchased separately.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Makes full-cube ice that work well in soft drinks, cocktails, bagged ice operations, and more
- Ice measures 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- 24-hr. production capacity is 550 lbs. when ambient air is 70 degrees F
- R290 refrigerant
- Self-contained, water-cooled condenser requires dedicated water supply
- Universal Smart Harness control board has a common configuration, universal components, and digital diagnostics to make installation and service simple
- Plastic parts are BPA free and recyclable
- 115 V/60 Hz/1 ph, 17.4 A, 4.7 kW, 6252 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- One-touch controls for descaling and sanitizing
- LED status display indicates when the machine needs cleaning
- Food zone is free of crevices, so it can be easily wiped clean
- Ice production area surfaces are formed with Agion antimicrobial protection, which inhibits the growth of bacteria
- Dishwasher-safe components snap in and out
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, full cubes, 30"W, approximately 550 lb production/24 hours at 70°/50° (485 lb at 90°/70°), LED status display, one touch sanitize & descaling controls, dishwasher safe food zone components, self-contained water-cooled condenser, R290 refrigerant, cULus
Ice-O-Matic CIM0530FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 550 |
| Also Known As | CIM0530FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0500FW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0530FW90 Ice-O-Matic CIM0530FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 550 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,426.00 / Each | $3,931.00 / Each | $5,635.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 550 | 507 | 647 |
| Ice Type | Full Cube | Full Cube | Crescent Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 22 |
| Rating | Better | Best | Best |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | Prodigy ELITE® | KM EDGE X |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
