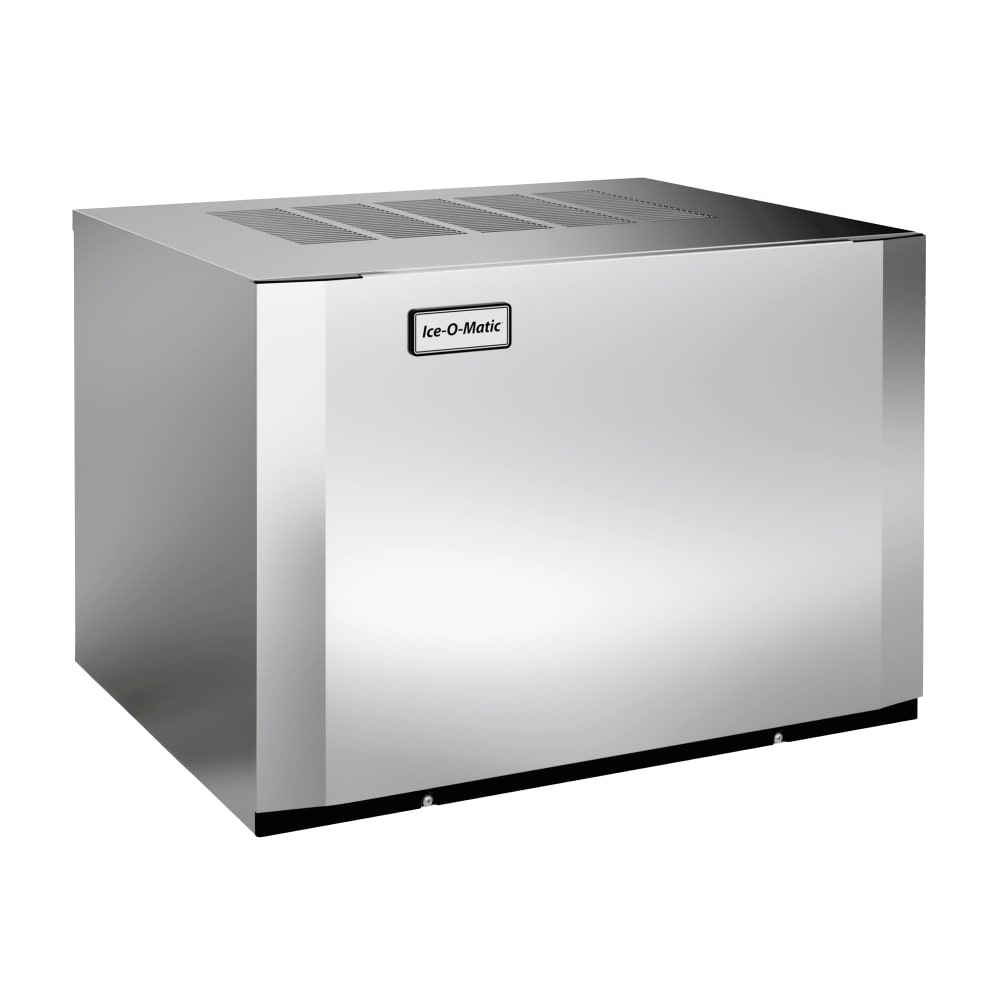

Ice-O-Matic CIM0530FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 561 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,046.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0530FA90 Description
The Ice-O-Matic CIM0530FA90 Elevation™ modular cube ice maker dispenses full-cube ice that is perfect for soft drinks and cocktails, and for bagging and dispensing systems. Since this is a head-only unit, it must be paired with a bin or dispenser, which must be purchased separately. In operating temperatures of 70 degrees Fahrenheit, the unit can produce 561 pounds of ice. It is easy to install and service thanks to the Universal Smart Harness™ control board that uses a common configuration, universal components, and digital diagnostics. It has a dual exhaust system that can discharge air pulled over the compressor from either the top or side, which allows for it being installed next to walls or in areas with low ceilings.
Cleaning the unit is simple thanks to its one-touch descaling and sanitizing controls; an LED status display indicates when cleaning is necessary. The Ice-O-Matic CIM0530FA90 Elevation modular cube ice maker’s plastic food zone is formed without crevices, so it is easy to wipe down. The food zone surfaces are formed with Agion® silver ion antimicrobial protection, which helps prevent the growth of bacteria and fungus like mildew. Key components in the ice production area can also be removed for cleaning and are dishwasher safe.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Dispenses full-cube ice that works well in soft drinks and cocktails
- Cubes measure 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Produces 561 pounds of ice per day
- R290 refrigerant
- Dual exhaust system allows hot air to discharge from the side or top, which increases install location options
- Air-cooled, self-contained condenser
- Must be paired with a bin or dispenser (sold separately)
- Universal Smart Harness control board uses a common configuration, digital diagnostics, and universal components to simplify installation and service
- Plastic parts are recyclable and BPA free
- Plastic food zone is formed to eliminate cervices, so it's easier to clean
- One-touch controls for descaling and sanitizing
- Agion antimicrobial protection inhibits the growth of bacteria
- LED status display indicates when cleaning is needed
- Dishwasher-safe components snap in and out for easy cleaning
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Watch a video about this product
Ice-O-Matic CIM0530FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 561 |
| Also Known As | CIM0530FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0500FA
- Ice-O-Matic ICE0500FT
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0530FA90 Ice-O-Matic CIM0530FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 561 lb/24 hr, Air Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,046.00 / Each | $3,869.00 / Each | $2,389.00 / Each | $5,460.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 561 | 476 | 525 | 673 |
| Ice Type | Full Cube | Full Cube | Full Cube | Crescent Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30.25 | 30 | 30 | 22 |
| Rating | Better | Best | Better | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Elevation Series™ | Prodigy ELITE® | KM EDGE X | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R410A | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
