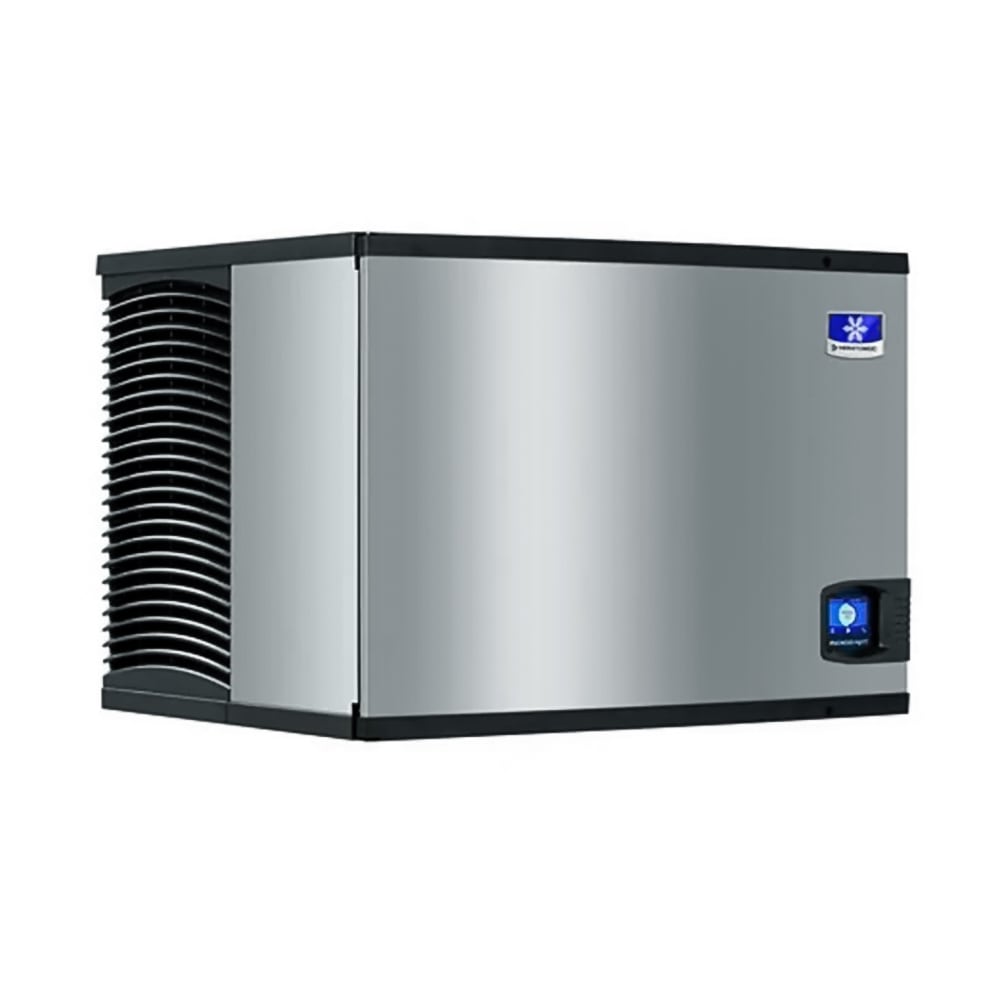

Manitowoc Ice IYP0500A 30" Indigo NXT™ Half Cube Ice Machine Head - 516 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,454.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0500A Description
The Manitowoc Ice IYP0500A 161 Indigo NXT™ ice maker head utilizes an air-cooled condenser system, and in a 24-hour period, it can produce 516 pounds of half-dice ice, which is plenty of product for small restaurants. On the front of the unit, the head's easyTouch® touch screen display enables programming, including setting an after-hours inactivity state, adjusting quotas by daily ice volume, and troubleshooting problems with diagnostic tools.
Cubes are created when water runs over the evaporator grid, freezes in place, and then falls into an ice bin below, which is sold separately. An acoustical ice sensing probe monitors cube thickness for the Manitowoc IYP0500A 161 commercial ice machine head, ensuring consistent production regardless of water conditions. The DuraTech® exterior beats stainless steel at corrosion resistance and features a clear coat to combat dirt stains and fingerprint smudges. For streamlined cleaning, key elements inside the unit are removable.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT series
- 516-lb. maximum daily ice production
- Air-cooled system

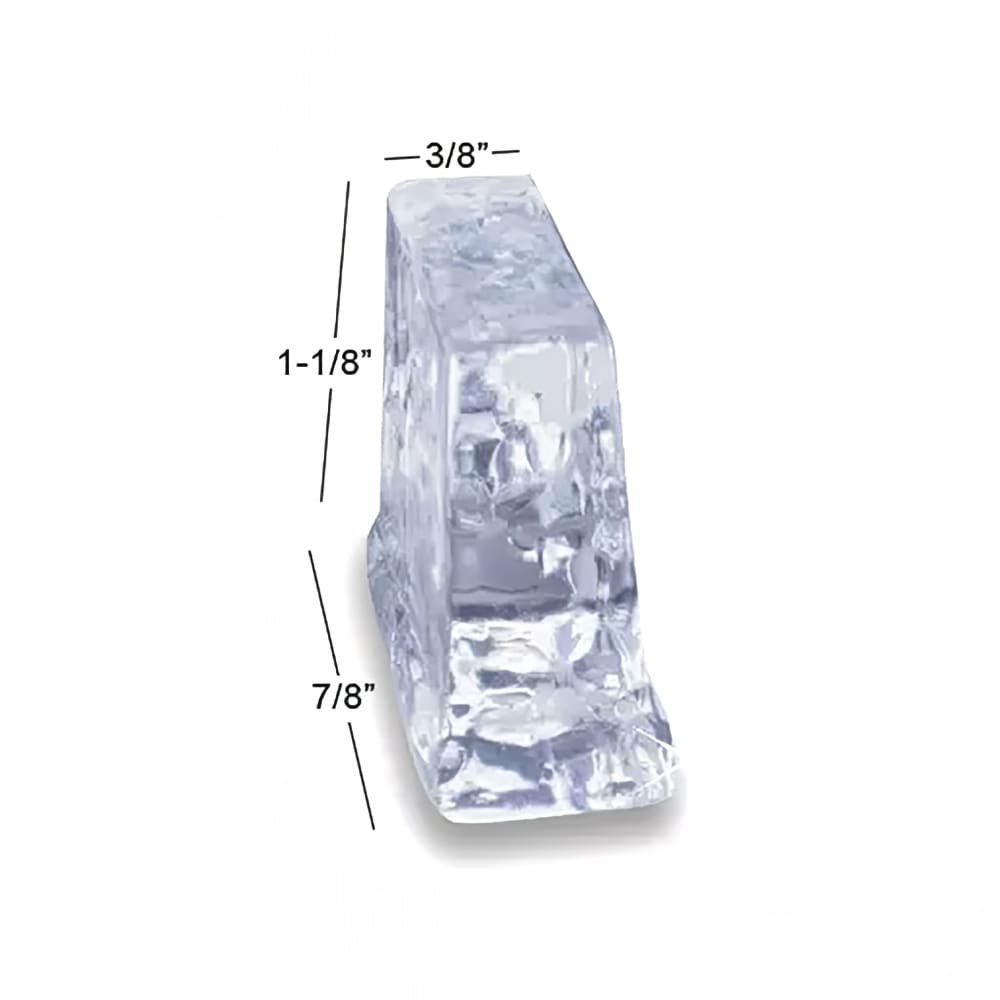

- Produces half-dice ice measuring 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.

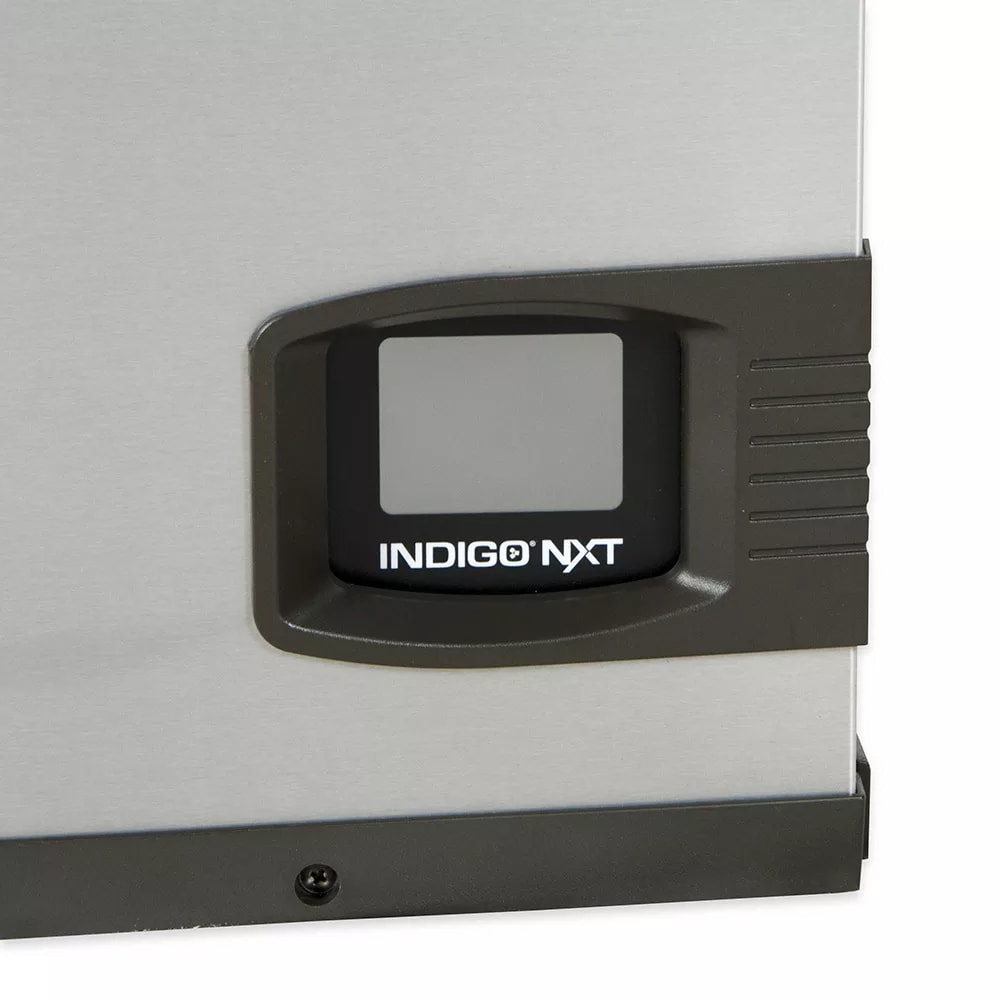

- EasyTouch features straightforward icon-based navigation
- DuraTech exterior holds up well against dirt, fingerprint smudges, and corrosion
- Acoustical ice sensing probe oversees ice cube thickness
- Water trough, distribution tube, curtain, water probe, and water pump are all removable to expedite cleaning
- Intelligent diagnostics help user figure out problems
- Ice bin sold separately
- Uses R410A refrigerant
- Ambient temperature range: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- 3,800 average BTU; 6,000 peak BTU
- 30 in. W x 24 in. D x 21 1⁄2 in. H
- 11.5 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0500A within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 516 lb./24 hours at 70°/50° (444 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Watch a video about this product
Manitowoc Ice IYP0500A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 516 |
| Also Known As | IYT0500A |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 159.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice IY0504A161
Compare to Similar Items
| Attributes |
Manitowoc Ice IYP0500A Manitowoc Ice IYP0500A 30" Indigo NXT™ Half Cube Ice Machine Head - 516 lb/24 hr, Air Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,454.00 / Each | $3,945.00 / Each | $3,945.00 / Each | $4,790.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 516 | 478 | 483 | 545 |
| Ice Type | Half Cube | Half Cube | Full Cube | Crescent Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30 | 30 | 30 | 30 |
| Rating | Best | Best | Best | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Indigo NXT™ | Indigo NXT™ | Indigo NXT™ | KM EDGE X |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
