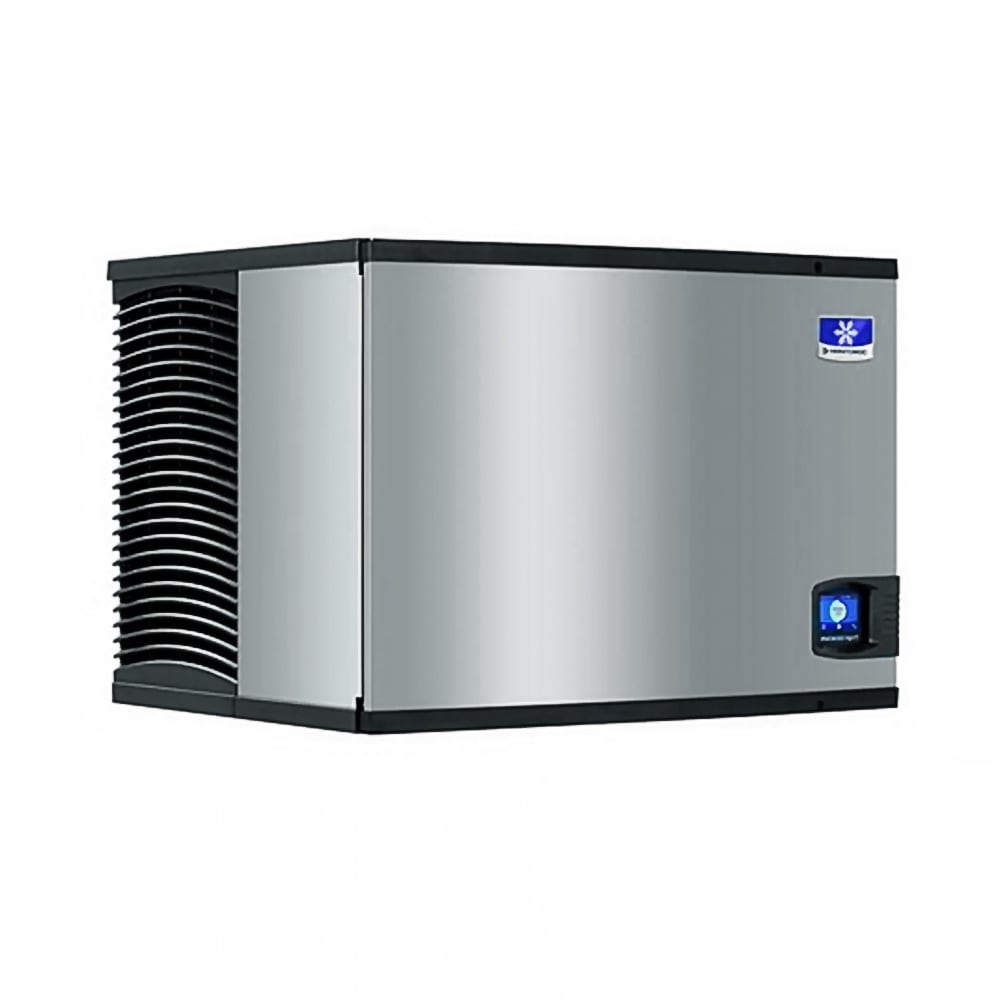

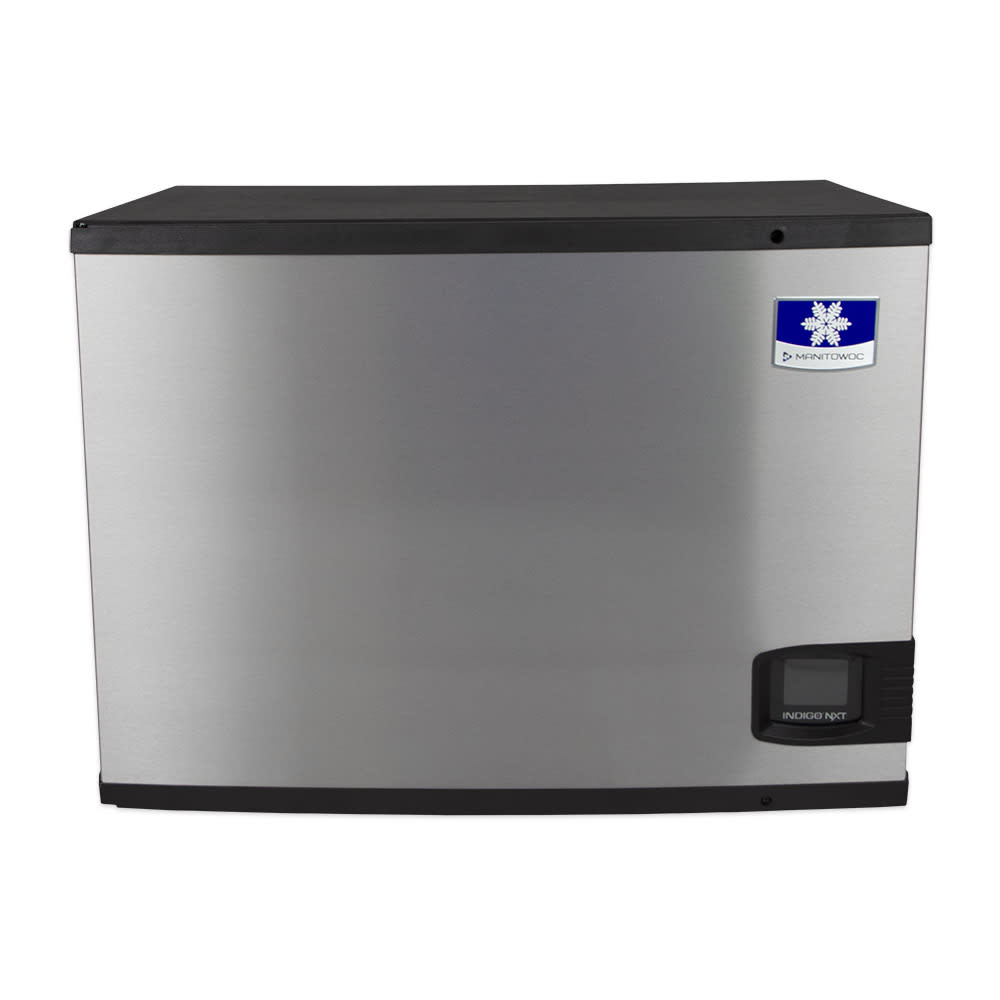

Manitowoc Ice IYP0500W 30" Indigo NXT™ Half Cube Ice Machine Head - 509 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,771.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0500W Description
In a 24-hour period, the Manitowoc Ice IYP0500W Indigo NXT™ ice maker head can churn out 509 pounds of half-dice ice, making it a great fit for kitchens of small needs. Because the head's condenser is water cooled, setup is extensive and considerable water is required, but the reward is heightened efficiency. An easyTouch® display uses icons to guide users through options, such as troubleshooting diagnostics, programming for daily production, and setting after-hours shutdown times.
The commercial ice machine head's DuraTech® exterior has a clear coat, which defends against fingerprint residue, dirt smudges, and corrosion buildup. An acoustical ice sensing probe monitors the cube thickness to make sure they turn out right every time. To increase convenience, this Manitowoc Ice IYP0500W ice machine head has key components that are removable for cleaning and feature antimicrobial protection.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT series
- 509-lb. maximum daily ice production
- 455-lb. AHRI-certified daily ice production
- Water-cooled system

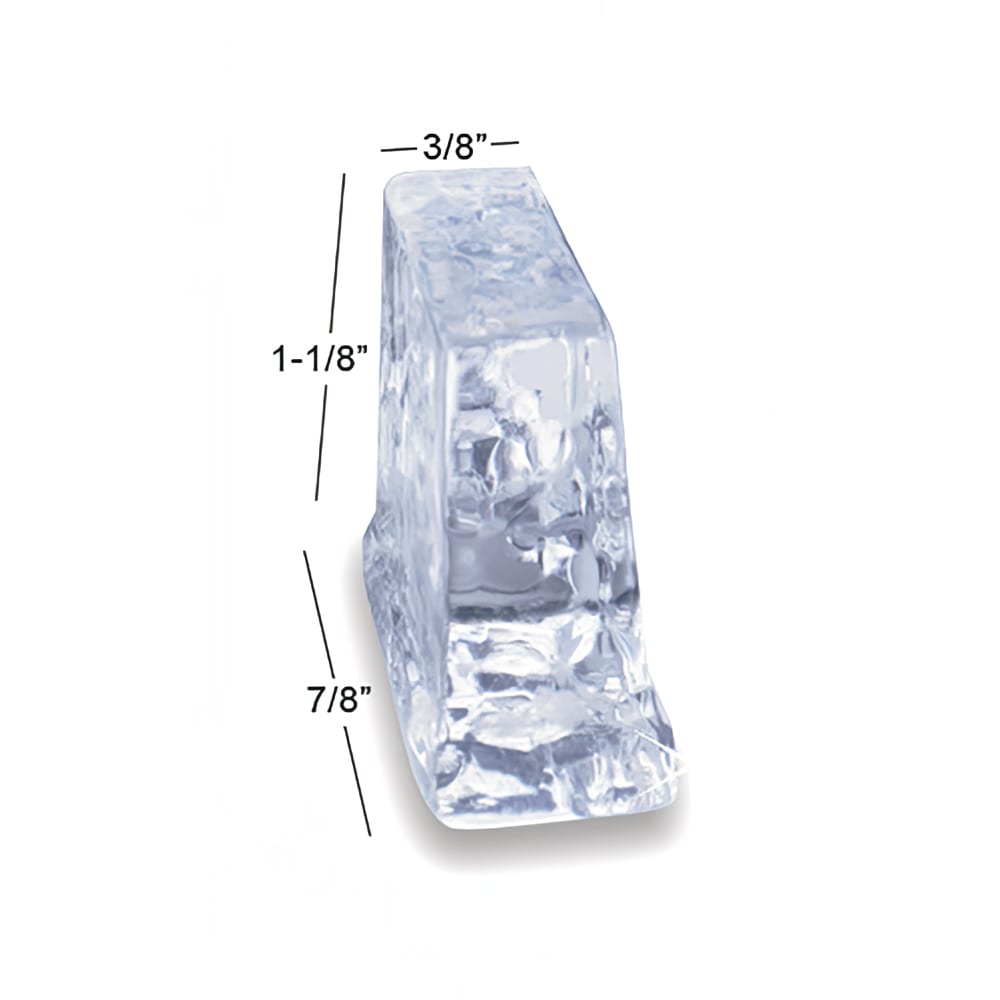

- Produces half-dice ice that measures 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
- EasyTouch screen has a straightforward icon-based interface
- DuraTech exterior provides resistance to corrosion, dirt, and fingerprint smudges
- Acoustical ice sensing probe monitors ice cube thickness
- Water trough, distribution tube, curtain, water probe, and water pump are all removable for expedited cleaning
- Intelligent diagnostics help user figure out problems
- Ice bin is not included
- Uses R290 refrigerant
- Ambient temperature range: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- 3,800 average BTU; 6,000 peak BTU
- 30 in. W x 24 in. D x 21 1⁄2 in. H
- 10.8 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0500W within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21.5"H, production capacity up to 509 lb/24 hours at 70°/50° (455 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Watch a video about this product
Manitowoc Ice IYP0500W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 509 |
| Also Known As | IYT0500W, IYT0500W-161 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 161.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice IY0505W161
Compare to Similar Items
| Attributes |
Manitowoc Ice IYP0500W Manitowoc Ice IYP0500W 30" Indigo NXT™ Half Cube Ice Machine Head - 509 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $4,771.00 / Each | $3,931.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 509 | 507 |
| Ice Type | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 |
| Rating | Best | Best |
| Voltage | 115 | 115 |
| Series | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
