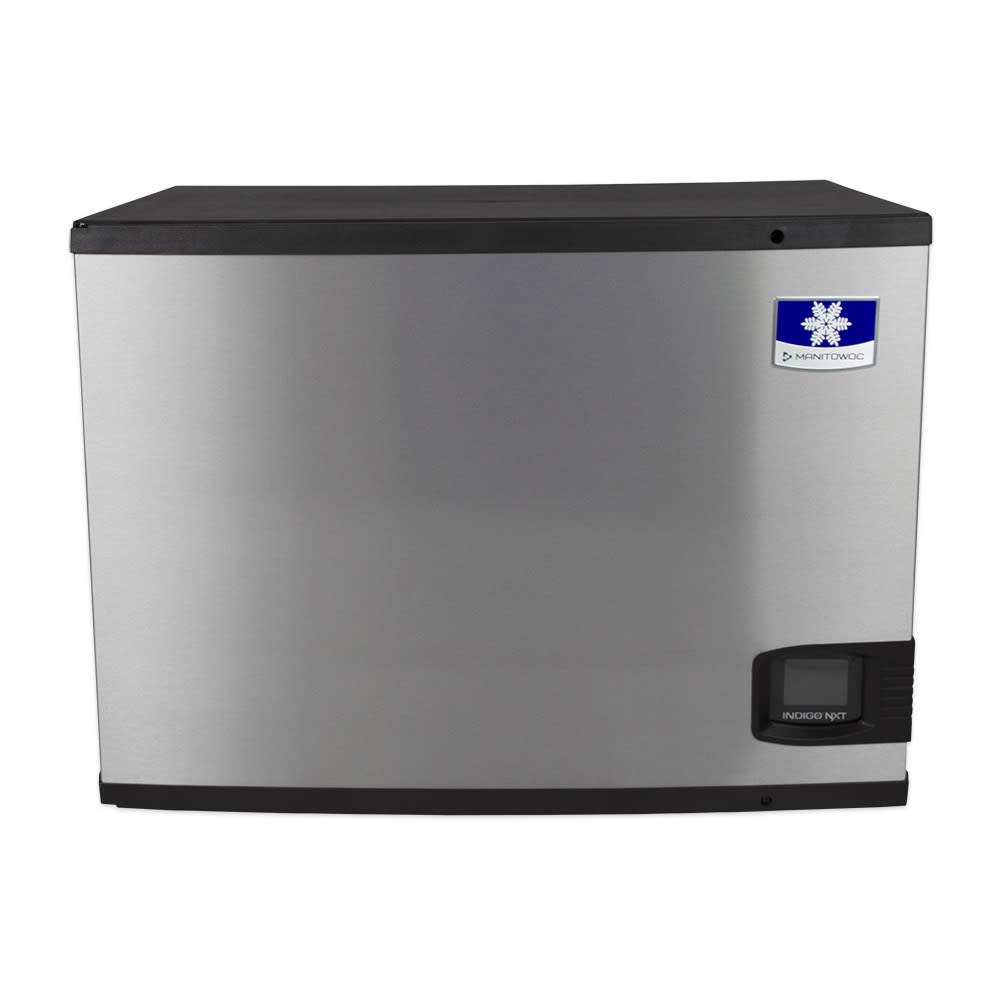

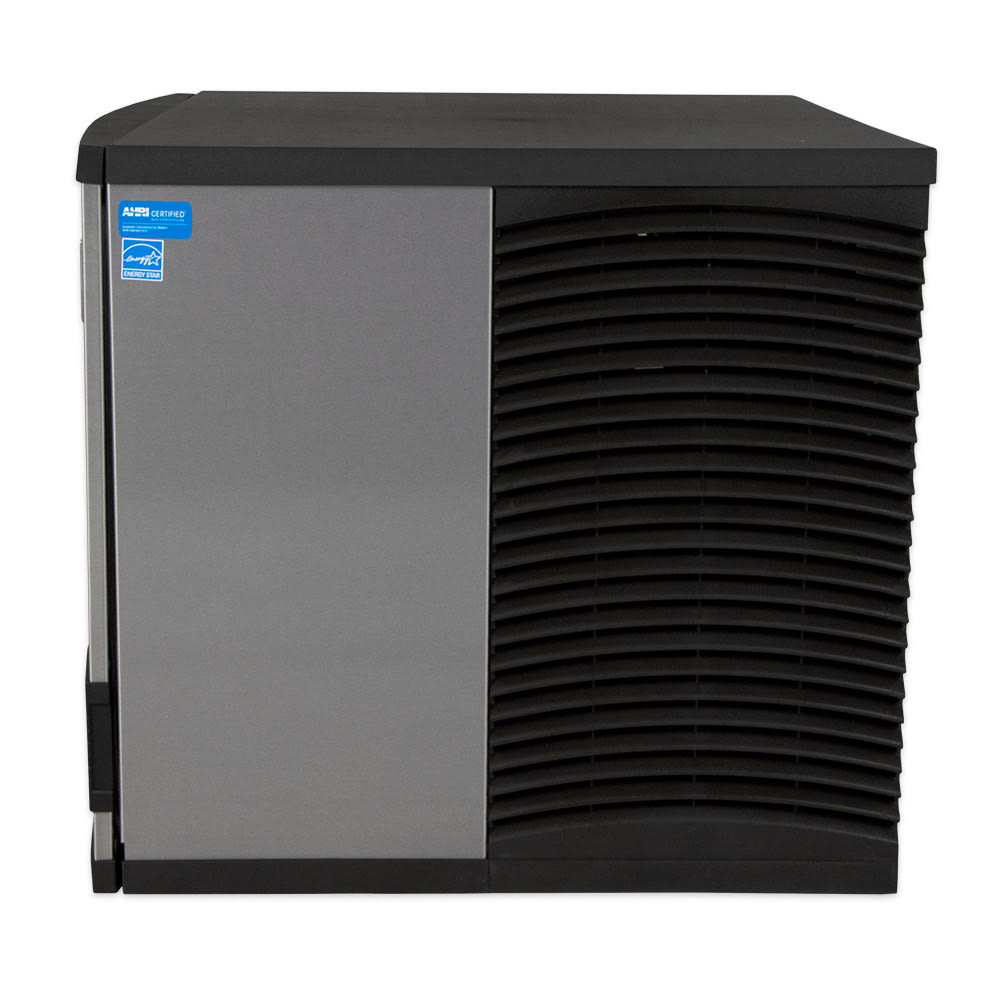

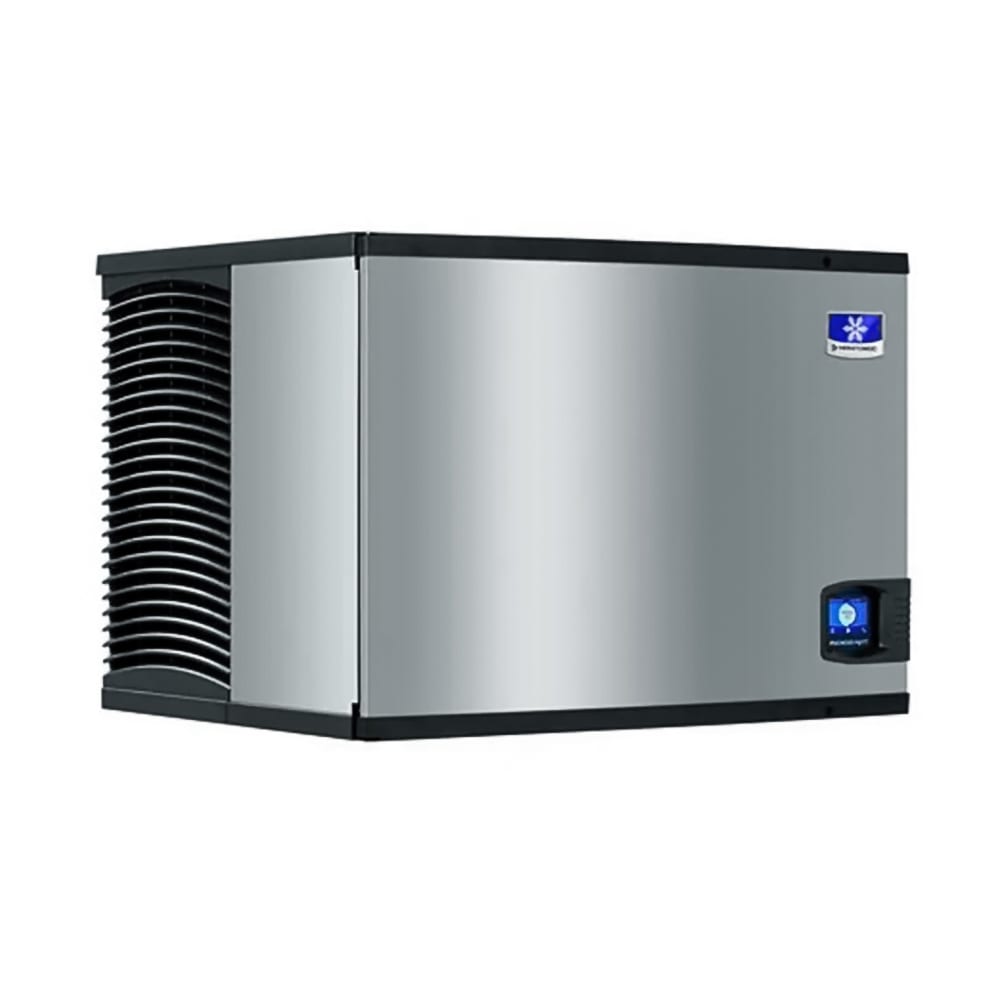

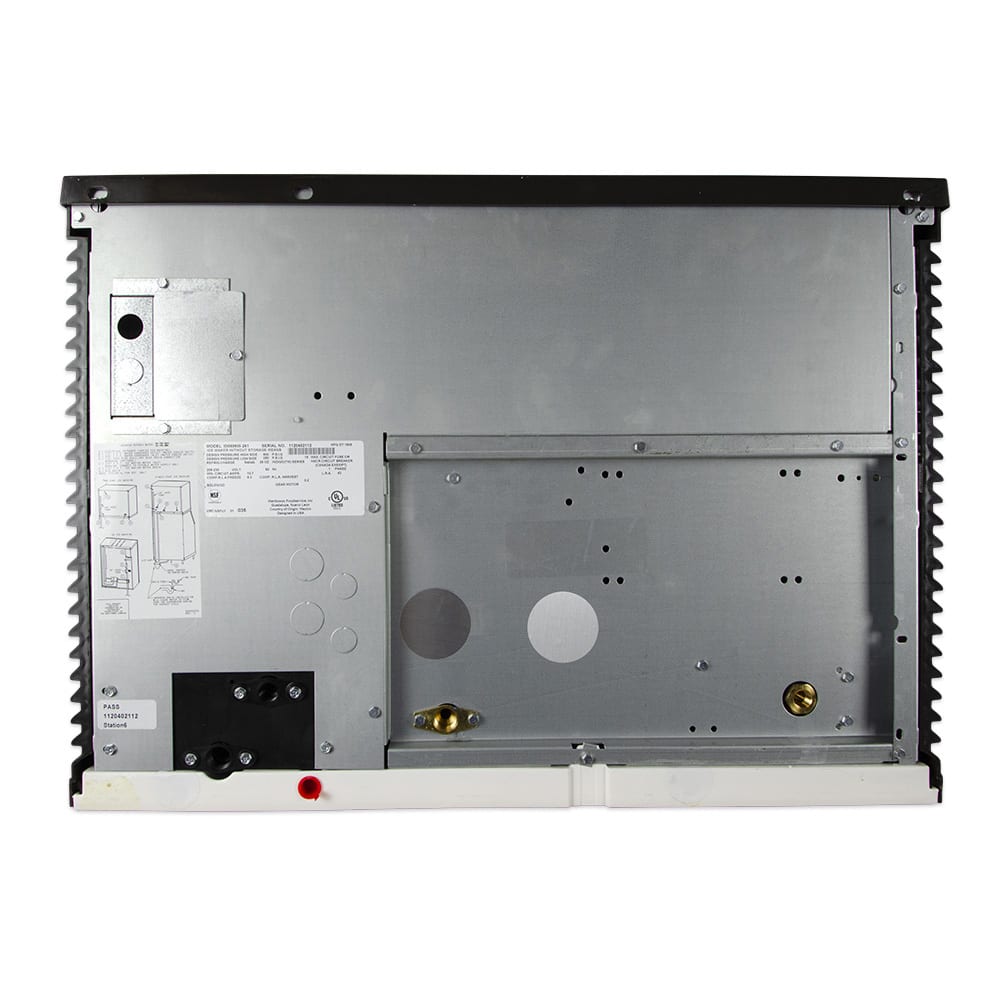

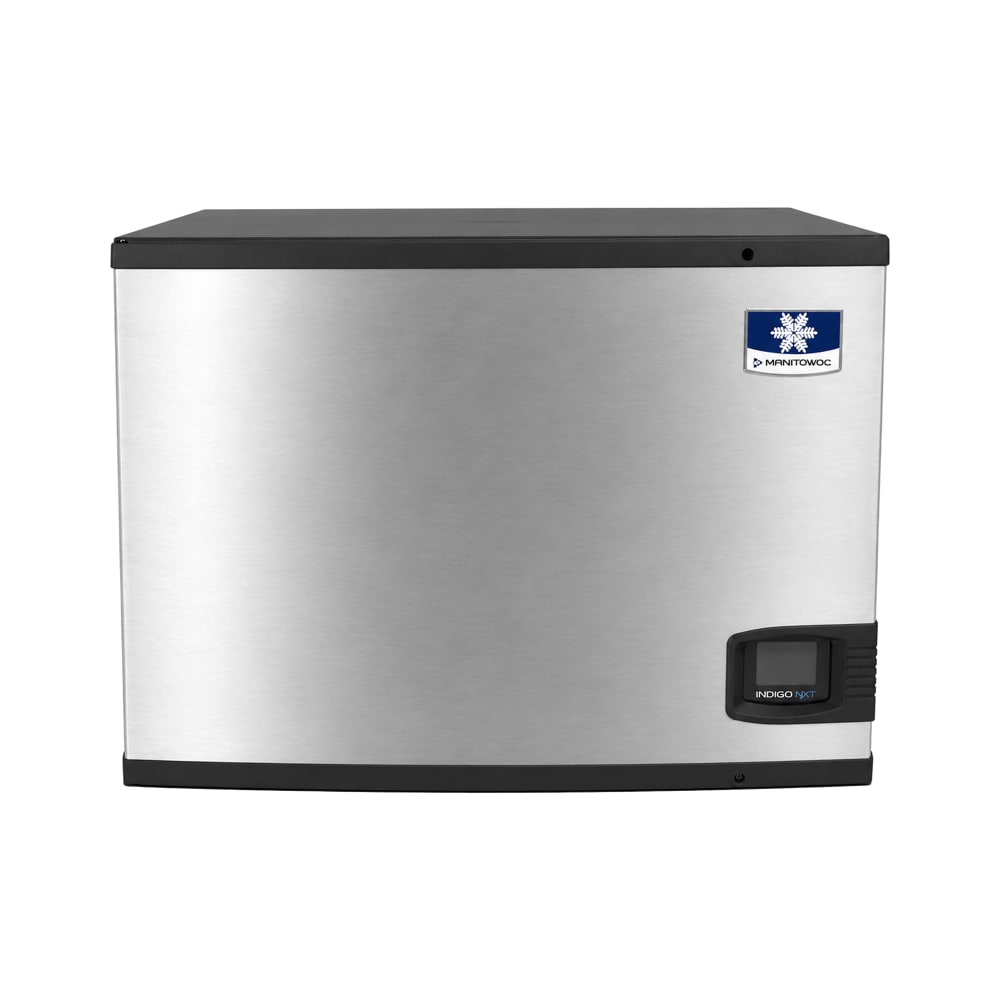

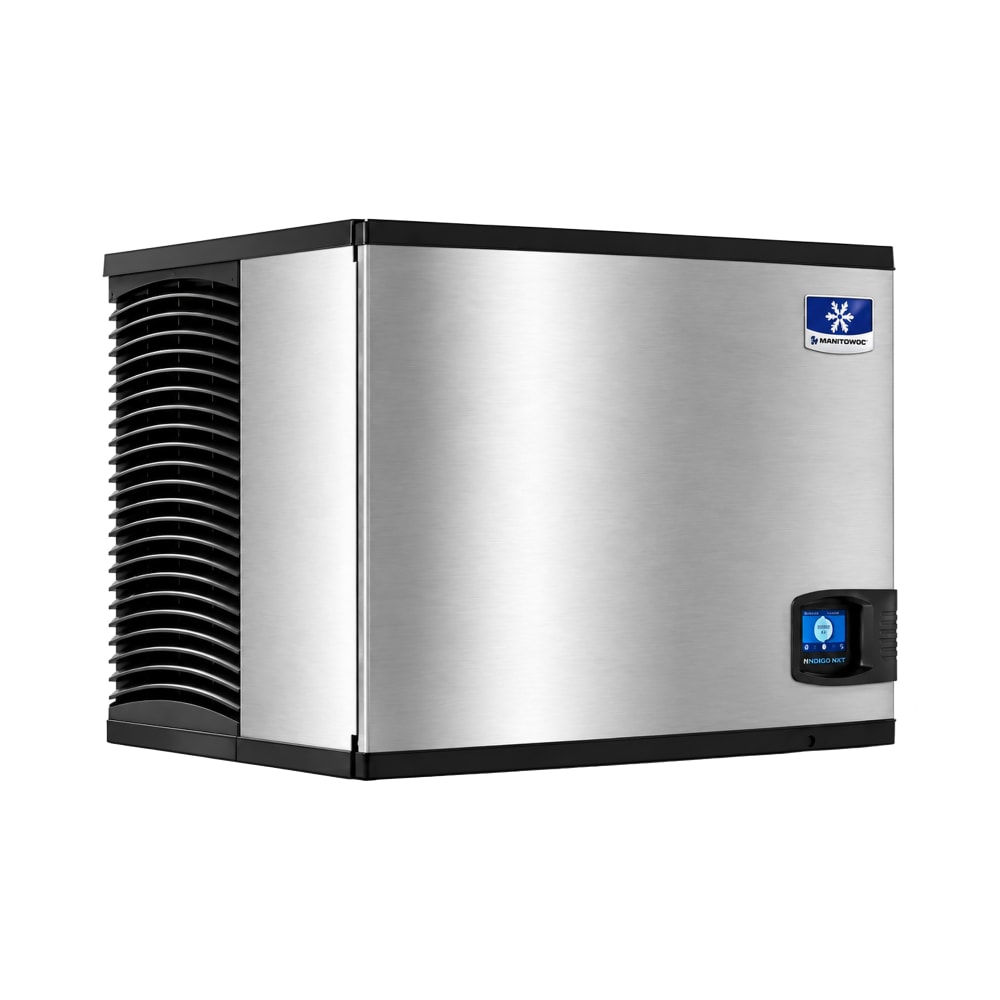

Manitowoc Ice IDT0500W 30" Indigo NXT™ Full Cube Ice Machine Head - 500 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,771.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDT0500W Description
Over the course of a day, the Manitowoc Ice IDT0500W Indigo NXT™ ice machine head can make 500 pounds, but this amount is only possible if ambient air and incoming water temperatures are at an ideal level. It makes dice-size ice, which is often called full-cube ice; these cubes are used in drinks in bars and restaurants. The unit has a water-cooled condenser, so it requires a large amount of water to operate.
The Manitowoc Ice IDT0500W ice machine head has a water-cooled, self-contained condenser and makes full-size ice cubes. To keep the unit in working condition, self-diagnostics and preventative maintenance run 24 hours a day, and multiple components can be removed for cleaning. Additionally, the stainless steel exterior is coated with DuraTech® to prevent smudges and fingerprints, and the interior uses AlphaSan® antimicrobial to prevent bacteria formation. This unit detects ice density with soundwaves to assure a they are the correct size every time before dropping.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 500-lb. maximum ice production in 24 hrs.
- 400-lb. AHRI-certified ice production in 24 hrs.

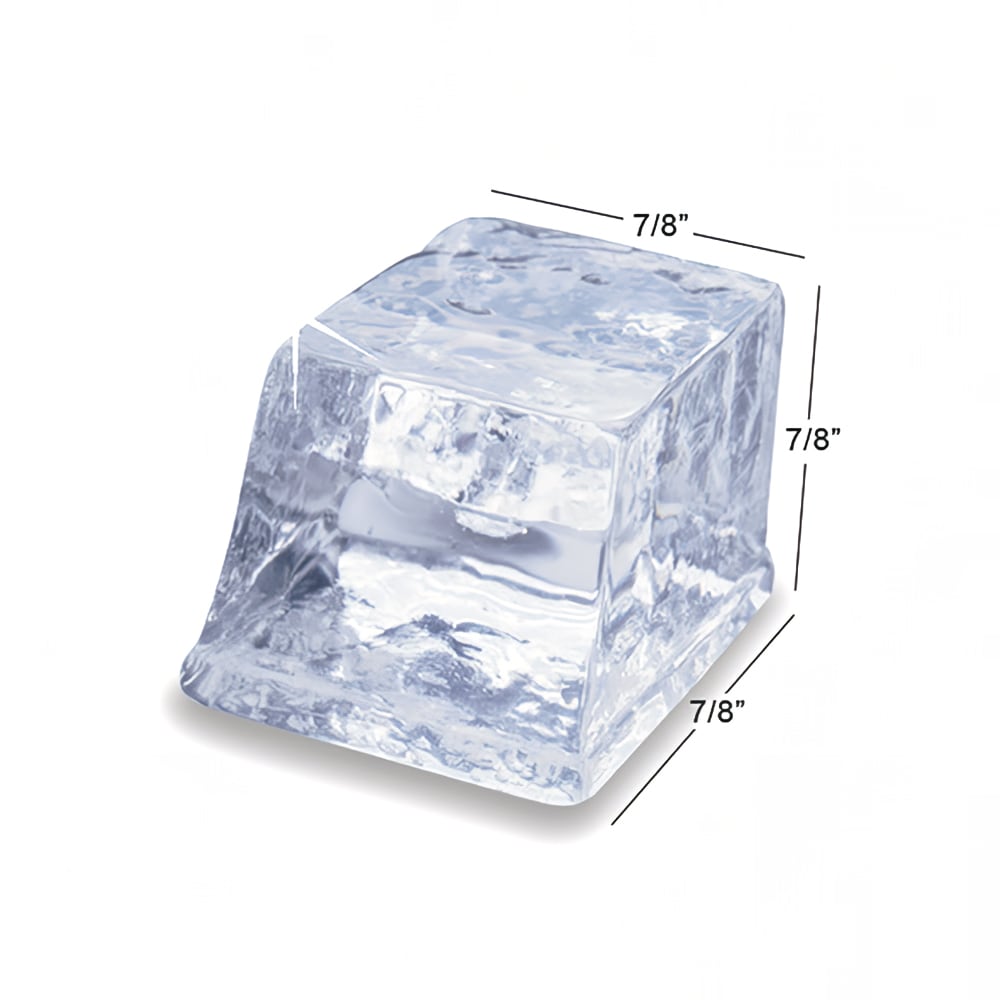

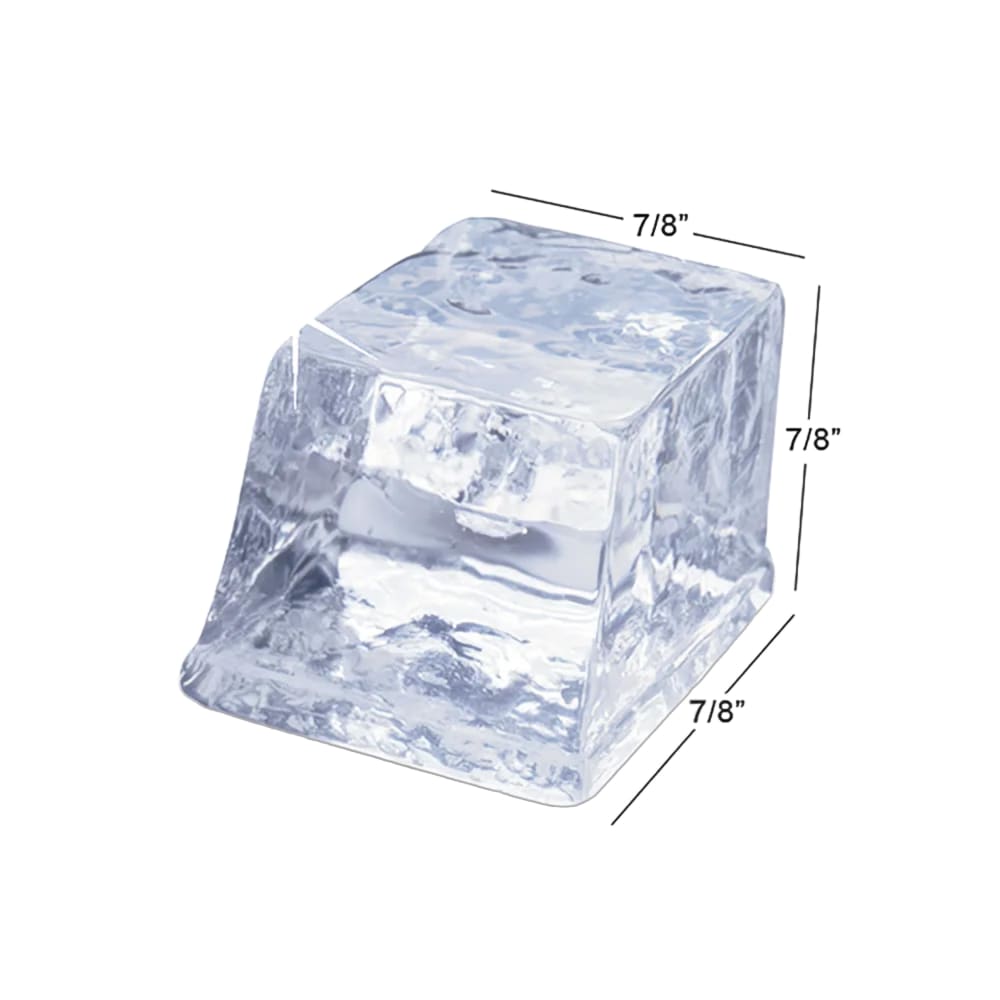

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Stainless steel clear coated with smudge-resistant DuraTech
- AlphaSan antimicrobial prevents internal bacteria growth
- For cleaning, water-trough, tube, curtain, probe, and pump are removable
- Acoustical ice sensing probe detects ice thickness
- All-day preventative maintenance and diagnostics
- Internal components accessed by hinged door
- Programmable by time or ice volume
- Icon-based touchscreen controls
- Self-contained water-cooled condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
- 30 in. W x 24 in. D x 21.5 in. H
- 10.8 A, 4.41 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDT0500W within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 500 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE
Watch a video about this product
Manitowoc Ice IDT0500W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 500 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 163.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice ID0503W161
Compare to Similar Items
| Attributes |
Manitowoc Ice IDT0500W Manitowoc Ice IDT0500W 30" Indigo NXT™ Full Cube Ice Machine Head - 500 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $4,771.00 / Each | $3,931.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 500 | 507 |
| Ice Type | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 |
| Rating | Best | Best |
| Voltage | 115 | 115 |
| Series | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R410A | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
