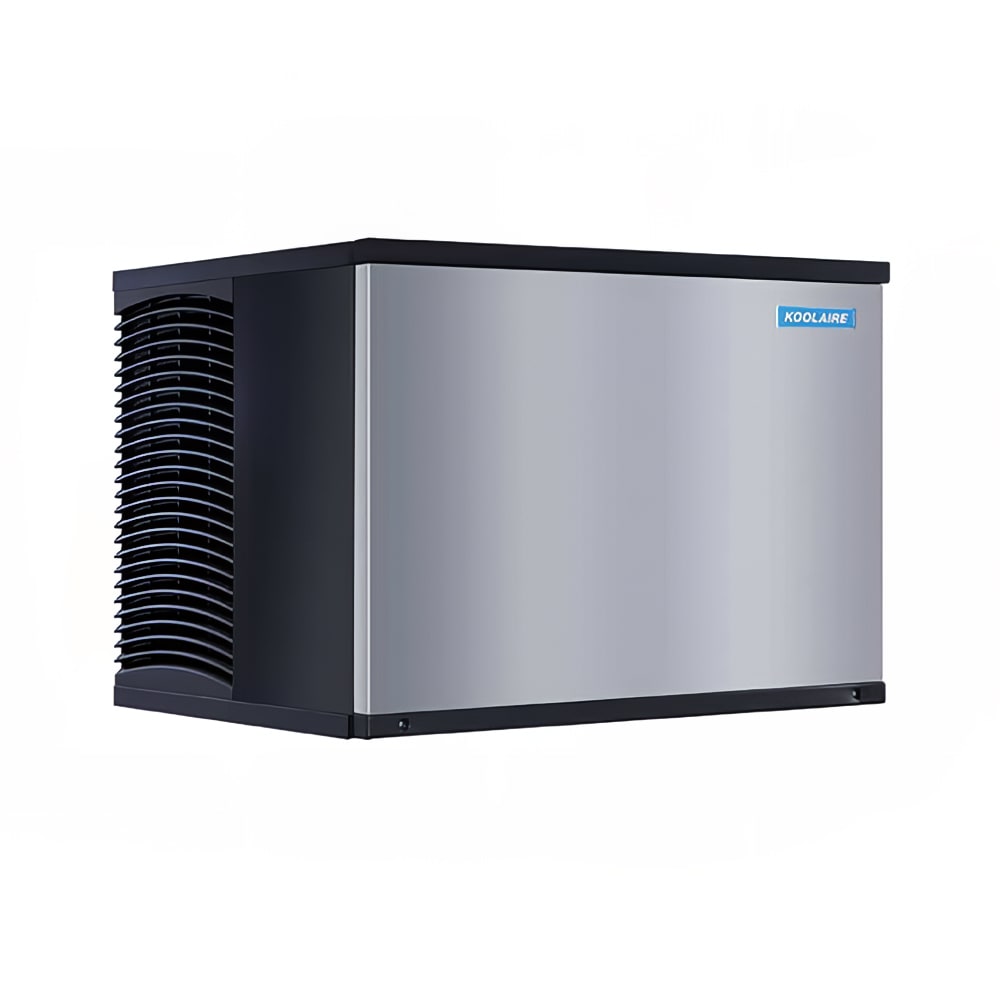

Koolaire KDP0500A 30" Ice Kube Full Cube Ice Machine Head - 502 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,161.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDP0500A Description
The Koolaire KDP0500A 161 ice machine can produce 502 pounds of ice if the ambient air and incoming water temperatures are ideal. Its AHRI-certified ice production capacity is 400 pounds. Great for nearly any application, full-cube ice will not melt quickly, but it does not cool drinks quickly or take up as much space in glasses as smaller ice types. Water that will turn into ice runs through the white plastic food zone, which has removable parts that must be cleaned frequently. To access this part of the unit, two screws in the door should be removed, as well as the door itself.
The Manitowoc KDP0500A 161 ice machine produces ice when the toggle switch is turned to its "ice" cycle and the water curtain is shut. Air-cooled refrigerant lines cool the evaporator plate as water runs over it. This water freezes in the individual cells to create cubes, and once water flows over the ice thickness float switch, water flow shuts off. The ice's thickness is measured by the harvest switch, which then warms the refrigerant lines and the evaporator plate to release the ice into a bin.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 502-lb. ice production capacity
- 2 screws and the door must be removed for food zone access
- Food zone is constructed of white plastic, so staff can see when it needs to be cleaned
- Removable distribution tube, floats, pump, trough, and water shield
- Finish on the exterior resists smudges and fingerprints
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R290 refrigerant
- Ice bin or dispenser sold separately
- Requires an ice deflector when paired with an ice bin but not with a dispenser
- 5,300 average BTU; 6,100 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and sides clearance: 8 in.
- Required rear clearance: 5 in.
- Water curtain must be shut and the toggle switch set to "ice"
- Water is removed from the trough by the purge cycles
- Air-cooled refrigerant lines
- Evaporator is chilled with cool refrigerant lines
- Cubes are frozen when the water running over the evaporator plate gets cold
- Water flow is turned off by the ice thickness float switch
- Harvest float switch is turned on when the ice sheet is a certain thickness
- Evaporator plate is warmed by refrigerant lines to release the ice
- 30 in. W x 24 in. D x 21.5 in. H
- 12.7 A, 5.4 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0500A within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 502 lb/24 hours at 70°/50° (391 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Koolaire KDP0500A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 502 |
| Also Known As | KDT0500A |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 27.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 156.00 |
