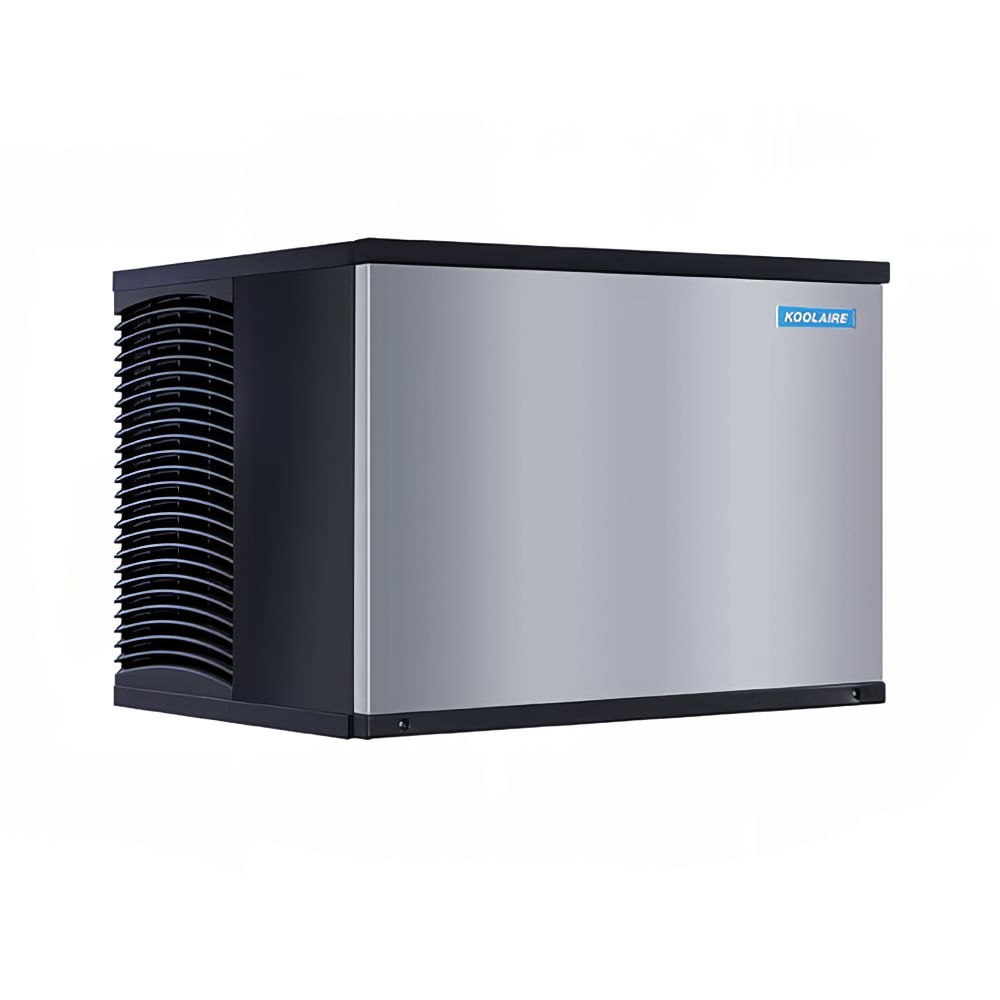

Koolaire KDP0500W 161 30" Ice Kube Full Cube Ice Machine Head - 478 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,328.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Koolaire KDP0500W 161 Description
The Koolaire KDP0500W 161 ice maker uses water to cool its refrigerant lines, which run over the evaporator to cool the plate. Water flows over the evaporator plate and freezes in the cells when chilled. Once water runs for a specific time, the ice thickness floater switch shuts off the flow. Then, the harvest cycle switch is turned on, warming the refrigerant lines that then warm the evaporator plate. Through this process, ice melts enough to fall off the plate and into a bin or dispenser.
Full-cube ice can be used for alcoholic drinks and other beverages. It does not take up as much space in glasses as smaller ice types but does not melt quickly. The Koolaire KDP0500W 161 ice machine can produce 478 pounds of ice, depending on ambient air and incoming water temperatures. Internal components can be removed from the white plastic food zone to facilitate cleaning. The exterior has a durable, corrosion-resistant finish.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 478-lb. ice production capacity
- Access to the food zone is provided by removing 2 screws and the door
- White plastic food zone should be cleaned regularly to prevent scale buildup
- Removable distribution tube, floats, pump, trough, and water shield
- Exterior finish resists smudges and fingerprints
- Full-cube size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R290 refrigerant
- Ice bin or dispenser sold separately
- Requires an ice deflector when paired with an ice bin but not with a dispenser
- 5,300 average BTU; 6,100 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and sides clearance: 8 in.
- Required rear clearance: 5 in.
- Toggle switch must be turned to the "ice" cycle, and the water curtain must be closed
- Trough water is removed by the purge cycle
- Water-cooled refrigerant lines
- Refrigerant lines cool the evaporator plate
- Water running over the evaporator plate freezes
- Ice thickness float switch is flipped by water flow
- Ice thickness turns on the harvest float switch
- Ice releases from the evaporator plate once the refrigerant lines warm it
- 30 in. W x 24 in. D x 21.5 in. H
- 12 A, 4.4 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0500W 161 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 478 lb/24 hours at 70°/50° (419 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Koolaire KDP0500W 161 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 478 |
| Also Known As | KDT0500W |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 27.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 163.00 |
