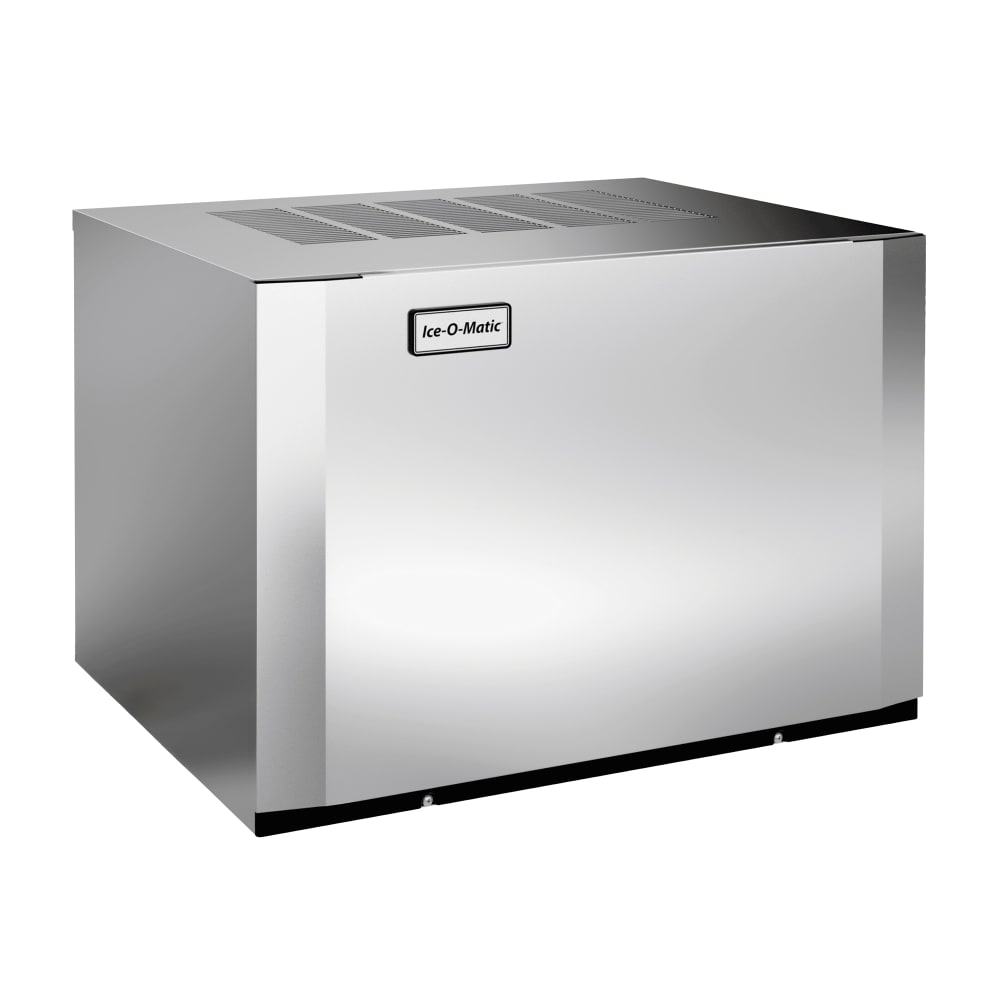

Ice-O-Matic CIM0636HA90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,726.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0636HA90 Description
The Ice-O-Matic CIM0636HA90 Elevation™ modular cube ice maker uses a Universal Smart Harness™ control board to simplify installation and maintenance. It is easy to clean with its one-touch descaling and sanitizing controls. At required cleaning times, the LED status display alerts the operator, and the dishwasher-safe components are easy to snap in and out of place. Since the plastic food zone is made without crevices, it is easy to wipe clean.
The R290 refrigerant is cooled with an air-cooled, self-contained condenser. With its dual exhaust system, air discharges from the top and side of the unit, maximizing installation possibilities. Producing up to 600 pounds of ice in a 24-hour period, the Ice-O-Matic CIM0636HA90 Elevation modular cube ice maker produces half-cube ice that measures 3⁄8 inch by 7⁄8 inch by 7⁄8 inch so they work well in blended drinks, sodas, and bagged ice operations.

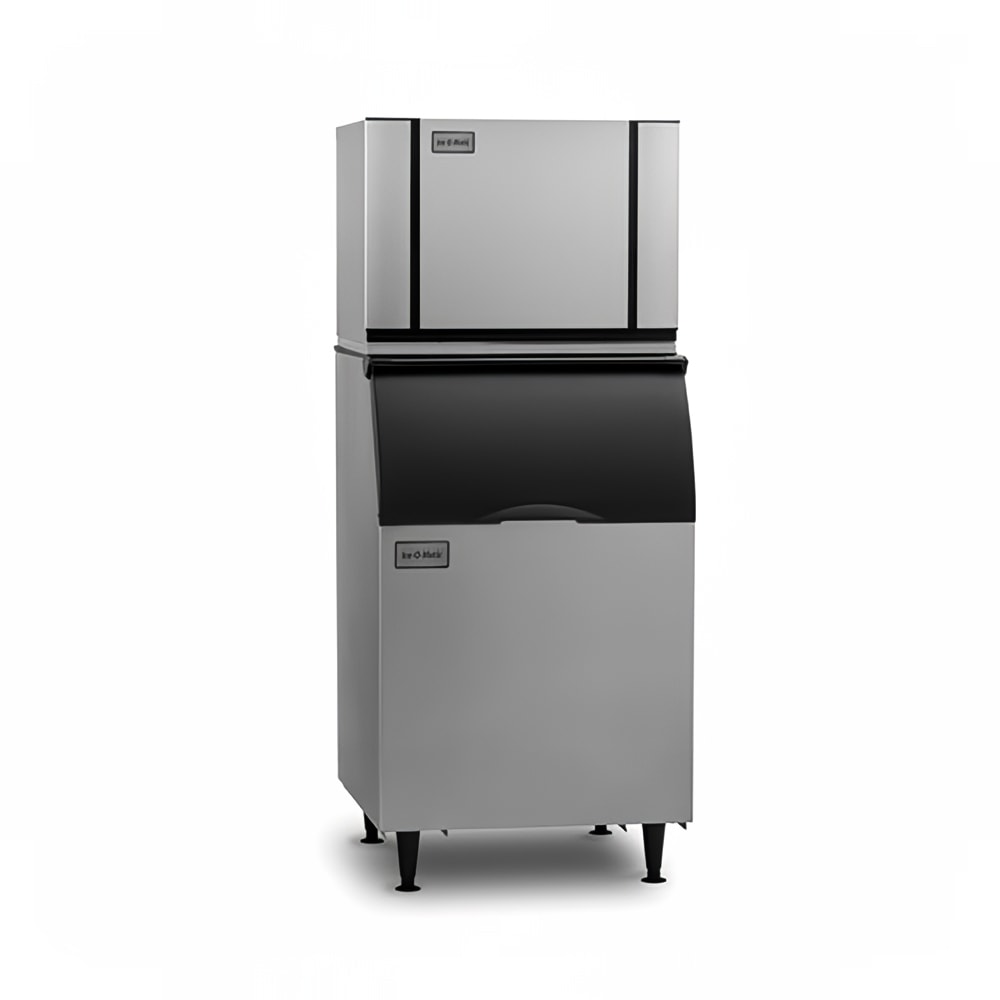

Note: This unit must be paired with an ice maker bin or ice dispenser.
- Makes half-cube, 3⁄8-in. x 7⁄8-in. x 7⁄8-in. ice
- Produces up to 600 lbs. of ice in 24 hrs. at 70 degrees F
- Produces up to 455 lbs. of ice in 24 hrs. at 90 degrees F
- Self-contained, air-cooled condenser is easy to service
- Air discharges from the top and side thanks to a dual exhaust system that increases installation flexibility
- Digital diagnostics, universal components, and the common configuration of the Universal Smart Harness control board make it easy to install and maintain
- Uses R290 refrigerant to maintain cold temperatures
- Plastic parts are recyclable and BPA-free
- 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Reduces the risk of bacteria growth with Agion® antimicrobial protection
- Required cleaning times are indicated on the LED status display

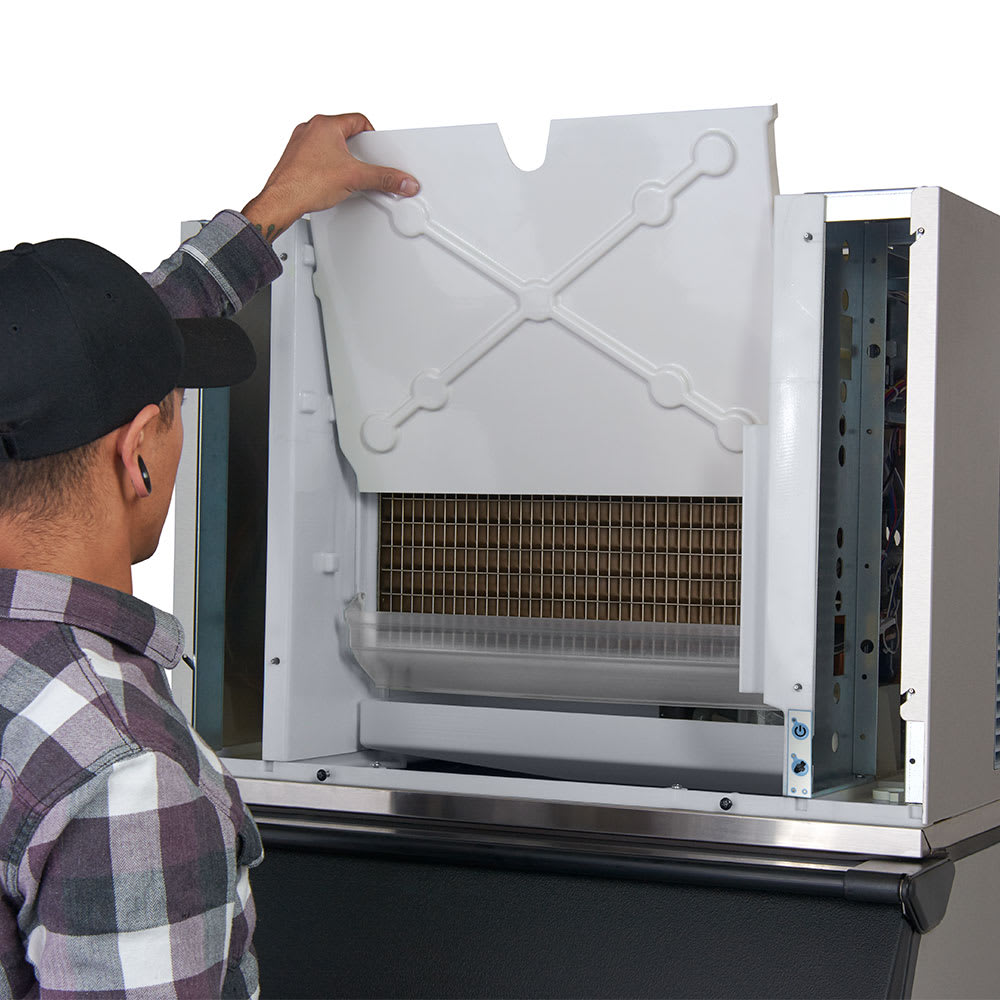

- Dishmachine-safe components easily snap in and out

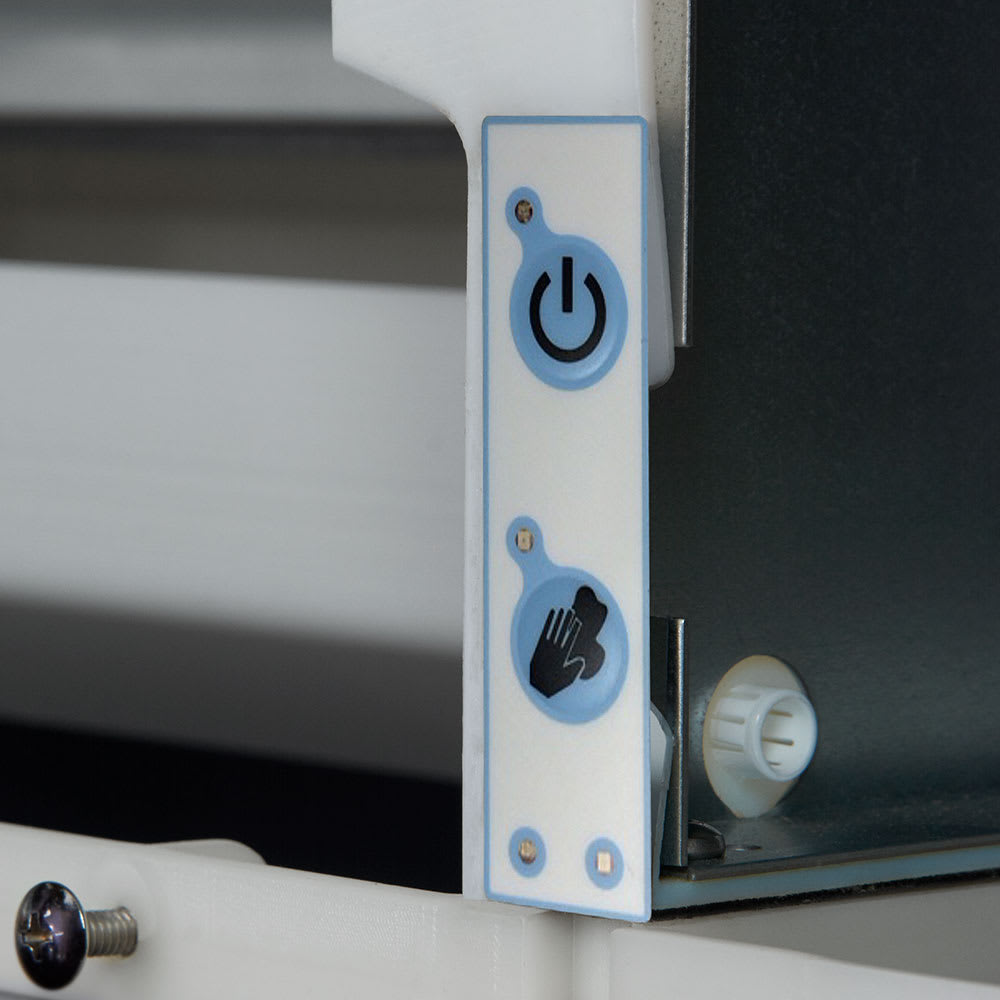

- One-touch controls simplify sanitizing and descaling
- Plastic food zone lacks crevices so it is easy to wipe clean
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636HA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0636HA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Also Known As | CIM0636HA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
