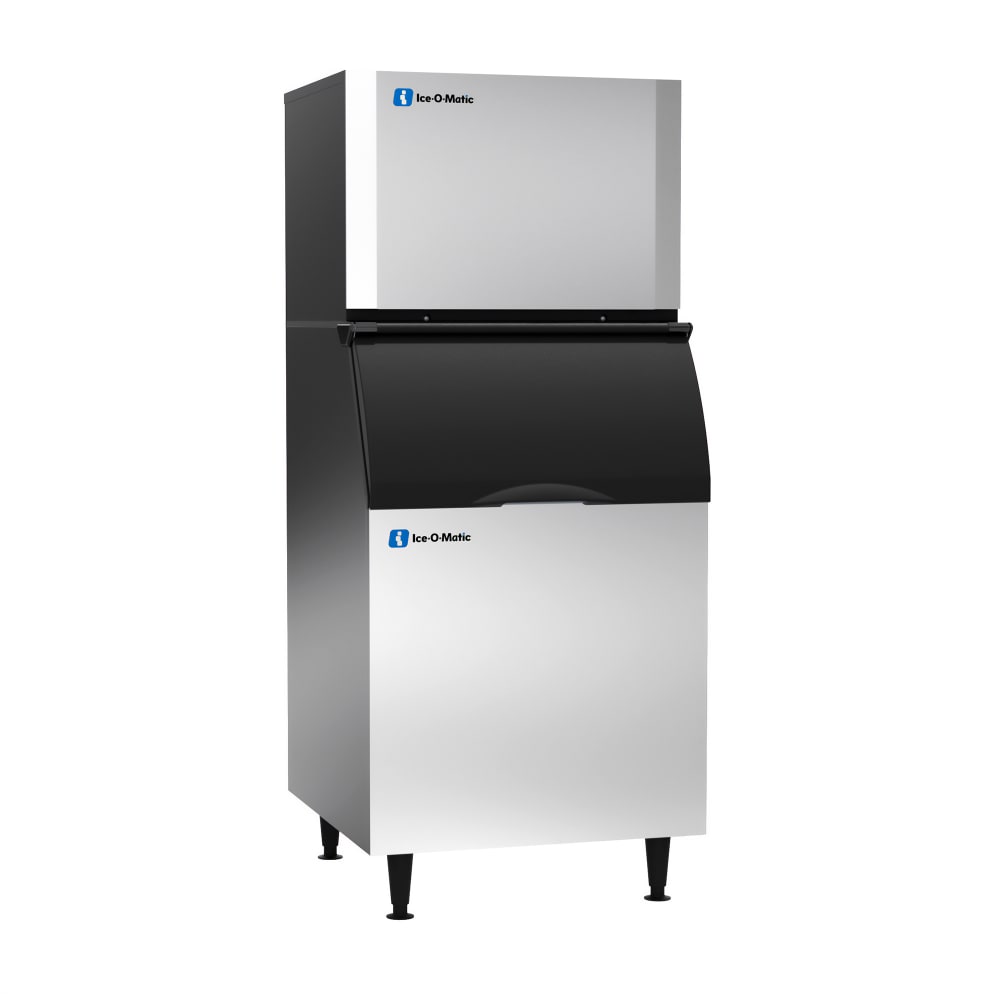

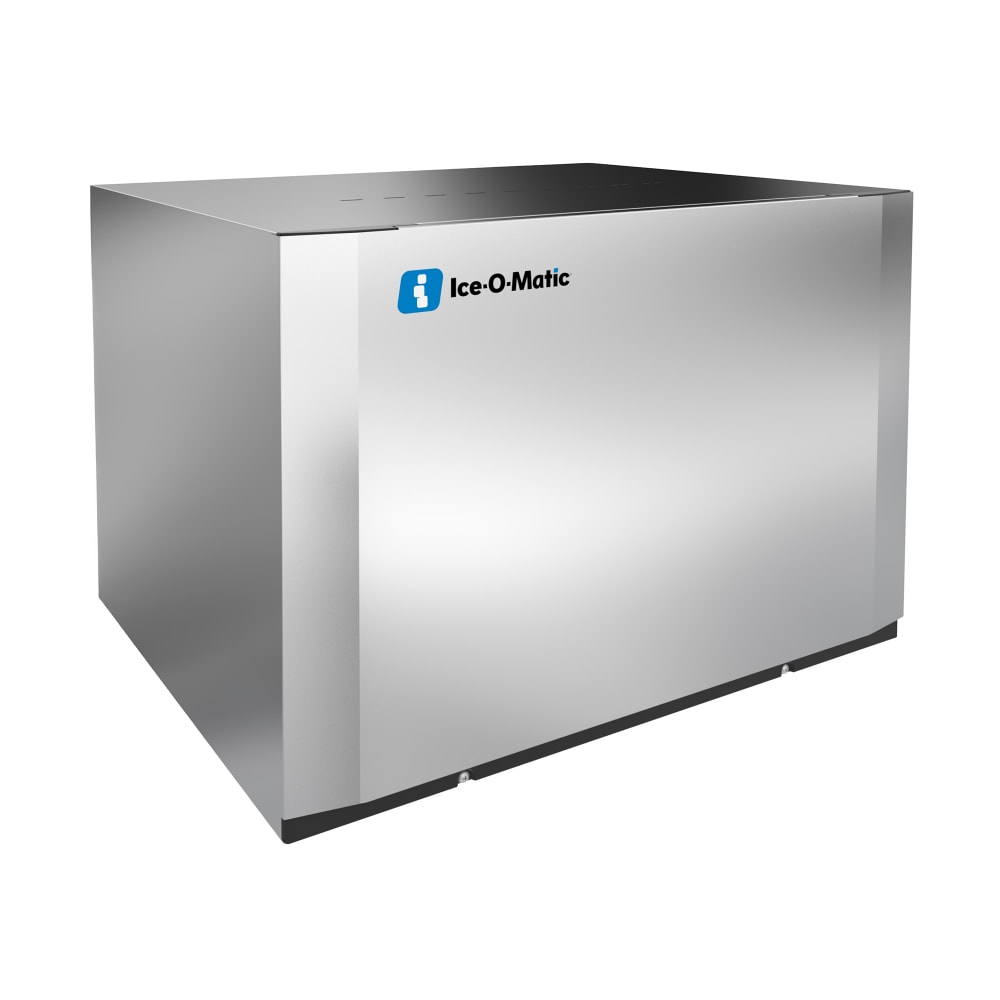

Ice-O-Matic CIM0636HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 620 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$5,073.00 /Each
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0636HW90 Description
The Ice-O-Matic CIM0636HW90 Elevation™ modular cube ice maker uses a self-contained, water-cooled condenser to produce less noise and heat. To make ice, R290 refrigerant is used to remove heat from water. It can produce up to 620 pounds of half-cube ice in 24 hours at 70 degrees Fahrenheit or up to 535 pounds at 90 degrees Fahrenheit. Measuring 3⁄8 inch by 7⁄8 inch by 7⁄8 inch, the ice is perfect for soft drinks and blended frozen drinks.
Installing and servicing the unit is easy with the Universal Smart Harness™ control board's universal components and digital diagnostics. When cleaning is required, the LED status display alerts the staff. The Ice-O-Matic CIM0636HW90 Elevation modular cube ice maker has one-touch controls for sanitizing and descaling. The food zone is easy to wipe clean since it is plastic and made without crevices.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Produces ice that is half-cube and measures 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Makes up to 620 lbs. of ice in 24 hrs. at 70 degrees F or up to 535 lbs. of ice in 24 hrs. at 90 degrees F
- Universal Smart Harness control board has a common configuration and uses digital diagnostics and universal components to simplify maintenance and installation
- R290 hydrocarbon refrigerant
- Self-contained condenser is water-cooled so it is efficient
- R290 refrigerant keeps temperatures cold
- Recyclable plastic parts are BPA free
- 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Agion® antimicrobial protection reduces bacteria growth
- One-touch descaling and sanitizing controls simplify cleanup
- Dishwasher-safe parts are easy to remove since they snap in and out
- Food zone is plastic, crevice-free, and easy to wipe clean
- LED status display alerts the operator when cleaning is needed
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 620 lb production/24 hours at 70°/50° (535 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0636HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 620 |
| Also Known As | CIM0636HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0606HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0636HW90 Ice-O-Matic CIM0636HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 620 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $5,073.00 / Each | $5,199.00 / Each | $4,972.00 / Each | $6,000.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Ships in 1 Business Day | Typically ships in 2 - 3 weeks | Typically ships in 4 - 8 Business Days |
| 24 Hr. Production (lb) | 620 | 650 | 603 | 773 |
| Ice Type | Half Cube | Half Cube | Half Cube | Crescent Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 | 30 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 115 |
| Series | Elevation Series™ | Indigo NXT™ | Prodigy ELITE® | KM EDGE X |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
