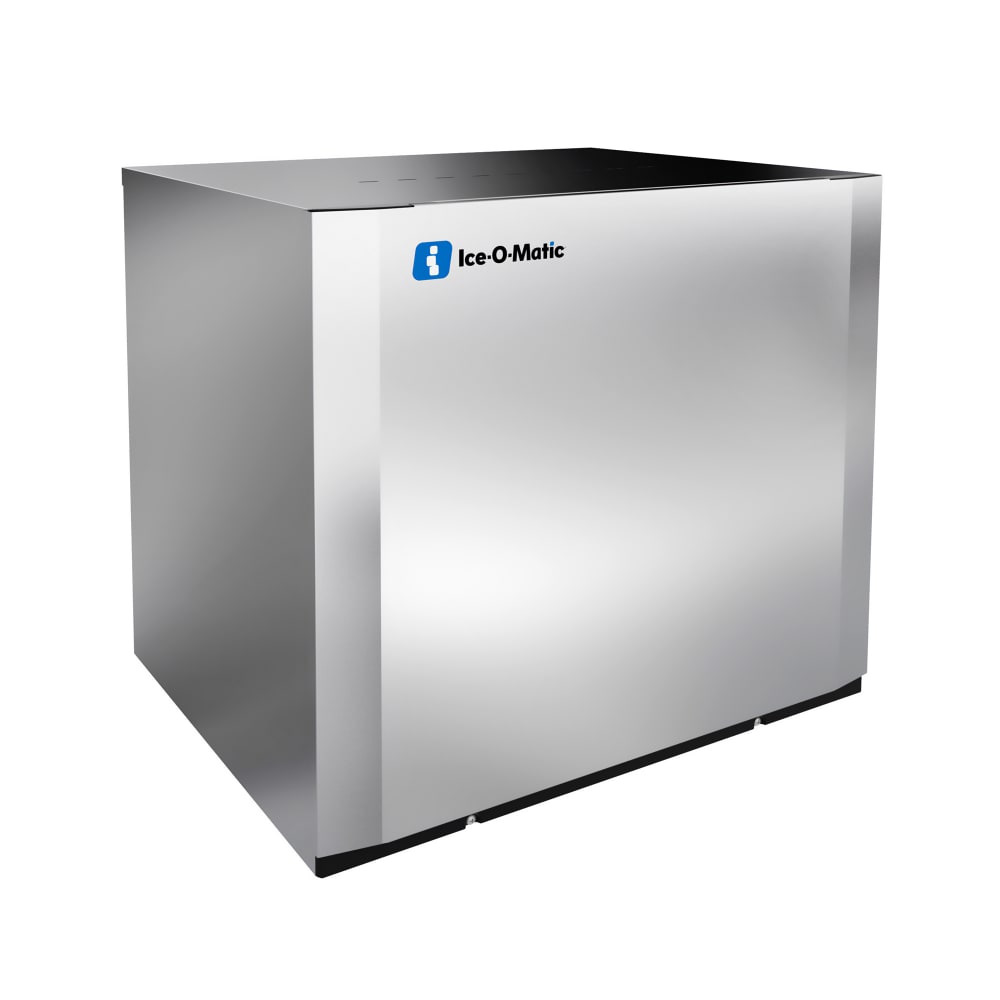

Ice-O-Matic CIM0636FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 620 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$5,226.00 /Each
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0636FW90 Description
The Ice-O-Matic CIM0636FW90 Elevation™ cube ice maker uses a self-contained, water-cooled condenser and R290 refrigerant to produce full-cube ice. Measuring 7⁄8 inch by 7⁄8 inch by 7⁄8 inch, the cubes are perfect for bagged ice, soft drinks, tea, and other beverages. The Universal Smart Harness™ control board simplifies installation and maintenance since it has a common configuration, universal components, and digital diagnostics.
The risk of bacteria growth is reduced with built-in Agion® antimicrobial protection. When cleaning is required, the LED status display alerts the operator, and one-touch controls ease the sanitizing and descaling process. Snapping in and out of place, the dishwasher-safe components in the Ice-O-Matic CIM0636FW90 Elevation cube ice maker are easy to remove and put back in place.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Produces full-size, 7⁄8-in. x 7⁄8-in. x 7⁄8-in. cubes
- Universal Smart Harness control board makes installation and maintenance easy thanks to its common configuration, universal components, and digital diagnostics
- 620-pound production capacity
- Self-contained condenser needs a constant flow of water since it is water cooled
- Maintains cold temperatures with R290 refrigerant
- Plastic parts are BPA-free and recyclable
- 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- LED status display indicates when cleaning is necessary
- Easily clean and maintain the unit with one-touch sanitizing and descaling controls
- Agion antimicrobial protection reduces the risk of bacteria growth
- Food zone is made of plastic and lacks crevices so it is easy to wipe clean
- Components easily snap in and out for cleaning in the dishmachine
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 620 lb production/24 hours at 70°/50° (535 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0636FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 620 |
| Also Known As | CIM0636FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
