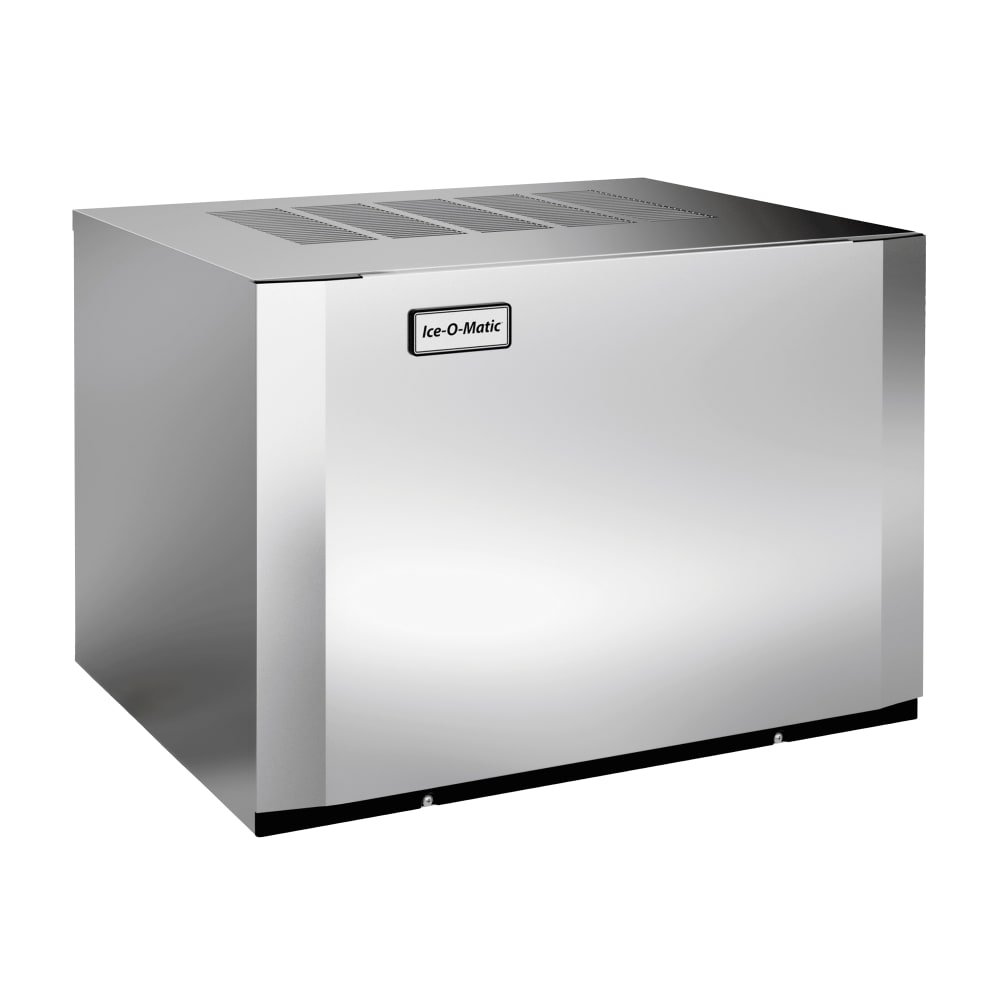

Ice-O-Matic CIM0636FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$4,726.00 /Each
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0636FA90 Description
In a 24-hour period, the Ice-O-Matic CIM0636FA90 Elevation™ modular cube ice maker is capable of creating 600 pounds of full-cube ice that works well in soft drinks, cocktails, and dispensed ice applications. With dual exhaust technology, the unit can discharge hot air from both the side and top to maximize your installation options. The Universal Smart Harness™ control board's universal components, digital diagnostics, and common configuration simplify the installation process and ease servicing.
Agion® antimicrobial protection is built into the food zone's plastic components to inhibit the growth of potentially harmful microorganisms that can cause mold and slime. The Ice-O-Matic CIM0636FA90 Elevation modular cube ice maker has an LED status display to indicate when cleaning is required. When it's time to perform routine cleaning tasks, one-touch descaling and sanitizing controls help make those processes simpler for employees, while the dishwasher-safe components snap in and out of place.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Dispenses full-cube ice that measures 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- 24-hr. production capacity of 600 lbs. in 70 degree F operating temperatures
- Self-contained, air-cooled condenser
- R290 refrigerant
- Discharges hot air from the top or side with a dual exhaust system
- Universal components, digital diagnostics, and a common configuration in the Smart Harness control board simplify installation and cleanup
- BPA-free plastic parts are recyclable
- Operators are alerted to required cleaning by the LED status display
- Sanitizes and descales with one-touch controls
- Food zone components that are dishwasher safe snap in and out of place
- Easily wipe down the plastic food zone since it is made without crevices
- Agion antimicrobial protection reduces the risk of bacteria growth
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Watch a video about this product
Ice-O-Matic CIM0636FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Also Known As | CIM0636FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
- Ice-O-Matic ICE0606FA
- Ice-O-Matic ICE0606FT
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0636FA90 Ice-O-Matic CIM0636FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,726.00 / Each | $4,818.00 / Each | $4,910.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 600 | 662 | 582 |
| Ice Type | Full Cube | Full Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
