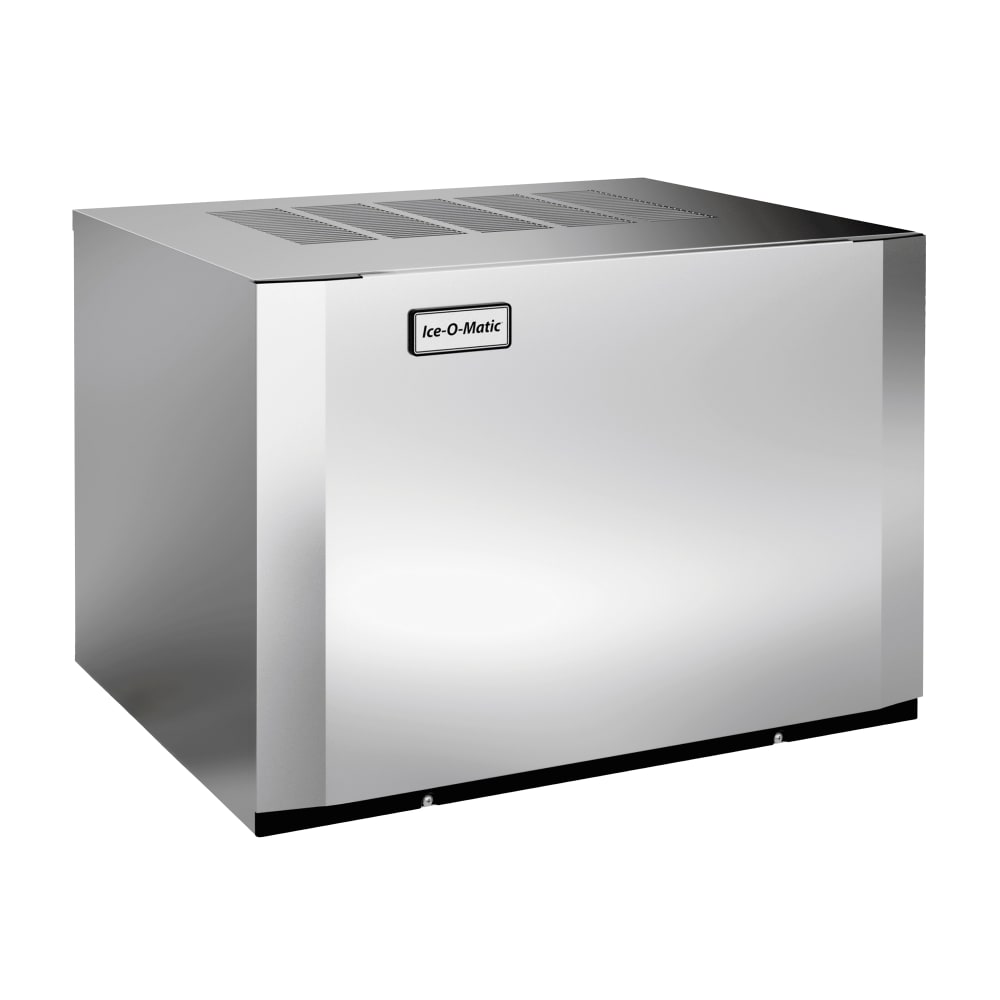

Ice-O-Matic CIM0430FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,891.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0430FA90 Description
The Ice-O-Matic CIM0430FA Elevation™ modular cube ice maker uses a self-contained, air-cooled condenser and R-404A refrigerant to produce up to 500 pounds of full-cube ice each day. This type of ice measures 7⁄8 inch by 7⁄8 by 7⁄8 inch and is a popular choice for serving soft drinks and water. To increase your installation options, the hot air can be discharged from the top or side of the unit. This ice maker is designed to be easy to install and service because the Universal Smart Harness™ control board offers digital diagnostics, universal components, and better access.
The Agion® antimicrobial protection slows the growth of bacteria in the plastic food zone, which lacks crevices to allow employees to quickly wipe it down. Components in this area are also easy to remove for dishwasher cleanup since they snap in and out. When cleaning is required, an LED status display alerts the operator. This routine maintenance can be done more efficiently with one-touch controls for sanitizing and descaling the Ice-O-Matic CIM0430FA Elevation modular cube ice maker.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Produces full-cube, 7⁄8 in. x 7⁄8 in. x 7⁄8 in. ice
- Universal Smart Harness control board makes it easy to install and service the ice maker with universal components, digital diagnostics, and a common configuration
- Dual exhaust design discharges hot air from the top or side to increase installation options
- Uses a self-contained, air-cooled condenser
- R404A refrigerant efficiently cools temperatures
- Plastic parts can be recycled and are BPA free
- LED status display indicates required cleaning times
- Sanitizing and descaling are easy with one-touch controls
- Agion antimicrobial protection limits bacteria growth
- Food zone is made of plastic, free of crevices, and easy to wipe clean
- Components snap in and out so they can be cleaned in the dishwasher
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 11 A, 5.43 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Watch a video about this product
Ice-O-Matic CIM0430FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 435 |
| Also Known As | CIM0430FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
